- Max Turning Length 400mm
- Max. Bar Capacity 45mm
- GSK CNC System
- 45-degree Inclined Bed Saddle Structure
- High Rigidity, Low Vibration Design
Item | Specification |
Maximum Workpiece Swing Diameter on Bed | Φ400mm |
Maximum Workpiece Swing Diameter on Slide | Φ126mm |
Maximum Machining Length | 350mm |
Maximum Bar Diameter (Through Spindle Hole) | Φ36mm |

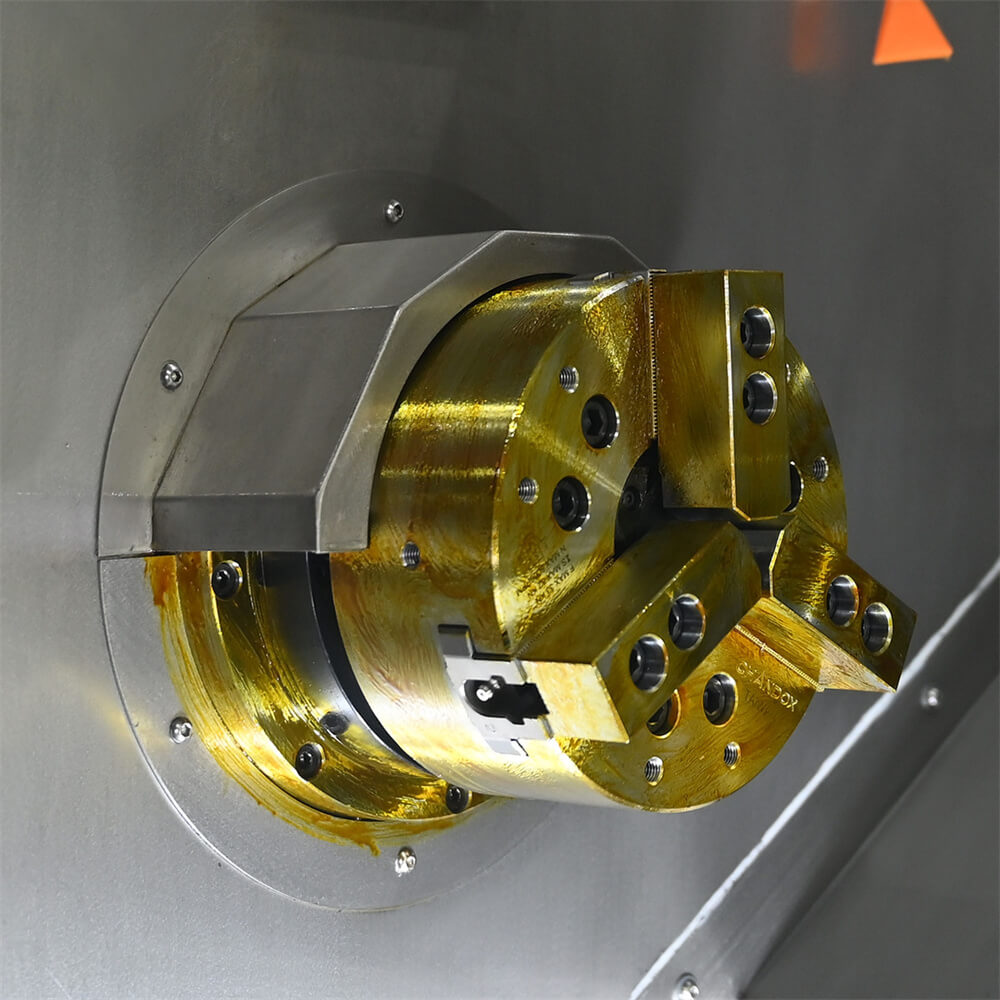

Workpiece Clamping Method | Hydraulic Collet |
Spindle Speed Range | 100-4000rpm/min (Precision Spindle Unit) |
Spindle Head Type | ISO A2-5 |
Main Motor Power | 5.5Kw |
X/Z Axis Drive Motor Torque | 7 / 7 NM |
Bed Structure | 45° Integral |
X-Axis Travel | 750mm |
Z-Axis Travel | 400mm |
X/Z Axis Rapid Traverse Speed | 24(3210) / 24(3210) M/Min |

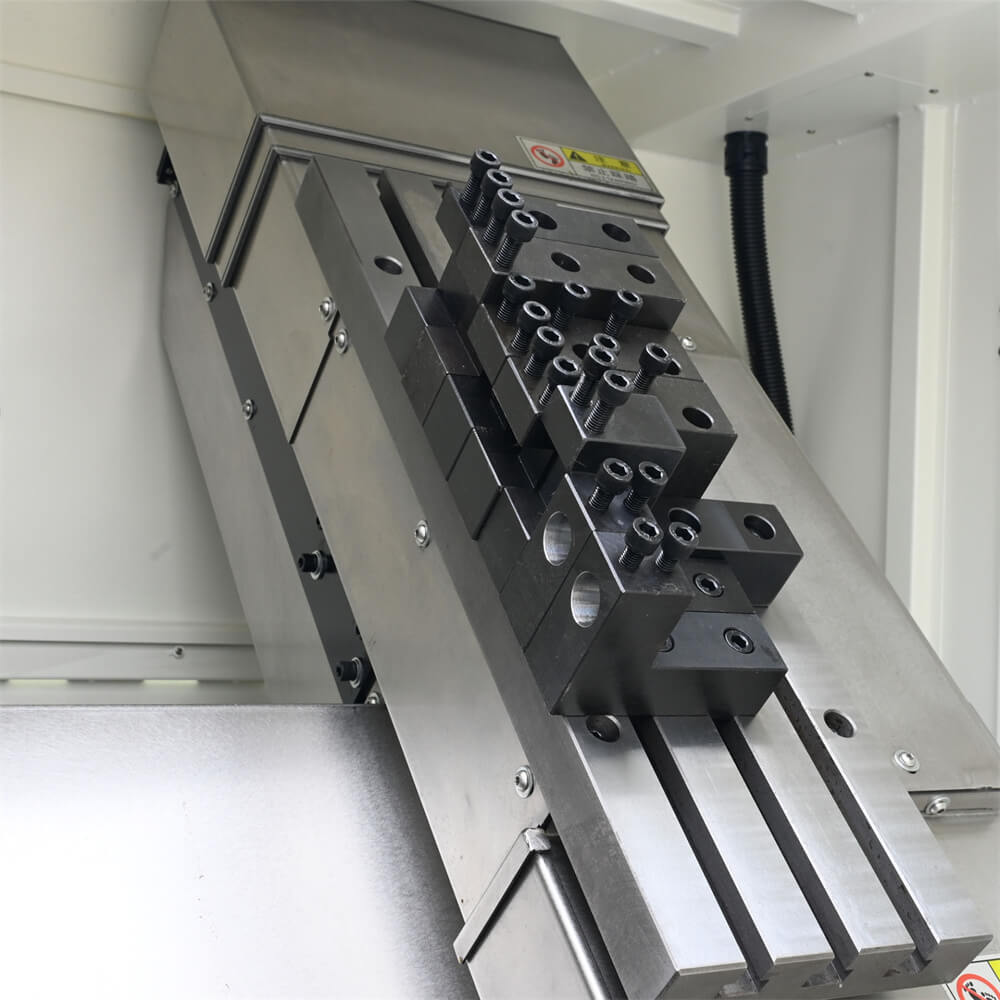

Tool Holder Type | Gang Tool |
Maximum Tool Capacity | 7-Position |
Tool Size | 20 x 20mm |
Repeat Positioning Accuracy (X-axis) | 0.003mm |
Repeat Positioning Accuracy (Z-axis) | 0.003mm |
Dimensions (LxWxH) | |
Height from Floor to Spindle Center | 990mm |
Total Weight | Approx. 2200kg |
Standard Accessories | |
Item | Specification |
CNC System | GSK980TC3 |
Main Motor | GSK 5.5 kW |
X-axis Motor | GSK 1.3 kW |
Z-axis Motor | GSK 1.3 kW |
X-axis Ball Screw | THK 3210 |
Z-axis Ball Screw | THK 3210 |
X-axis Guideway | Hiwin 30mm Roller |
Z-axis Guideway | Hiwin 30mm Roller |
Coolant Pump | |
Lubrication System | |
Optional Accessories | |
Chip Conveyor | Rear Discharge Only |
