- 1020mm of Max. Turning Length
- Dia.520mm of Max Turning Diameter
- Spindle Bore Dia.86mm
- High Rigidity, Low Vibration Design
- With Taiwan Servo Turret
- Available with Programmable Hydraulic Tailstock
| Project | Name | Parameter |
| Processing Range | Maximum Turning Diameter (Bed) | Φ620 mm |
| Maximum Processing Diameter (Disc) | Φ520 mm | |
| Maximum Processing Diameter (Shaft) | Φ350 mm | |
| Maximum Workpiece Length | 1020 mm | |
| Maximum Bar Through-hole Diameter | Φ75 mm | |
| Distance Between Centers | 1050 mm | |
| Travel and Fastest Feed | X-axis Effective Travel | 300 mm |
| Z-axis Effective Travel | 1100 mm | |
| X, Z-axis Rapid Traverse | 20 (M/Min) | |
| X, Z-axis Servo Motor | 18/18 Nm | |
| Spindle | Spindle Nose Type | A2-8 |
| Spindle Through-hole Diameter | Φ86 mm | |
| Maximum Spindle Speed | 3000 rpm | |
| Spindle Motor Power | 18.5 Kw | |
| Chuck and Rotary Cylinder Spec | 10 inches | |
| Processing Accuracy | X, Z-axis Positioning Accuracy | ±0.004mm |
| X, Z-axis Re-positioning Accuracy | ±0.002mm | |
| Hydraulic Tailstock | Tailstock Sleeve Specification | MT-6 |
| Tailstock Sleeve Travel | 120mm | |
| Tailstock Movement | Saddle Driven, Hydraulic Lock | |

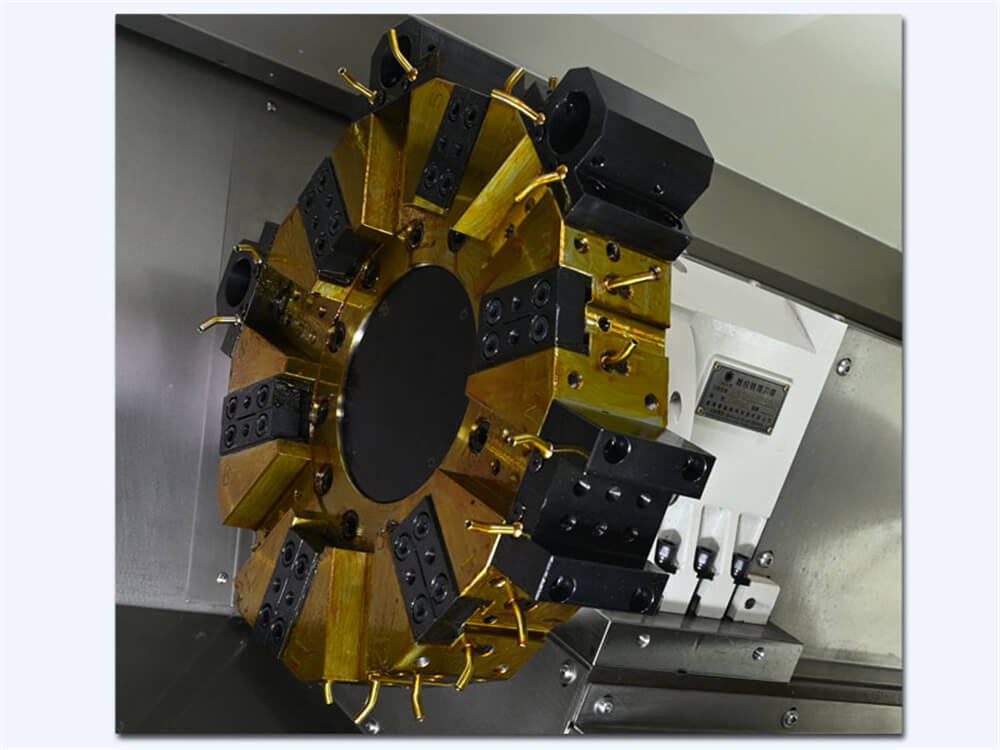

| Servo Turret | Tool Holder Specification | □32*32 |
| Tool Disc Diameter | Φ500mm | |
| Boring Bar Specification | Φ50mm | |
| Turret | 125mm Center Height, 12 Positions | |
| Others | Bed Structure Type | 30°Integral Slant Bed |
| Dimensions (L×W×H) | 3220*1910*1850 mm | |
| Weight | 6300 kg |
| Standard Accessory | Remarks | Optional Accessories |

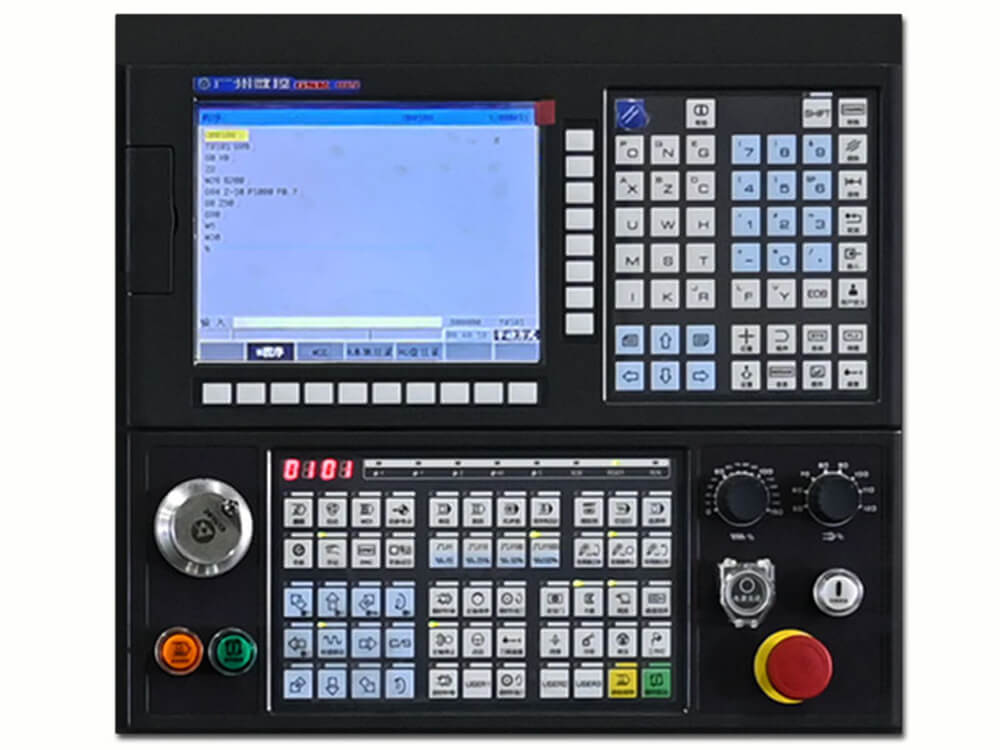

| CNC System | GSK 988TA | Control & Drive/Electrical |
| Servo Main Motor | GSK | Hydraulic System/Spindle/Tool Post |
| X, Z-axis Servo Motors | GSk 18NM | Automatic Chip Conveyor |
| Spindle | Oil Bath Automatic Feeder | |
| Spindle Bearings | Automatic Receiver | |
| Ball Screw Bearings | NACHI | Single-Part Automatic Feeder |
| Linear Guides |
X Axis: 45 Roller Z Axis: 45 Roller |
Robotic Arm |
| Ball Screws |
X Axis: 4010 Z Axis: 4010 |
Tool Post |
| Hollow Rotary Cylinder | Power System | |
| Hollow Hydraulic Chuck | ||
| Servo Turret | ||
| Automatic Lubrication System | ||
| Cooling System | ||
| Heat Exchanger | ||
| Alarm Light | ||
| Electrical Components | ||
| Technical Manual |
