- Fully Enclosed Protective Cover

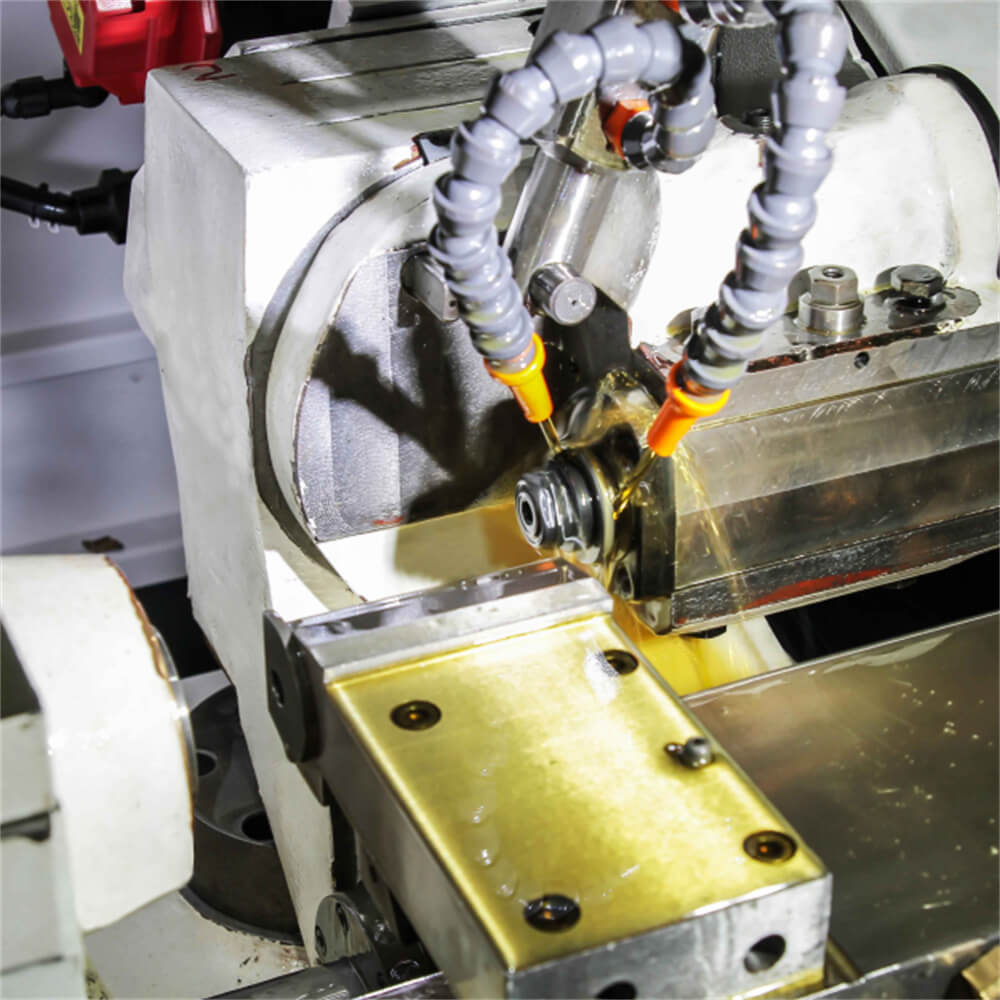

- Tool Holder Rotational Angle of ±30°
- Precision Ball Screw and Hand-Scraped Guideways
- 3-Axis Control with 3-Axis Simultaneous Motion

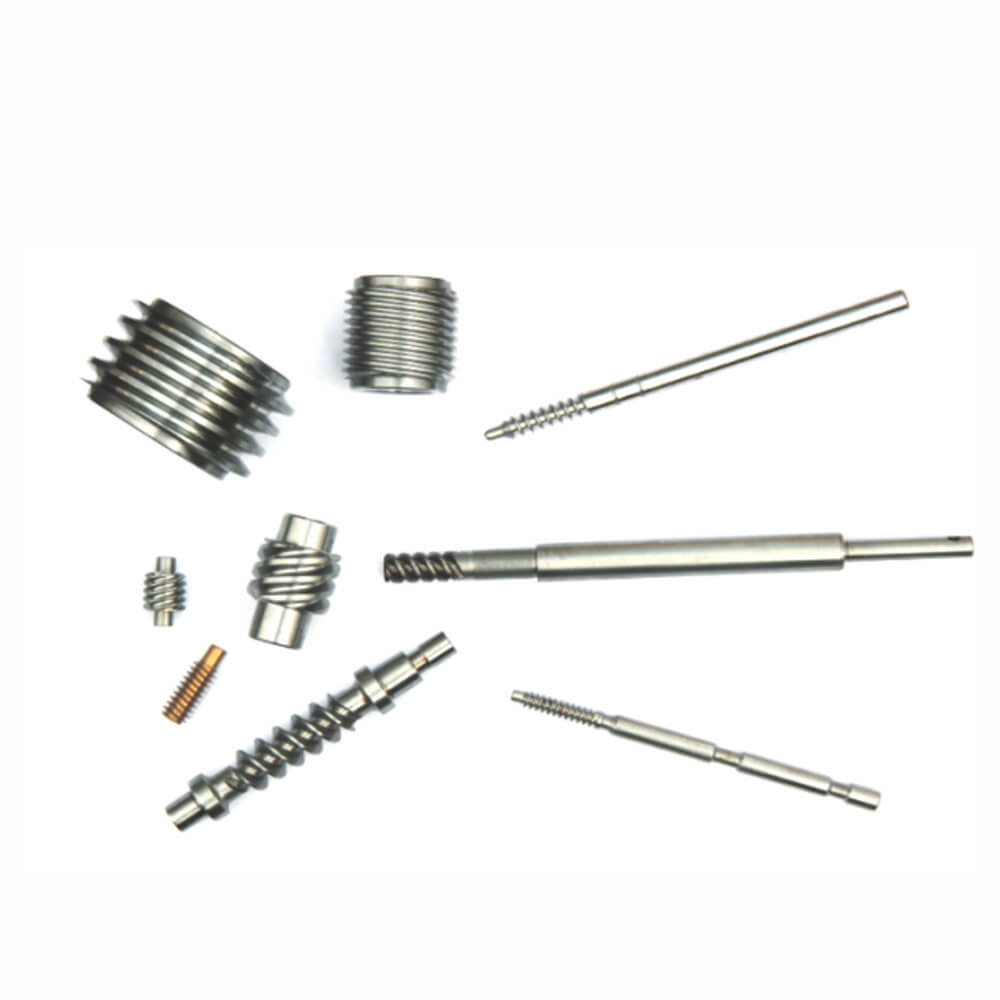

- Processing of Single-Head or Multi-Head Small Worms and Screws
| Item | Specification / Unit |
| Maximum Workpiece Diameter | 60 mm |
| Maximum Workpiece Module | 2.5 mm |
| Maximum Stroke of Z Axis | Milling Length without Tailstock: 150 mm |
| Milling Length with Tailstock: 100 mm | |
| Maximum Stroke of X Axis | 45 mm |
| Range of Worm Gear Teeth to be Machined | 1 to 20 |
| Milling Cutter Rotatable Angle | ±30 Degrees |
| Milling Cutter Diameter | ∅63 to ∅80 mm |
| Milling Cutter Shank Size | ∅22 mm |
| Rapid Traverse Speed of X and Z Axis | 6 m/min |
| Tailstock Stroke | 70 mm |
| Workpiece Axis | Rated Torque: 12 N·m |
| Maximum Speed: 200 r/min | |
| Milling Spindle | Rated Torque: 12 N·m |
| Maximum Speed: 3000 r/min | |
| X Axis Servo Motor | Rated Torque: 3.5 N·m |
| Z Axis Servo Motor | Rated Torque: 8 N·m |
| Machine Power Supply Capacity | 10 KVA |
| Main Machine Dimensions (L × W × H) | 2380 × 2100 × 2110 mm |
| Standard Accessories | Optional Accessories | ||
| 1 unit SK6506 Main Machine | 1 ∅12mm Milling Cutter Shaft | For mounting disc milling cutters with a ∅12mm inner hole diameter | |
| 1 piece Tailstock Center | Installed on the main machine | 2 ∅16mm Milling Cutter Shaft | For mounting disc milling cutters with a ∅16mm inner hole diameter |
| 1 set ∅22mm Milling Cutter Shaft | Installed on the main machine | 3 ∅27mm Milling Cutter Shaft | For mounting disc milling cutters with a ∅27mm inner hole diameter |
| 1 set Standard Collet Seat Assembly | Installed on the main machine | 4 Oil Mist Separator | For handling oil mist generated during cutting |
| 1 set Machine Lighting Lamp | Installed on the main machine | 5 Long Collet Seat Assembly | For clamping shafts with a diameter of ∅3–∅17mm |
| 1 set LED Signal Light | Installed on the main machine | 6 Short Collet Seat Assembly | For clamping shafts with a diameter of ∅3–∅17mm |
| 1 set Magnetic Chip Conveyor | For use with magnetic materials only | 7 Spring Collet Assembly | Includes internal center; for clamping diameters of ∅3–∅17mm |
| 1 set Hydraulic Station | Installed on the main machine | 8 Pointed Collet Assembly | Includes internal center; for clamping diameters of ∅3–∅14mm |
| 4 pieces Wedge | 9 Rotating Dome Center Assembly | Allows for rotation with the workpiece | |
| 4 pieces Leveling Screws | 10 Driver Type Double Top Fixture | For shaft tooth processing; clamping diameters of ∅17–∅35mm | |
| 4 pieces Hex Thin Nuts | 11 Magnetic Scraper Chip Conveyor | For magnetic and non-magnetic chips | |
| Tools Included with the Machine | 12 Truss Type Automatic Loading and Unloading Device | Chain type for loading; conveyor belt type for unloading; customized according to user workpieces | |
| Technical Document | 13 Pneumatic Automatic Door | For automatic opening and closing of the main sliding door; required if user installs external automatic loading and unloading devices | |
| 14 Air Conditioner | For regulating electrical cabinet temperature | ||
| 15 Automatic Loading and Unloading Interface | For user to connect with third-party loading and unloading systems |
