Item
|
Specification
|
|
Travel |
|
|
X Axis (Left-Right Travel) |
700mm
|
|
Y Axis (Front-Back Travel) |
400mm
|
|
Z Axis (Up-Down Travel) |
350mm
|
|
Distance from Spindle Center to Column Guide Rail |
445mm
|
|
Distance from Spindle Face to Worktable Surface |
145-495mm
|
|
Worktable |
|
|
Worktable Size |
800×420mm
|
|
T-Slot (Number × Size × Pitch) |
3×14×125
|
|
Max Worktable Load |
300kg
|
|
Spindle |
|
|
Spindle Taper (Model/Installation Size) |
BT30
|
|
Spindle Speed |
20000 direct drive rpm
|
|
Motor |
|
|
Spindle Motor |
5.5Kw
|
|
X Axis Motor |
1.5Kw
|
|
Y Axis Motor |
1.5Kw
|
|
Z Axis Motor |
3Kw
|
|

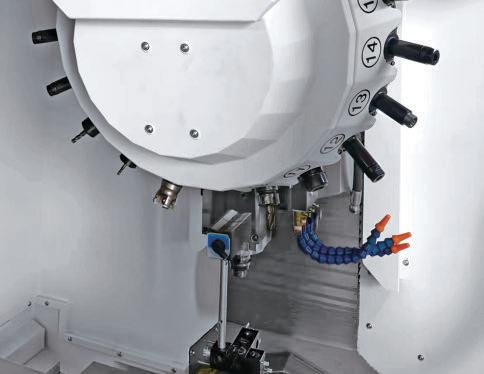

Automatic Tool Change System |
|
|
Tool Magazine Type |
Disc-type tool magazine
|
|
Tool Magazine Capacity |
21 positions
|
|
Tool holder specification
|
BT30
|
|
Max Tool Length |
200mm
|
|
Max Tool Weight |
3kg
|
|
Tool Holder Drawbar Specification |
45° |
|
Feed Rate |
|
|
Max Cutting Feed Rate (Three Axes) |
10m/min
|
|
Rapid Movement (Three Axes) |
48/48/48m/min
|
|

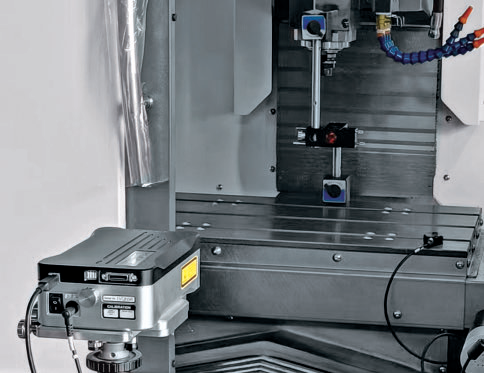

Accuracy |
|
|
Positioning Accuracy |
±0.005mm
|
|
Repositioning Accuracy |
±0.003mm
|
|
Others
|
|
|
Machine Weight |
2600kg
|
|
Machine Dimensions (L/W/H) |
1.9 / 2.2 / 2.5m
|
|
Power Capacity |
12Kw
|
