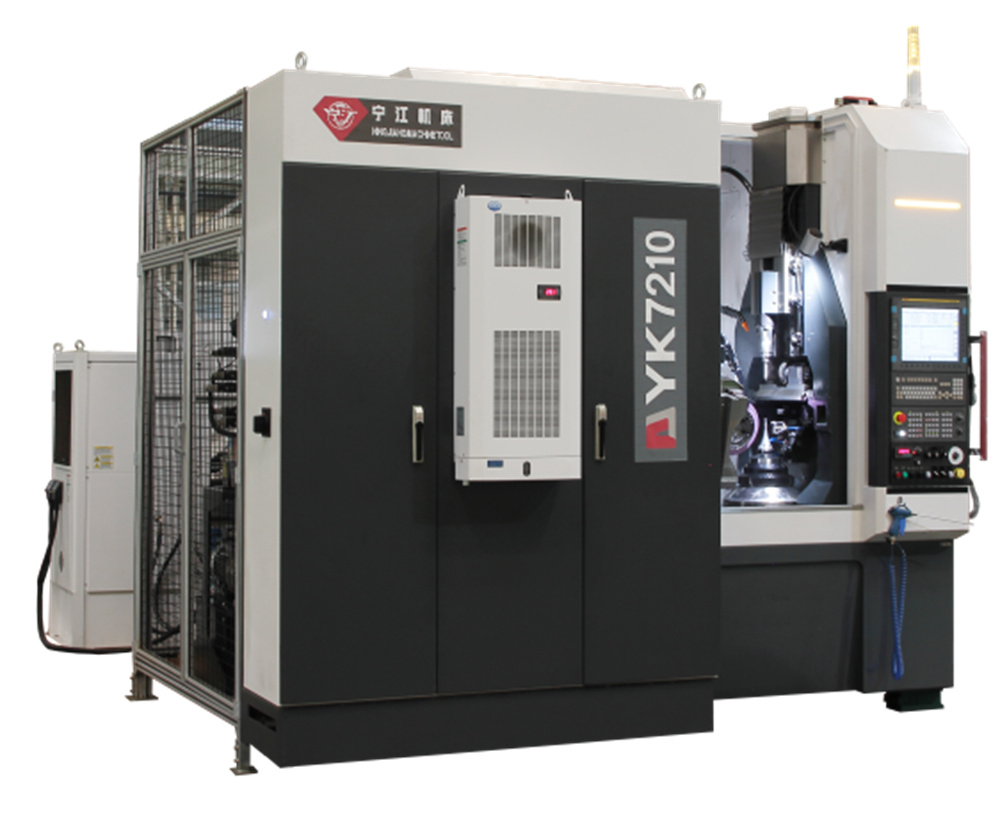

YK7210 CNC Gear Grinding Machine

- 8-Axis Control with 5-Axis Simultaneous Motion

- Automatic Intermittent Lubrication System

- Workpiece Spindle Max Speed 2000rpm

- Japanese Imported Motorized Spindle

- Precision, Efficiency, and High Rigidity

Item	Specification (Unit)
Maximum Workpiece Diameter	∅100 mm
Workpiece Modulus	0.5～2 mm
Maximum Stroke of X Axis	270 (100-370) mm
Maximum Stroke of Y Axis	190 (0-190) mm
Maximum Stroke of Z Axis	300 (150-450) mm
Maximum Stroke of Z1 Axis	350 (475～825) mm
Wheel Frame Rotational Angle	±45 degrees
Maximum Wheel Specification	∅275×∅160×125 mm
Rapid Movement Speed of X, Y, Z Axes	10 m/min
Workpiece Spindle	Rated Power: 15 KW
	Rated Torque: 119 N.m
	Max Speed: 2000 r/min
Wheel Spindle	Rated Power: 25 KW
	Rated Torque: 119 N.m
	Max Speed: 7000 r/min
X Axis Servo Motor	Rated Power: 4 KW
	Rated Torque: 22 N.m
Y Axis Servo Motor	Rated Power: 2.3 KW
	Rated Torque: 8 N.m
Z Axis Servo Motor	Rated Power: 4 KW
	Rated Torque: 22 N.m
A Axis Servo Motor	Rated Power: 2.3 KW
	Rated Torque: 8 N.m
Trimmer Outer Diameter	∅110 mm
Max Speed of Wheel Trimmer	1500～6000 r/min
Machine Dimensions	3700×4120×3180 mm
Total Power of Machine	70 KVA
Machine Weight	12000 Kg
