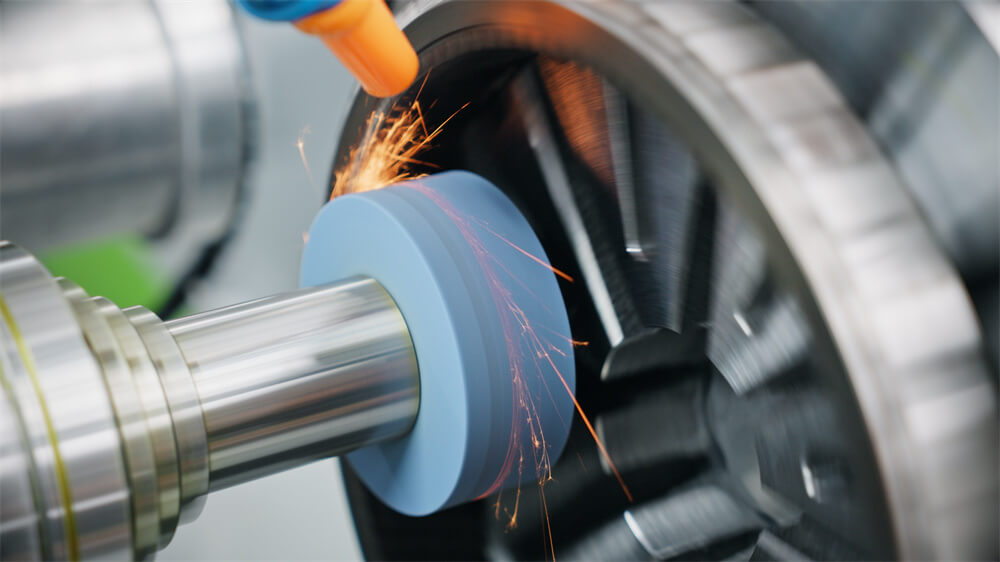

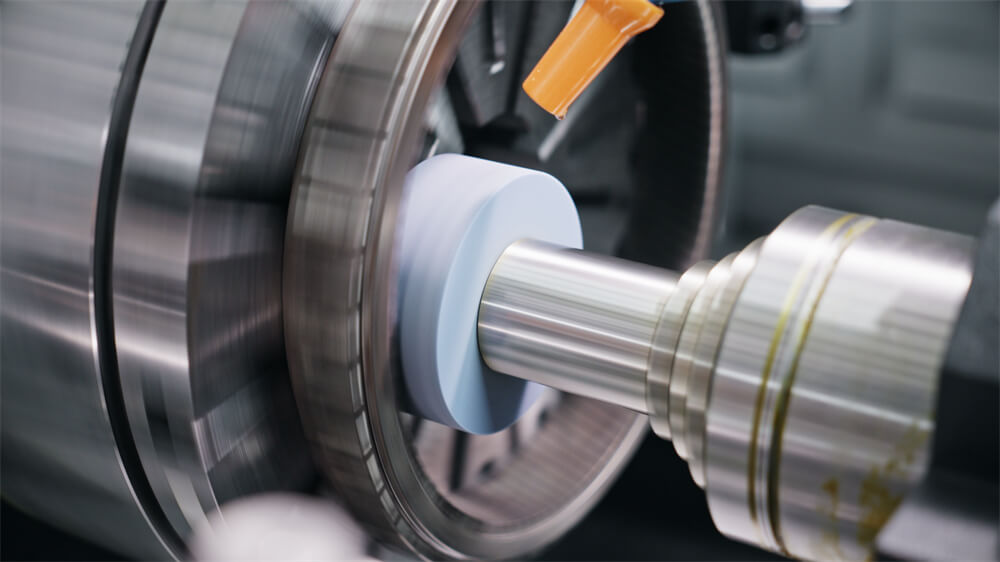

- External & Internal Grinding Wheel

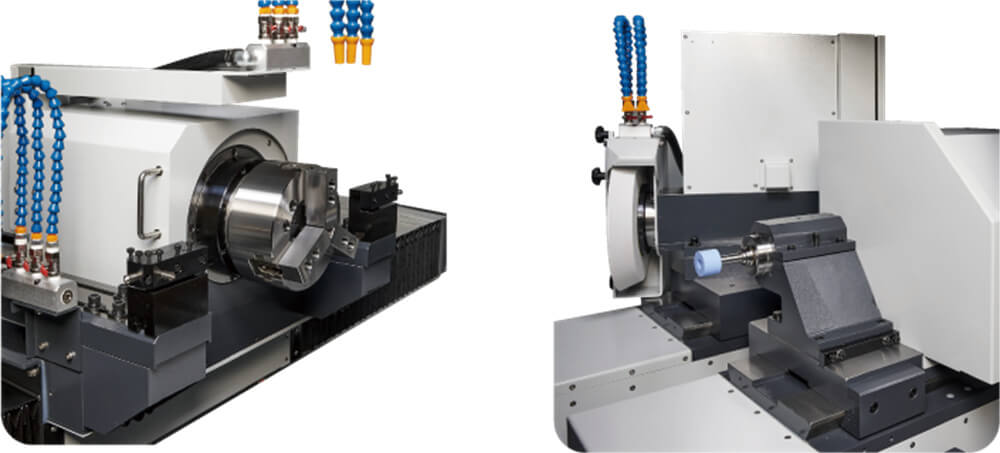

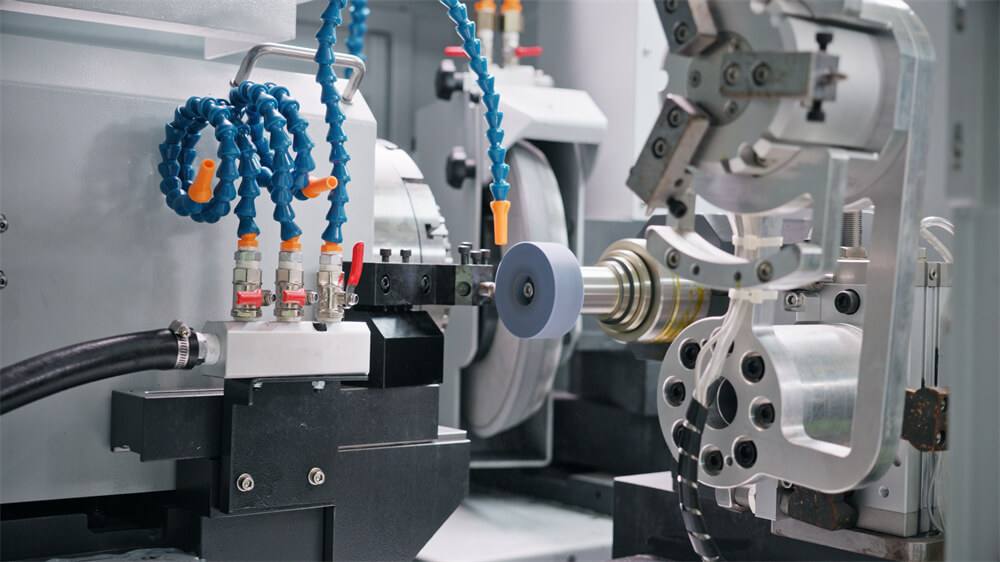

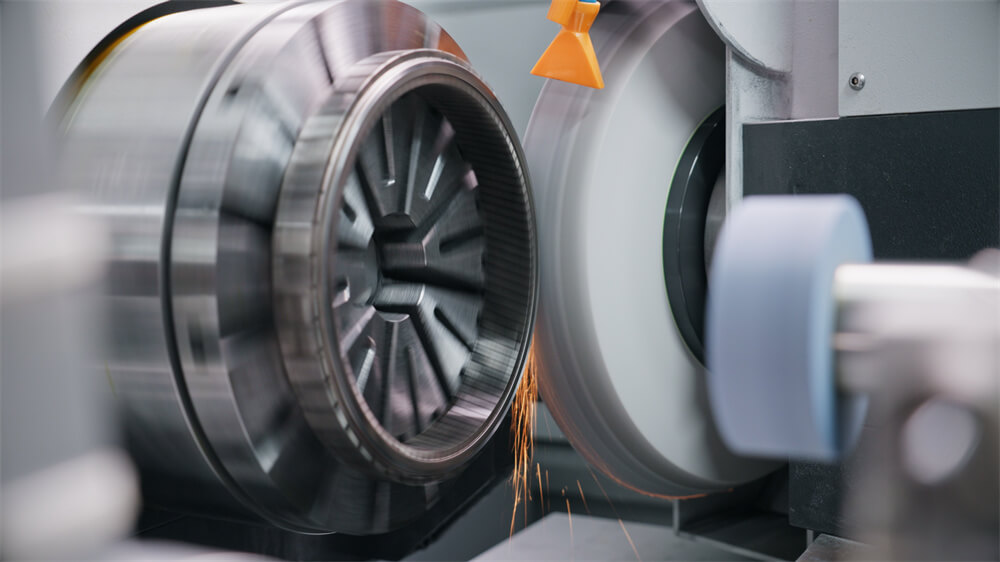

- End Face Grinding Head
- Fully Enclosed Protective Cover

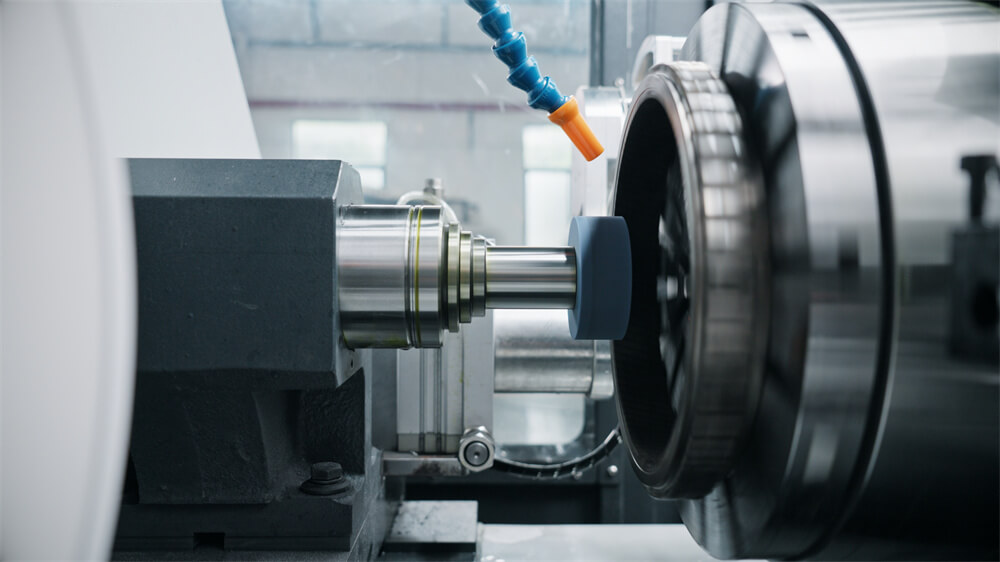

- Optional Dual-Axis Internal Grinding Wheel & One External Grinding Wheel

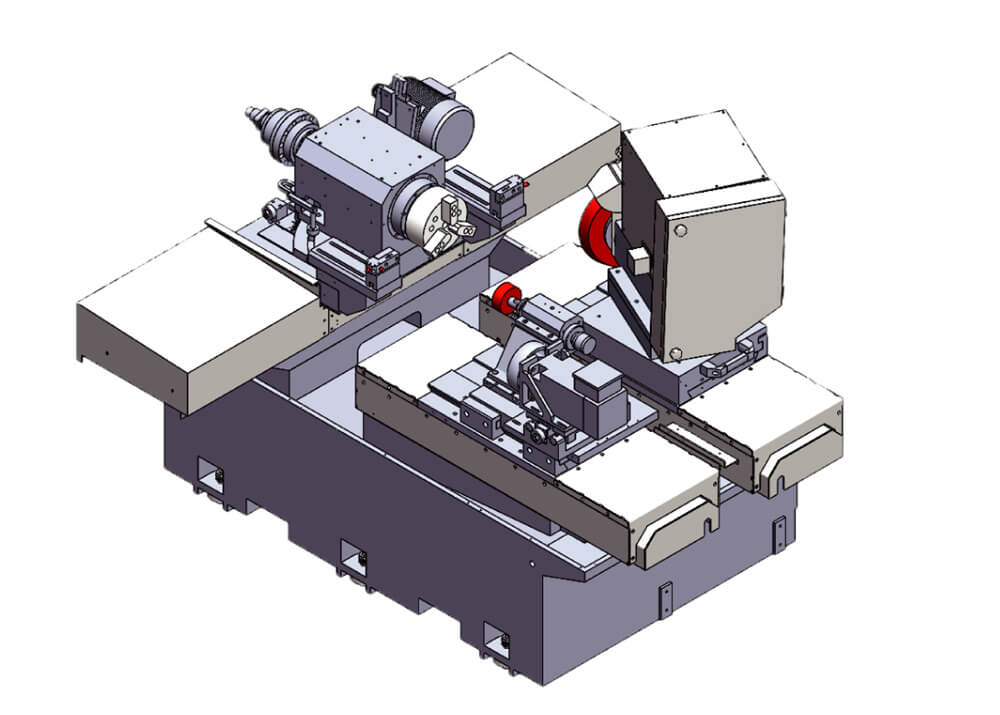

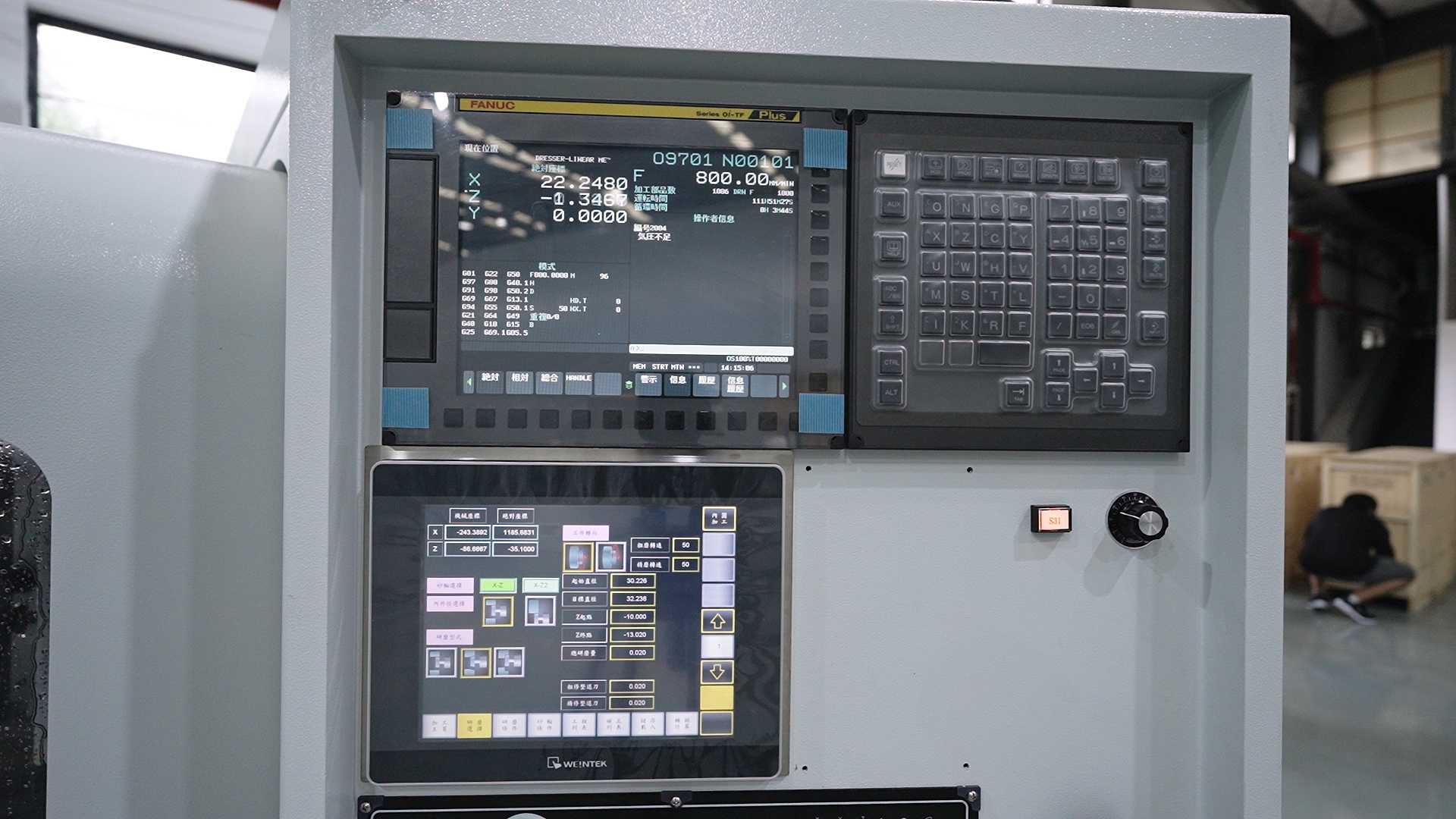

| GN-150A | |
| Processing capacity | |
| Range of grinding diameter | 4~320mm |
| Max. Grinding depth | 200mm |
| Max. swing diameter of workpiece | 435mm |
| Inner swing diameter of waterproof cover | 400mm |
| Control System | |
| Controller | FANUC/0i-TF |
| Work Head | |
| Spindle speed | 0~1000rpm |
| X-axis feed rate/ Max. travel | 10M/min/350mm |
| Min. displayed unit of X-axis | 0.0001mm |
| Rotation angle of working head | -5 °~+15° |
| Table | |
| Feed rate of Z axis | 10M/min |
| Max. travel of Z axis | 345+200mm |
| Min. displayed unit of Z-axis | 0.0001mm |
| Height of working spindle center from ground | 1100mm |
| Oil pressure system | |
| Oil tank capacity | 30L |
| Cooling System | |
| Cutting fluid tank capacity | 260L |
| Drive motor | |
| Oil pressure motor | 0.75Kw(1HP) |
| Cutting fluid motor | 0.18Kw(1/4 HP) |
| X-,Y- and Z-axis servo motor | X:1.2 Kw/Y:1.6 Kw/Z:1.2Kw |
| Grinding wheel motor(Kw) | 4HP |
| Spindle head motor | 2.2·4P(3HP) |
| Others | |
| %0 |
| Configuration: |
| 1.1 Full-coverage guard |
| 1.2 Electrical cabinet heat exchanger |
| 1.3 Automatic lubrication system |
| 1.4 Magnetic filter + water tank |
| 1.5 Work light, three-color warning light |
| 1.6 Foundation bolts and machine leveling pads |
| 1.7 Tool box and tools |
| 1.8 Spindle coolant spray |
| 1.9 Machine, electrical, and operation manuals |
| 1.10 2 diamond pens (single-point) |
| 1.11 Transformer with voltage stabilization |
| 1.12 10m power cable |
| Optional Equipment: |
| 2.1 Oil mist recovery unit |
| 2.2 Oil-water separator |
| 2.3 Power dressing system (including metal grinding wheel) |
| 2.4 Water tank temperature control device |
| 2.5 X and Z-axis optical scales (Fagor or Heidenhain) |
