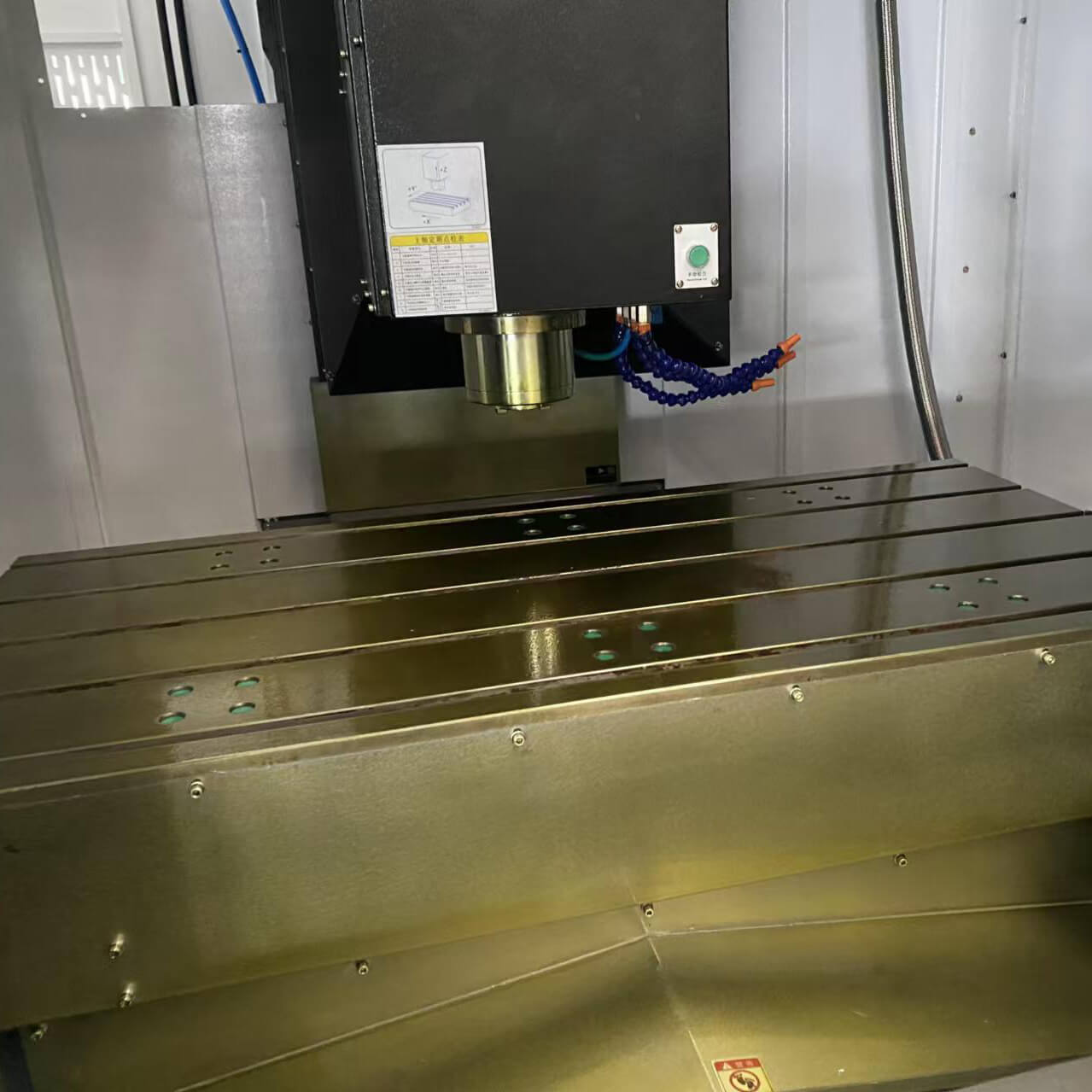

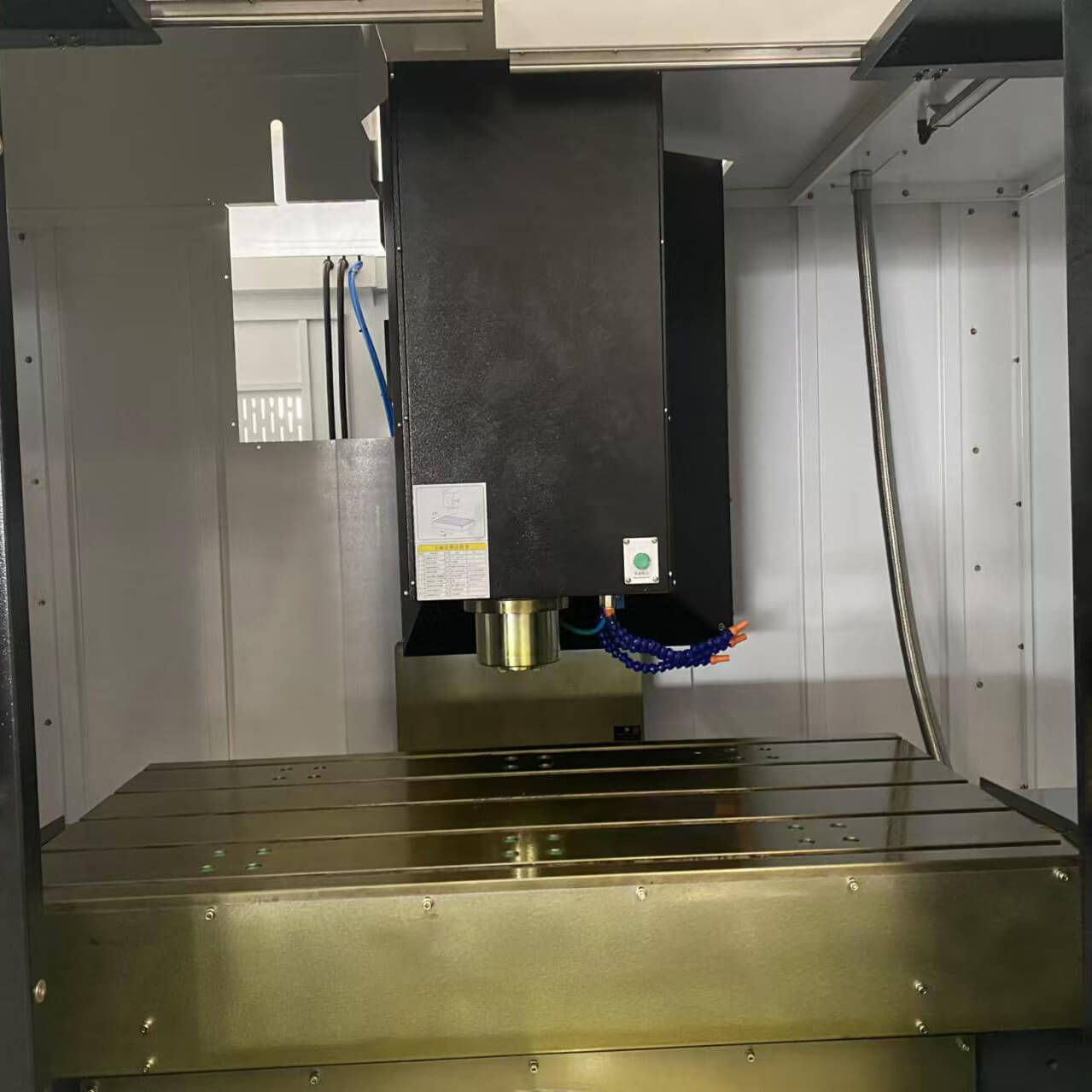

- High-Speed Spindle
- Extra-large span base
- Excellent Transmission Rigidity
- HT300 high-strength inoculatted cast iron
- Finite Element analysis system for simulated and optimized design
| Name | Parameter |
| Travel | |
| Three axis travel | 1200/700/670mm |
| Distance from spindle end face to worktable center | 150-820 mm |
| Worktable | |
| Worktable Size(L*W) | 1400×700 |
| Maximum load-bearing capacity | 1000kg |
| T-shaped slot (quantity × width× spacing) | 5×18×150 mm |
| Spindle | |
| Spindle diameter Spindle bore taper | φ150/ BT40 |
| Max spindle speed | 12000 rpm |
| Motor power | 11/18.5 kW |
| Feed | |
| Three axis fast moving speed （X/Y/Z） | 30/30/30 m/min |
| Three axis feed speed （X/Y/Z） | 10/10/10 m/min |
| Tool Magazine | |
| Magazine capacity | 24 |
| Max tool diameter/length/weight | φ75mm/300mm/7kg |
| Maximum tool diameter (full tool/adjacent empty tool) | 75/150 mm |
| Tool exchange time (T-T) | 1.8s |
| Accuracy | |
| (X/Y/Z) Positioning accuracy | 0.010 mm |
| (X/Y/Z) repositioning accuracy | 0.006 mm |
| Others | |
| Air source/pressure | 280L/min 6~8bar |
| Total electrical capacity | 25kVA |
| Tank volume | 420L |
| Machine size (X×Y×Z) | 3500×3600×3250 mm |
| Estimated weight | 8200kg |
| Standrad Accessories | Optional accessories |
| 1. FANUC 0i MF CNC | Oil Mist Collector |
| 2. Hand held operation unit | Oil skimmer (Electric） |
| 3. Clamp-arm tool magazine | Safety Door Grating |
| 4. Automatic lubrication system | Automatic Safety Door |
| 5. Three-color light | Wireless Handwheel |
| 6. Air curtain protection | Electric Cabinet AC |
| 7. Spindle air blowing device | Simple Spindle Ring Spray |
| 8. Working light | 4 Axis Rotation Table |
| 9. Relevant accessories | 5 Axis Rotation Table |
| 10. Set of standard technical documents | Tool Magazine Inverter |
