- 45-degree inclined bed saddle structure
- Bar Work Capacity Dia.45mm
- 430mm of Max. Turning Length
- High Rigidity, Low Vibration Design

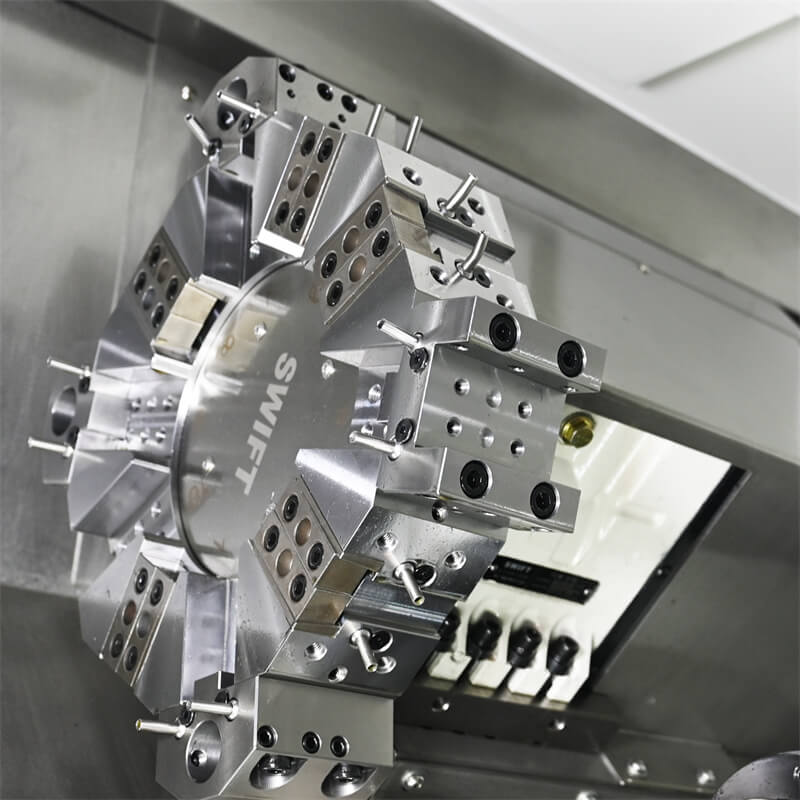

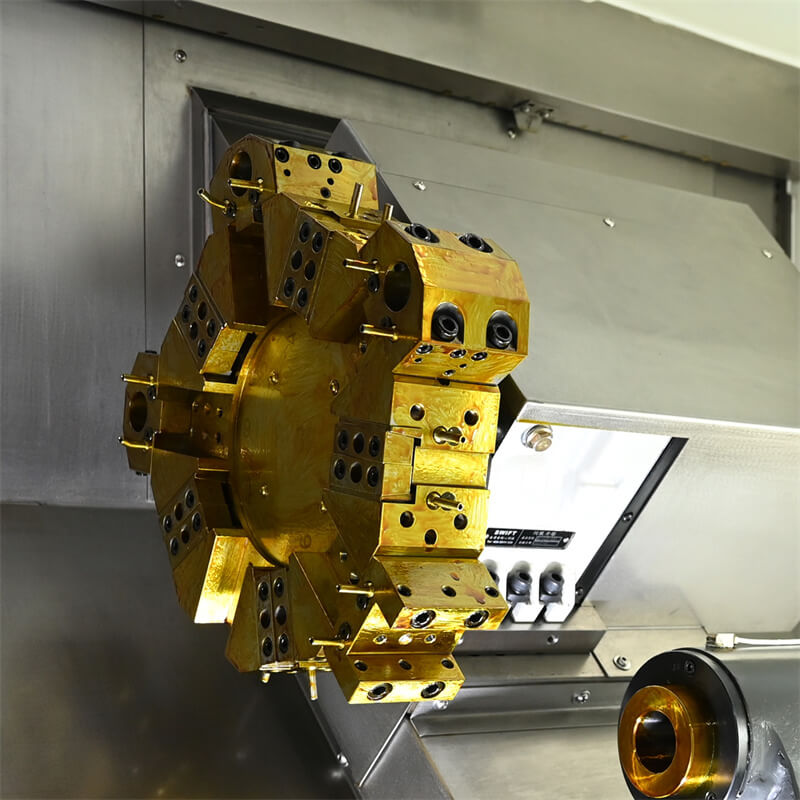

- With Taiwan Servo Turret
- Available with Programmable Hydraulic Tailstock
| Project | Name | Parameter |
| Processing Range | Maximum Turning Diameter (Bed) | Φ500 mm |
| Maximum Processing Diameter (Disc) | Φ400 mm | |
| Maximum Processing Diameter (Shaft) | Φ250 mm | |
| Maximum Workpiece Length | 430 mm | |
| Maximum Bar Through-hole Diameter | Φ45 mm | |
| Distance Between Centers | 500 mm | |
| Travel and Fastest Feed | X-axis Effective Travel | 210 mm |
| Z-axis Effective Travel | 480 mm | |
| X, Z-axis Rapid Traverse | 20 (M/Min) | |
| X, Z-axis Servo Motor | 15/15 Nm | |
| Spindle | Spindle Nose Type | A2-5 |
| Spindle Through-hole Diameter | Φ56 mm | |
| Maximum Spindle Speed | 6000 rpm | |
| Spindle Motor Power | 7.5 Kw | |
| Chuck and Rotary Cylinder Spec | 6 inches | |
| Processing Accuracy | X, Z-axis Positioning Accuracy | ±0.005mm |
| X, Z-axis Re-positioning Accuracy | ±0.003mm | |
| Hydraulic Tailstock | Tailstock Sleeve Specification | MT-5 |
| Tailstock Sleeve Travel | 100mm | |
| Tailstock Pressure Range | 8～25 Pa | |
| Tailstock Movement | Saddle Driven, Hydraulic Lock | |
| Servo Turret | Tool Holder Specification | □25*25 |
| Boring Bar Specification | Φ32 | |
| Turret | 80mm Center Height, 10 Positions | |
| Others | Bed Structure Type | 45°Integral Slant Bed |
| Dimensions (L×W×H) | 2400*1580*1730 mm | |
| Weight | 3100 kg |
| Standard Accessory | Remarks |
| CNC System | GSK 988TA |
| Servo Main Motor | GSK 7.5kw |
| X, Z-axis Servo Motors | GSk 15NM |
| Spindle | |
| Spindle Bearings | |
| Ball Screw Bearings | |
| Linear Guides |
X Axis: 35 Roller Z Axis: 35 Roller |
| Ball Screws |
X Axis:3210 Z Axis: 3210 |
| Hollow Rotary Cylinder | |

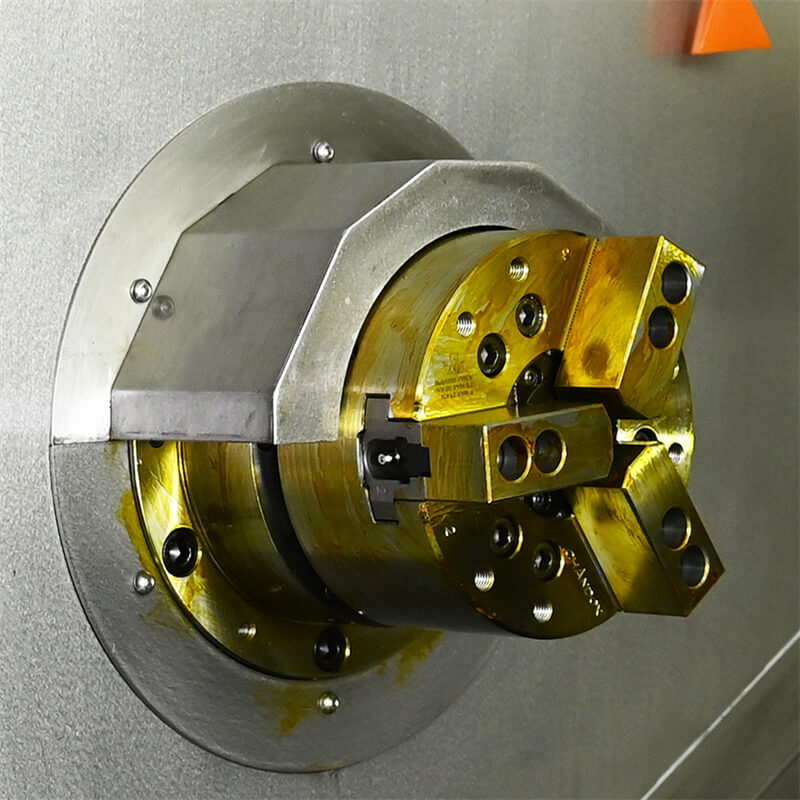

| Hollow Hydraulic Chuck | |
| Servo Turret | |
| Automatic Lubrication System | |
| Cooling System | |
| Heat Exchanger | |
| Alarm Light | |
| Electrical Components | |
| Technical Manual | |
| Optional Accessories | |
| Control & Drive/Electrical | |
| Hydraulic System/Spindle/Tool Post | |
| Automatic Chip Conveyor | |
| Oil Bath Automatic Feeder | |
| Automatic Receiver | |
| Single-Part Automatic Feeder | |
| Robotic Arm | |
| Tool Post | |
| Power System |
