- 45-degree inclined bed saddle structure
- Bar Work Capacity Dia.75mm
- 520mm of Max. Turning Length
- High Rigidity, Low Vibration Design
- With Taiwan Servo Turret
- Available with Programmable Hydraulic Tailstock
| Project | Name | Parameter |
| Processing Range | Maximum Turning Diameter (Bed) | Φ580 mm |
| Maximum Processing Diameter (Disc) | Φ520 mm | |
| Maximum Processing Diameter (Shaft) | Φ300 mm | |
| Maximum Workpiece Length | 520 mm | |
| Maximum Bar Through-hole Diameter | Φ75 mm | |
| Distance Between Centers | 620 mm | |
| Travel and Fastest Feed | X-axis Effective Travel | 300 mm |
| Z-axis Effective Travel | 570 mm | |
| X, Z-axis Rapid Traverse | 20 (M/Min) | |
| X, Z-axis Servo Motor | 18/18 Nm | |
| Spindle | Spindle Nose Type | A2-8 |
| Spindle Through-hole Diameter | Φ86 mm | |
| Maximum Spindle Speed | 3000 rpm | |
| Spindle Motor Power | 18.5 Kw | |

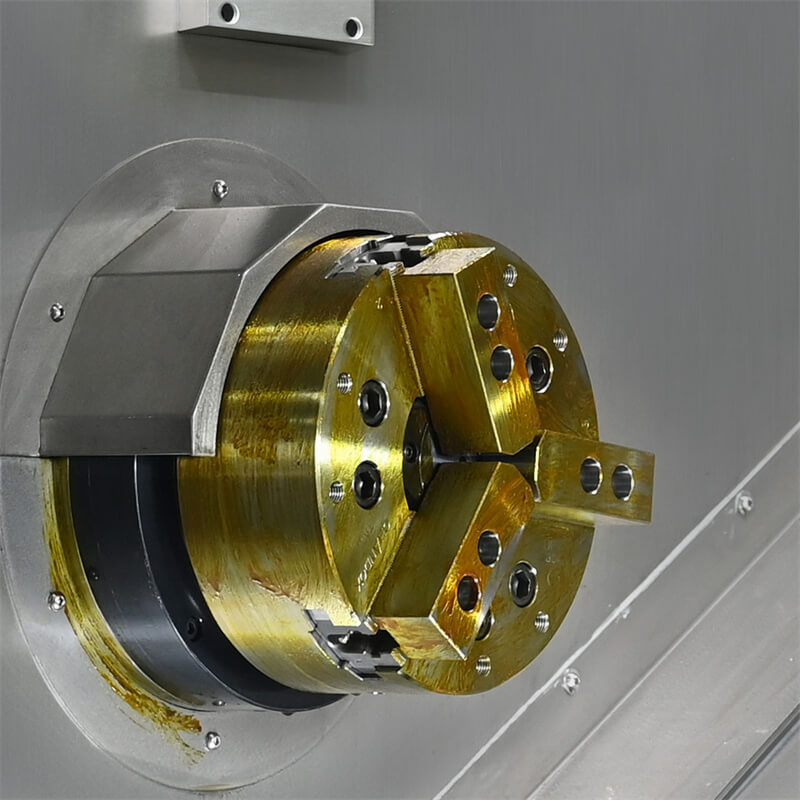

| Chuck and Rotary Cylinder Spec | 10 inches | |
| Processing Accuracy | X, Z-axis Positioning Accuracy | ±0.005mm |
| X, Z-axis Re-positioning Accuracy | ±0.003mm | |
| Hydraulic Tailstock | Tailstock Sleeve Specification | MT-5 |
| Tailstock Sleeve Travel | 100mm | |
| Tailstock Pressure Range | 8～25 Pa | |
| Tailstock Movement | Saddle Driven, Hydraulic Lock | |

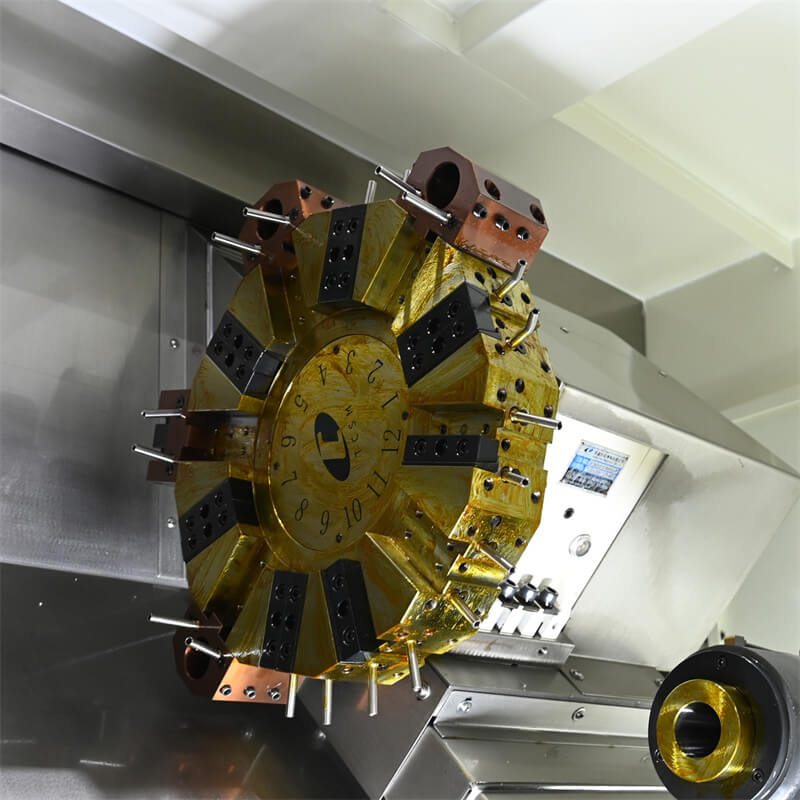

| Servo Turret | Tool Holder Specification | □25*25 |
| Boring Bar Specification | Φ40 | |
| Turret | 100mm Center Height, 12 Positions | |
| Others | Bed Structure Type | 45°Integral Slant Bed |
| Dimensions (L×W×H) | 2770*1780*1945 mm | |
| Weight | 4500 kg |
| Standard Accessory | Remarks | Optional Accessories |
| CNC System | GSK 988TA | Control & Drive/Electrical |
| Servo Main Motor | GSK 18.5kw | Hydraulic System/Spindle/Tool Post |
| X, Z-axis Servo Motors | GSk 18NM | Automatic Chip Conveyor |
| Spindle | Oil Bath Automatic Feeder | |
| Spindle Bearings | Automatic Receiver | |
| Ball Screw Bearings | Single-Part Automatic Feeder | |
| Linear Guides |
X Axis: 45 Roller Z Axis: 45 Roller |
Robotic Arm |
| Ball Screws |
X Axis: 4010 Z Axis: 4010 |
Tool Post |
| Hollow Rotary Cylinder | Power System | |
| Hollow Hydraulic Chuck | ||
| Servo Turret | ||
| Automatic Lubrication System | ||
| Cooling System | ||
| Heat Exchanger | ||
| Alarm Light | ||
| Electrical Components | ||
| Technical Manual |
