Premium Model
TC840 High-efficiency Drilling&Tapping Center
TC840 High-efficiency Drilling&Tapping Center

- 850*400 Worktable

- Axes rapids 48*48*48 m/min

- Extra-large span base

- High-speed & powerful spindle

- Extensive application fields


Service Online:

  • Parameter
Name Parameter
Travel
Three axis travel 800/400/300mm
Distance from spindle end face to worktable center 150-450 mm
Worktable
Worktable Size(L*W) 900×400
Maximum load-bearing capacity  300kg
T-shaped slot (quantity × width× spacing) 3×14×120 mm
Spindle
Spindle diameter Spindle bore taper φ100/ BBT30
Max spindle speed 20000 rpm
Motor power 3.7/5.5 kW
Feed
Three axis fast moving speed (X/Y/Z) 48/48/48 m/min
Three axis feed speed (X/Y/Z) 10/10/10 m/min
Tool Magazine
Magazine capacity 21
Max tool diameter/length/weight φ60mm/200mm/3kg
Maximum tool diameter (full tool/adjacent empty tool) 60/80 mm
Tool exchange time (T-T) 1.3s
Accuracy
(X/Y/Z) Positioning accuracy 0.008 mm
(X/Y/Z) repositioning accuracy 0.005 mm
Others
Linear guide rail specifications (X/Y/Z) Ball 30/30/35 mm
Ball screw specifications (X/Y/Z) 32/32/32 mm
Servo motor specifications (X/Y/Z) 9/9/22.5 Nm
Air source/pressure 280L/min 6~8bar
Total electrical capacity 15kVA
Machine size (X×Y×Z) 2200×2600×2700 mm
Estimated weight 3300 kg
VIEW MORE

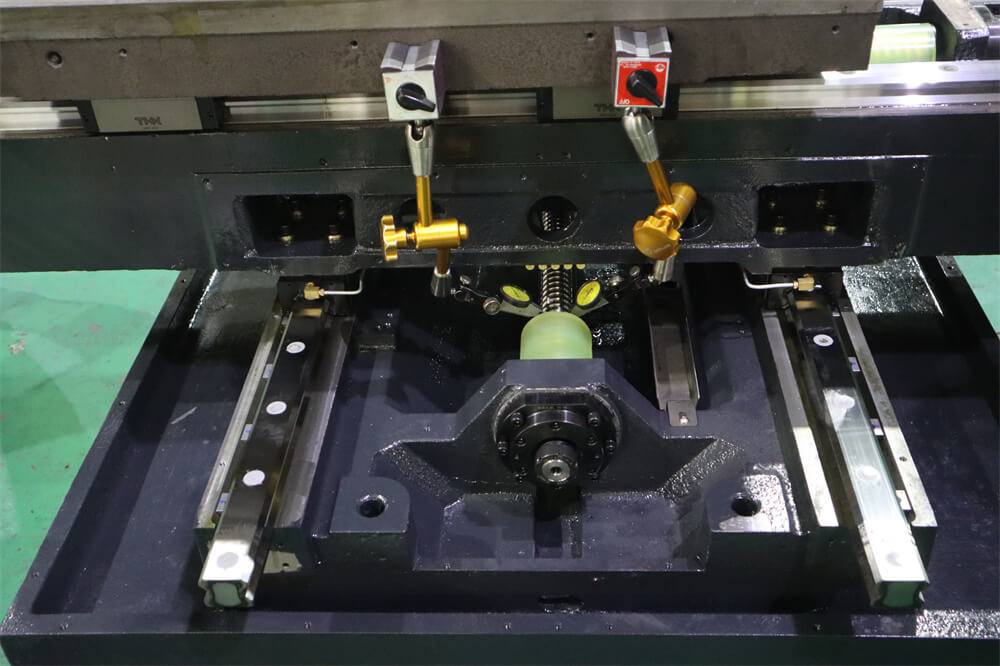

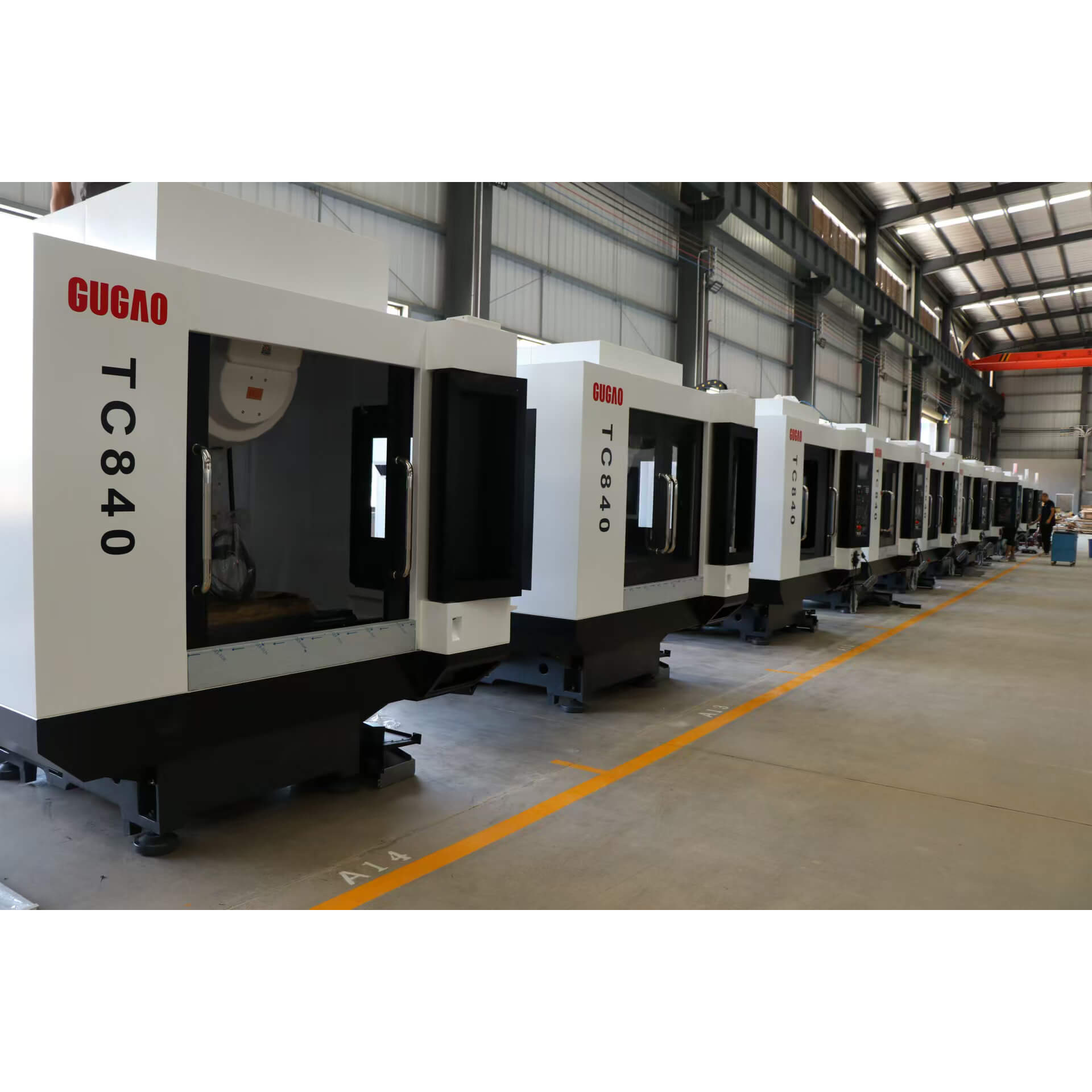

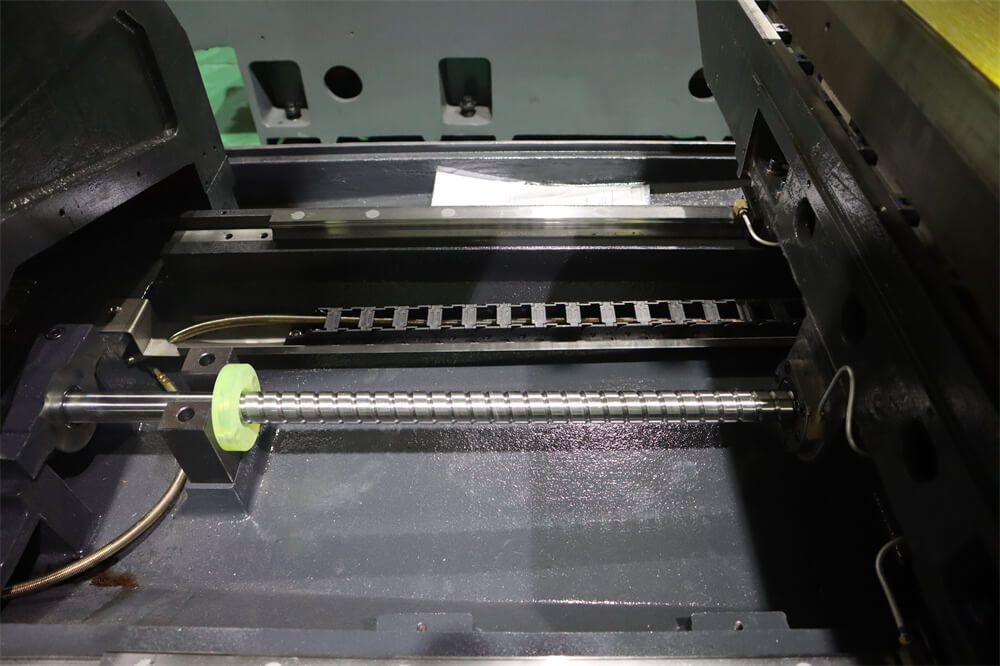

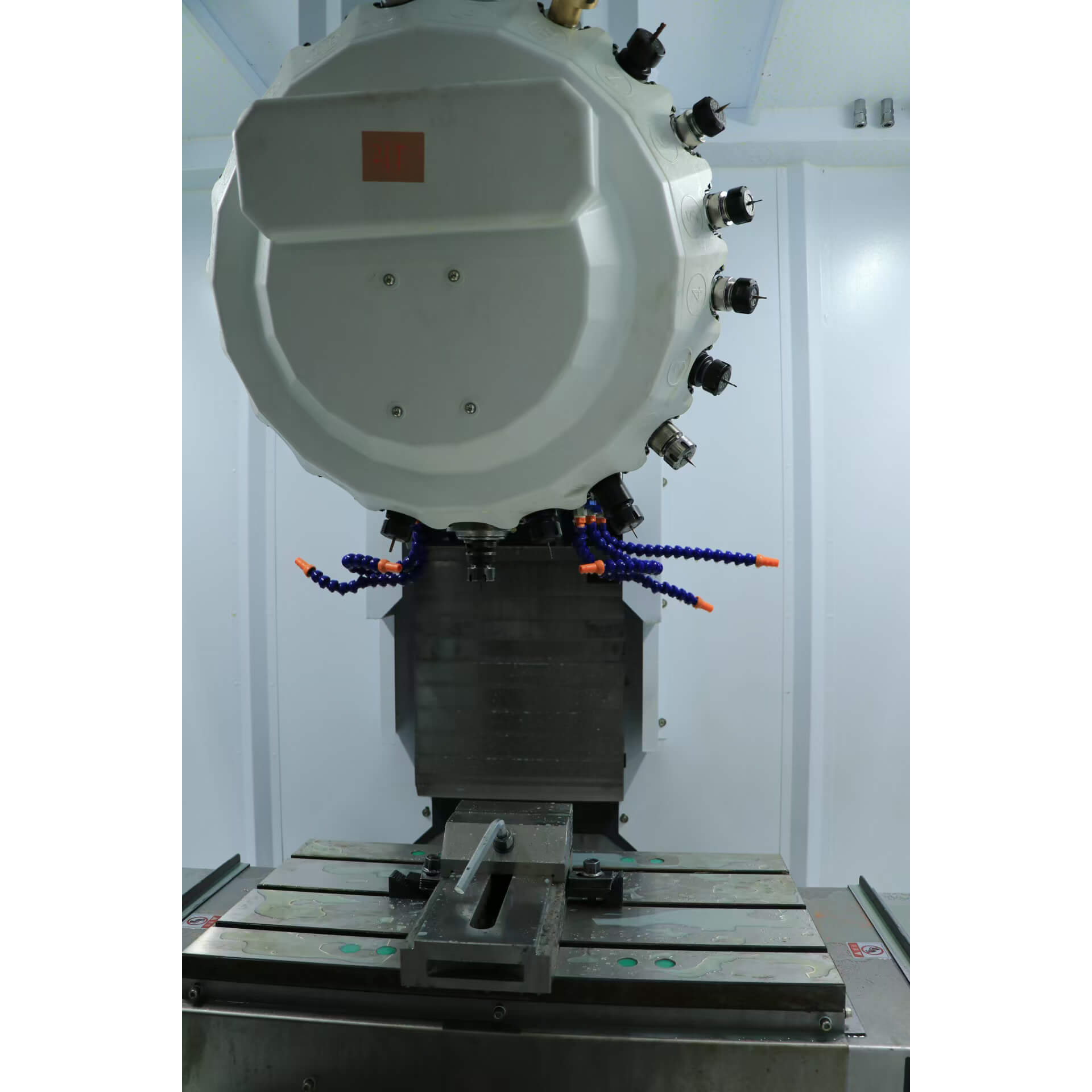

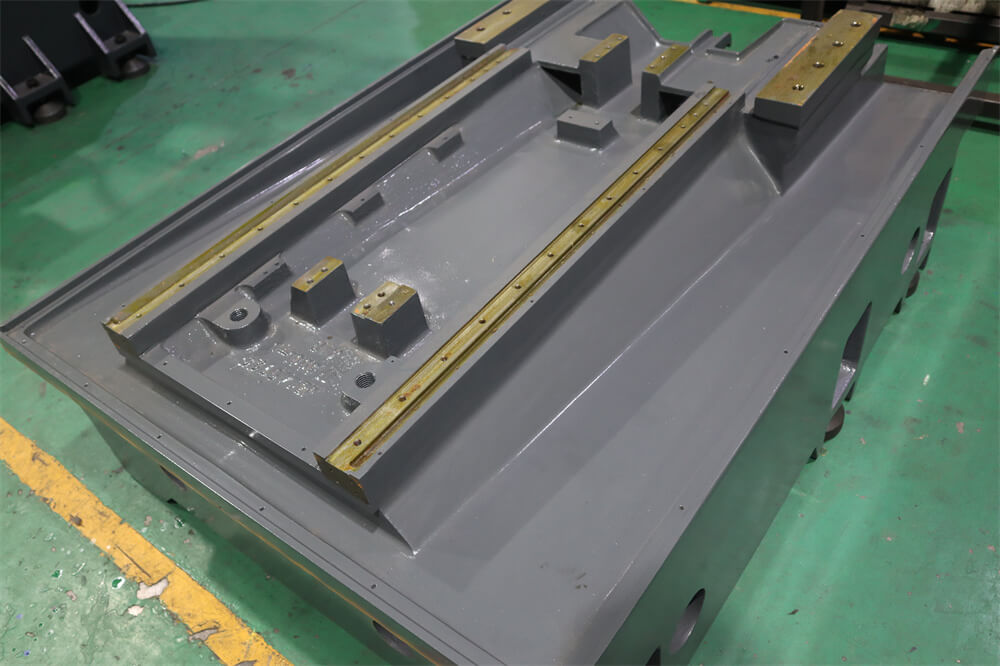

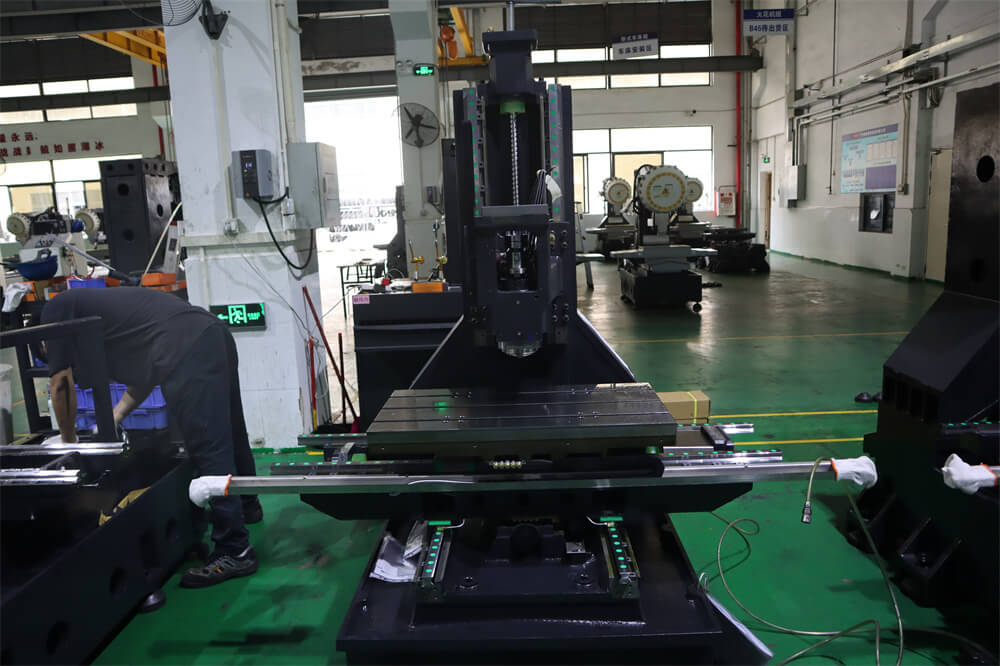

  • Product pictures
  • Configuration
Standrad Accessories Optional accessories
1. FANUC 0i MF CNC Oil Mist Collector
2. Hand held operation unit Oil skimmer (Electric)
3. Clamp-arm tool magazine Safety Door Grating
4. Automatic lubrication system Automatic Safety Door
5. Three-color light Wireless Handwheel
6. Air curtain protection Electric Cabinet AC
7. Spindle air blowing device Simple Spindle Ring Spray
8. Working light  4 Axis Rotation Table
9. Relevant accessories 5 Axis Rotation Table
10. Set of standard technical documents Tool Magazine Inverter
