- Max. 350mm of Workpiece Swing Diameter
- Max. 600mm of Grinding Length

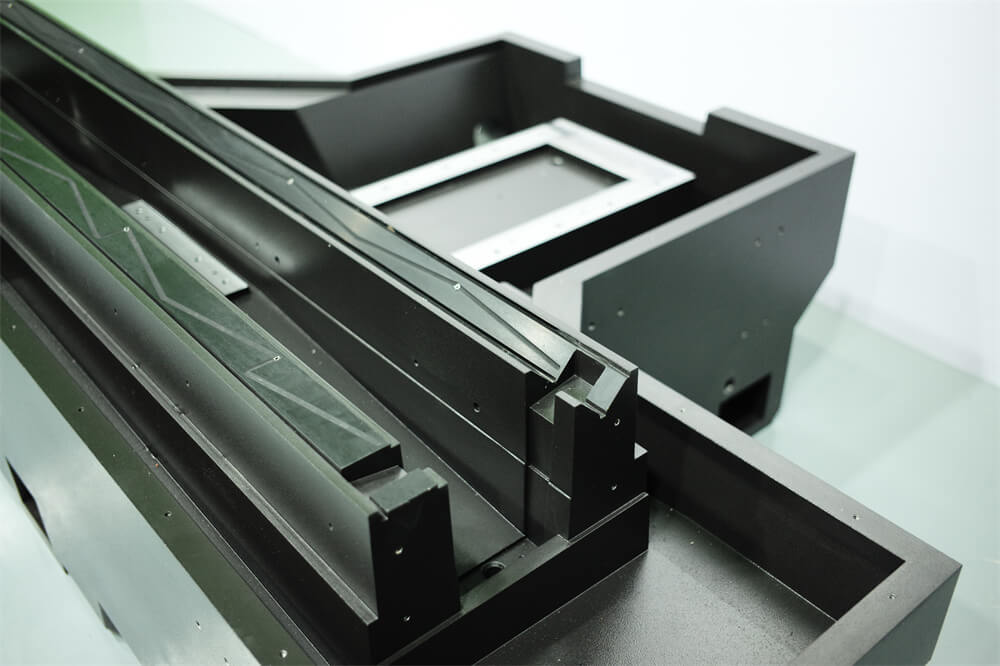

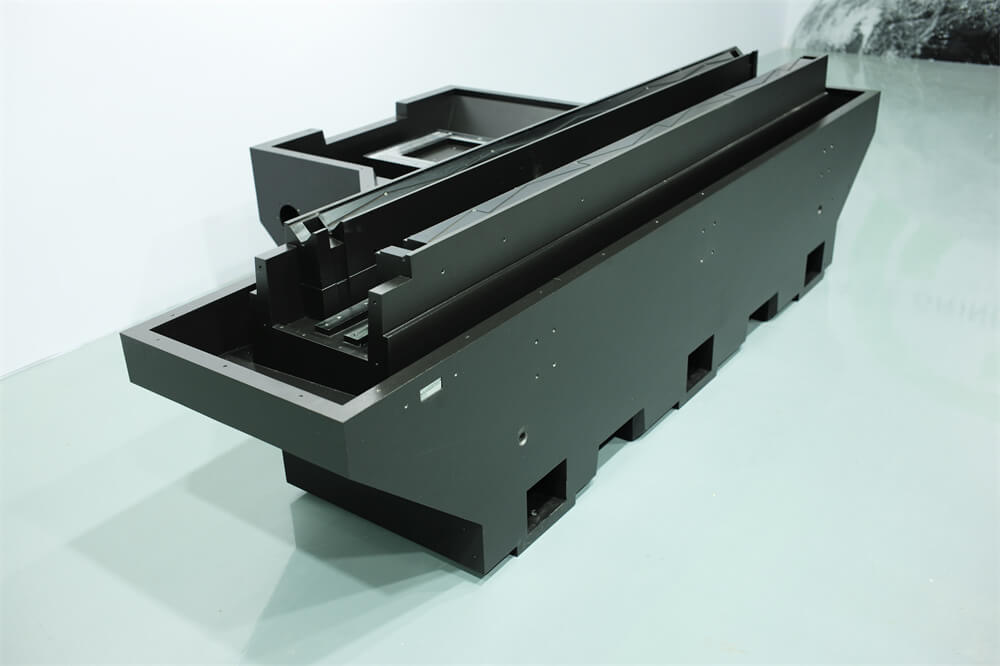

- SCHNEEBERGER mineral casting
- 0.003mm of Processing Accuracy
- Fully Enclosed Metal Cover
| G35-60 | |
| Specifications | |
| Swing diameter | 350mm |
| Max. Grinding diameter | 330mm |
| Max. Grinding length | 600mm |
| Distance between centers | 650mm |
| Max. Weight of workpiece between centers | 80kg |
| Grinding wheel head | |
| Grinding wheel dimensions | |
| (Outer* inner* thickness) | 510*(25~100)*203.2/ optional 510*(25～100)*203.2 |
| Spindle motor power | 7.5 (Optional 11) Kw |
| Cutting line speed of grinding wheel | 60m/s (Optional 100m/s) |
| Spindle axis size | 67 mm |
| Spindle bearing type | Bearing type spindle(high-speed electric spindle optional) |
| Workhead | |
| Type | Dead center/ Movable center |
| Center taper | MT5 |
| Spindle speed | 10~1000rpm |
| Motor power | 2 Kw/hp |
| Tailstock | |
| Center taper | MT4 |
| Sleeve diameter | 58mm |
| Spindle travel | 35mm |
| X-axis grinding wheel slide | |
| Table travel | 400mm |
| Quick feed speed | 16M/min |
| Min.feed/every scale | 0.001/0.01/0.10mm |
| Feed mode of grinding wheel | Plunge/Angular |
| X-axis servo motor | 2.2 Kw |
| Grinding wheel slide | A-V-flat structure guide rail |
| Z-axis grinding wheel slide | |
| Table travel | 700mm |
| Quick feed speed | 16 M/min |
| Min.feed/every scale | 0.001/0.01/0.10mm |
| Z-axis servo motor | 2.2 Kw |
| Table slide | A-V flat structure guide rail |
| Bench rotation angle | 4 degrees of clockwise rotation/9 degrees of counterclockwise rotation |
| Universal | |
| Grinding wheel head lubricating oil pump | 1/4HP |
| Grinding fluid pump | 1/4HP |
| Guide oil pump | 25w/HP |
| Grinding wheel head oil tank capacity | 30L |
| Grinding fluid tank capacity | 120L |
| Guide oil tank capacity | 8L(with full-time lubrication) |
| Net weight | 5200kg |
| Dimensions | 3200L*2500W*1900H mm |
| l Bed lubrication device |

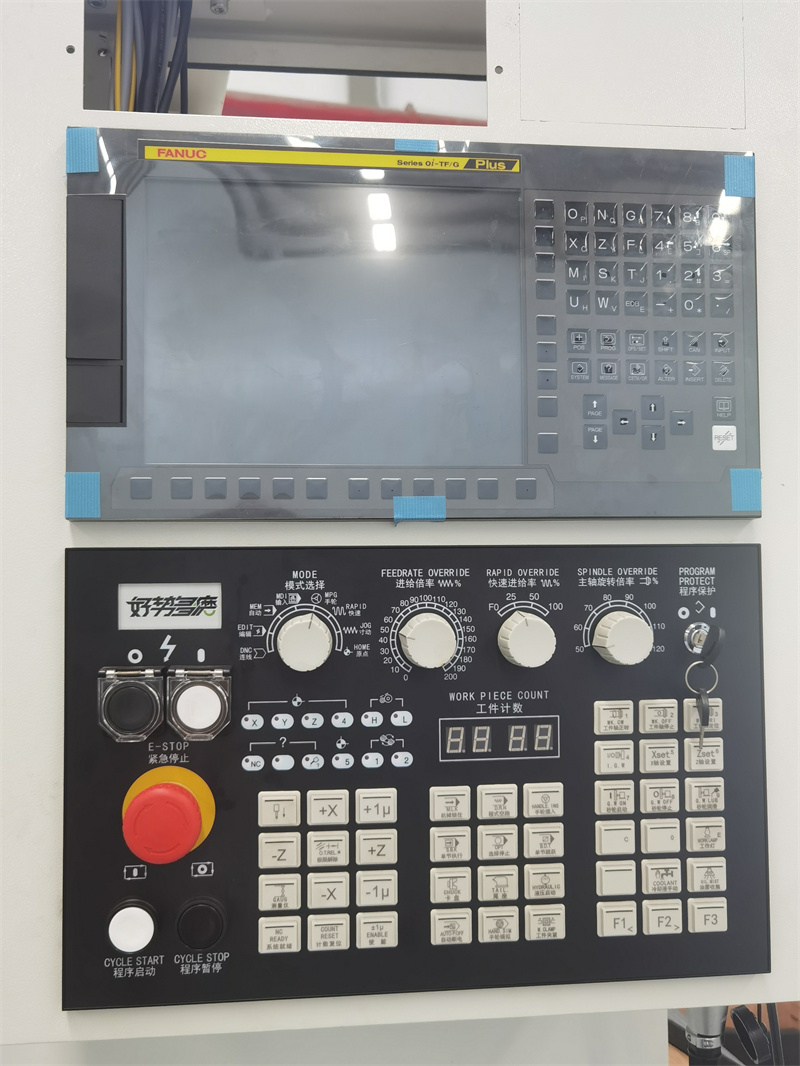

| l FANUC Controller system |
| l Roller dresser device |
| l Grinding wheel balance rod and balance stand |
| l Grinding wheel guard |
| l Foot pads and screws |
| l Flange, puller, and center ejector rod |
| l Cutting fluid (paper belt and magnetic filter) |
| l Work light |
| l Hand tools and toolbox |
| l Standard grinding wheel (510/50/152.4) |
| l Full enclosure sheet metal |
| l Spindle lubrication device |
| l Hydraulic device |
| l Pneumatic unit |
| l Manual and accuracy inspection report |
| l 60m grinding wheel spindle constant line speed |

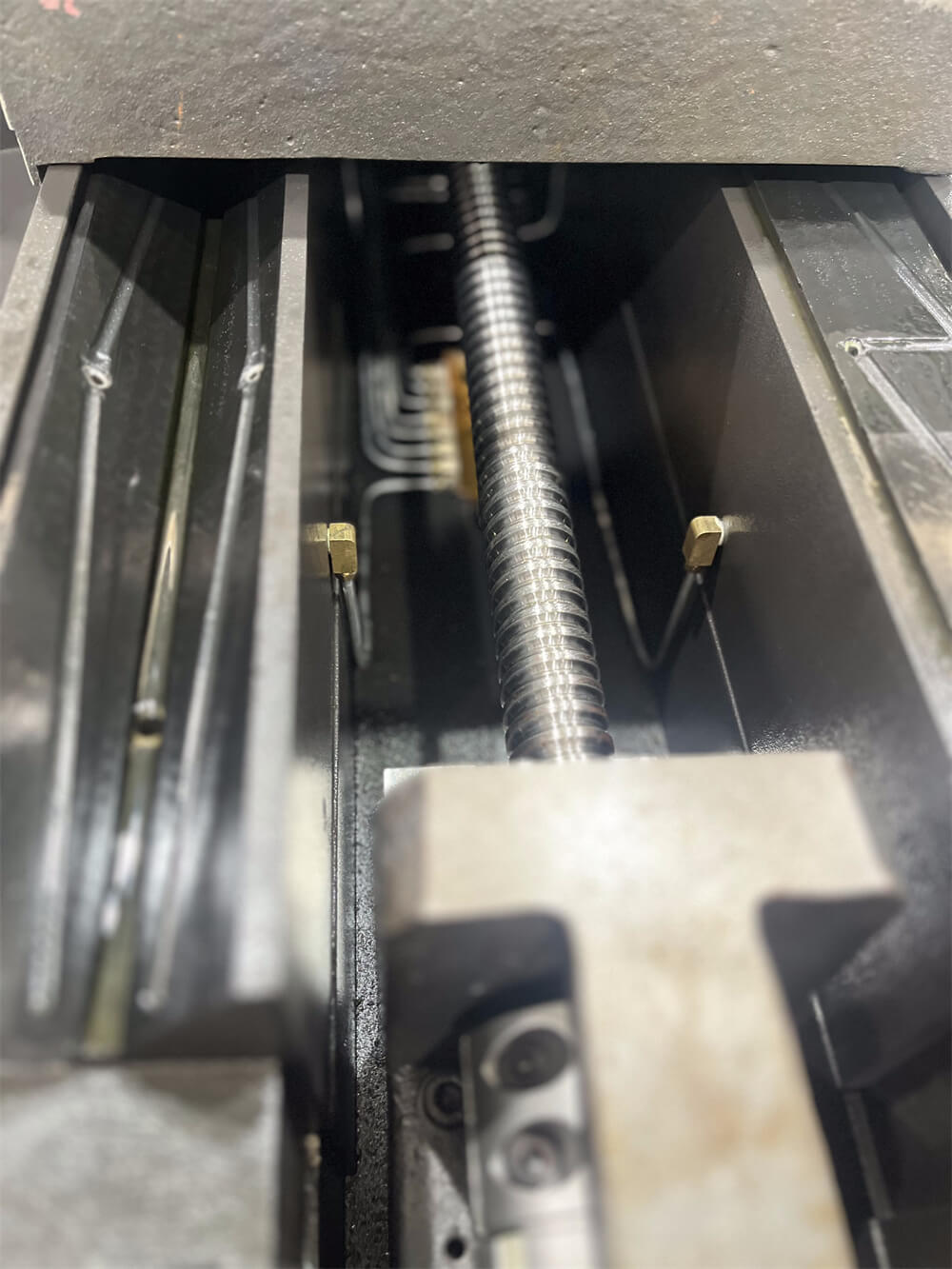

| l Ball screw (C1 grade Hiwin or Yintai) |
| l Servo motor (Japan FANUC Bis22-2000) |
| l Workhead motor (Taiwan Delta) |

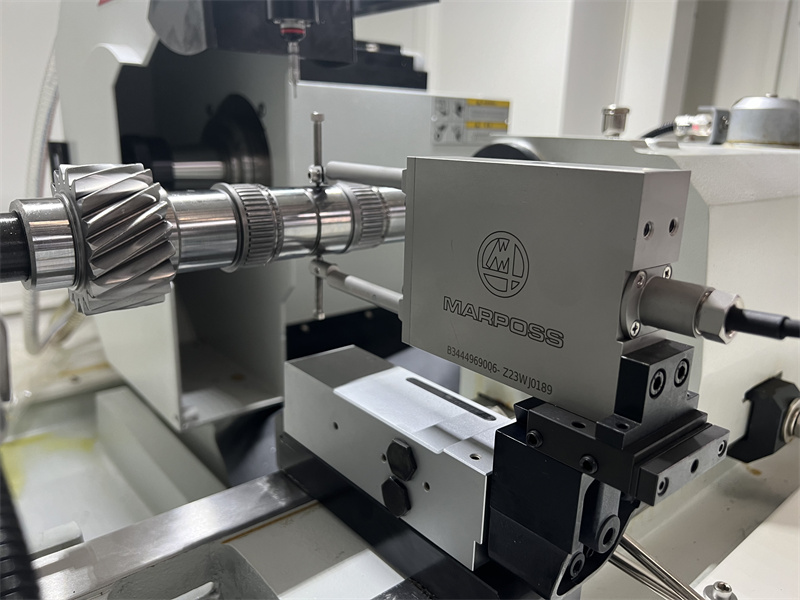

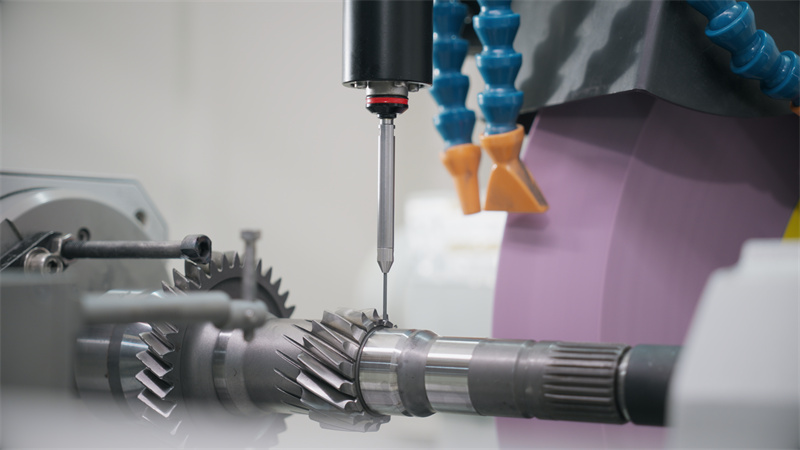

| l Outer diameter measurement (Italy Marposs) |
| l Spindle constant temperature air conditioner (China Tongfei) |
| Optional Standard: (Charge in Additionally) |
| l Roller grinding base |
| l Forming roller |
| l Cutting oil constant temperature air conditioner |
| l Optical scale (Fagor, HEIDENHAIN) |
| l Oil mist recovery machine |
| Special Items: |
| Voltage：380V50HZ |
