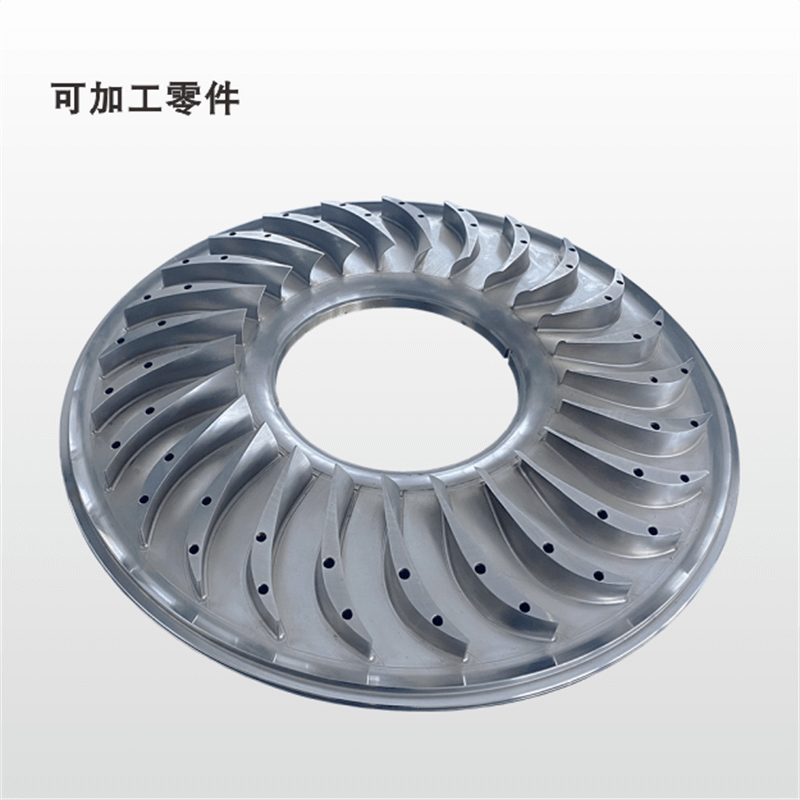

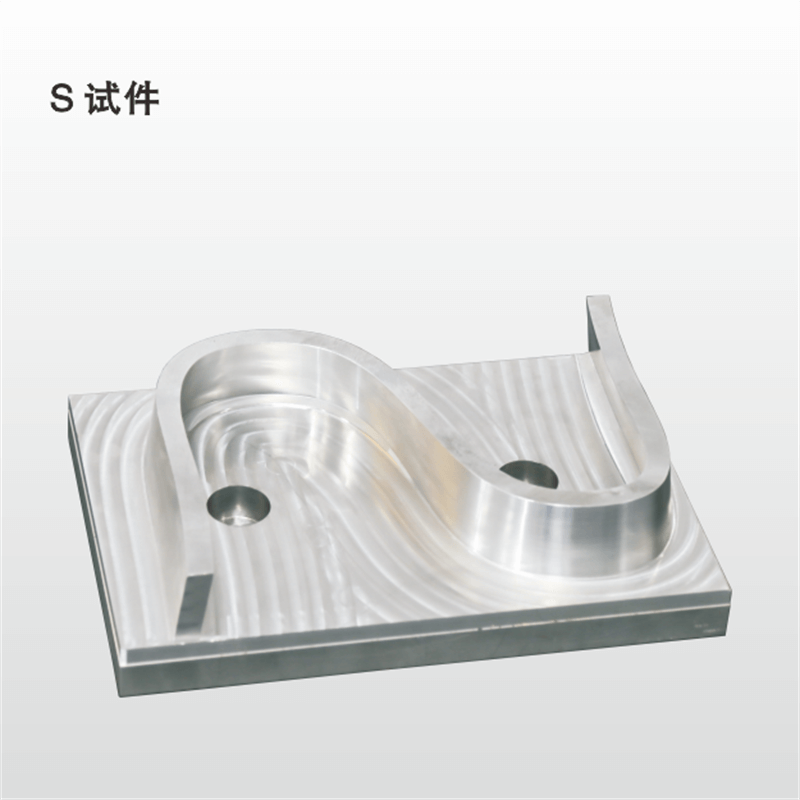

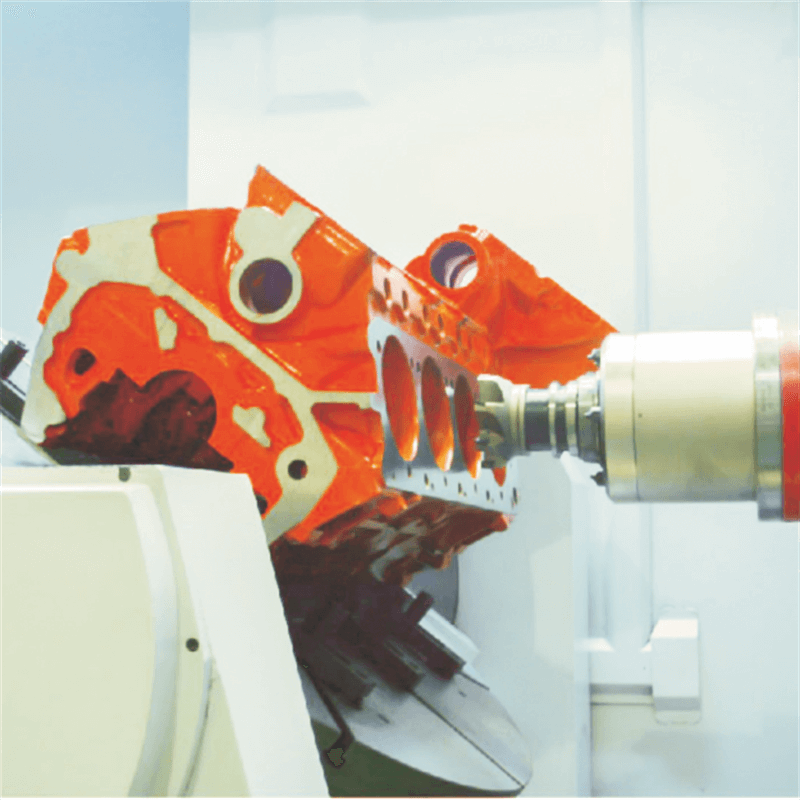

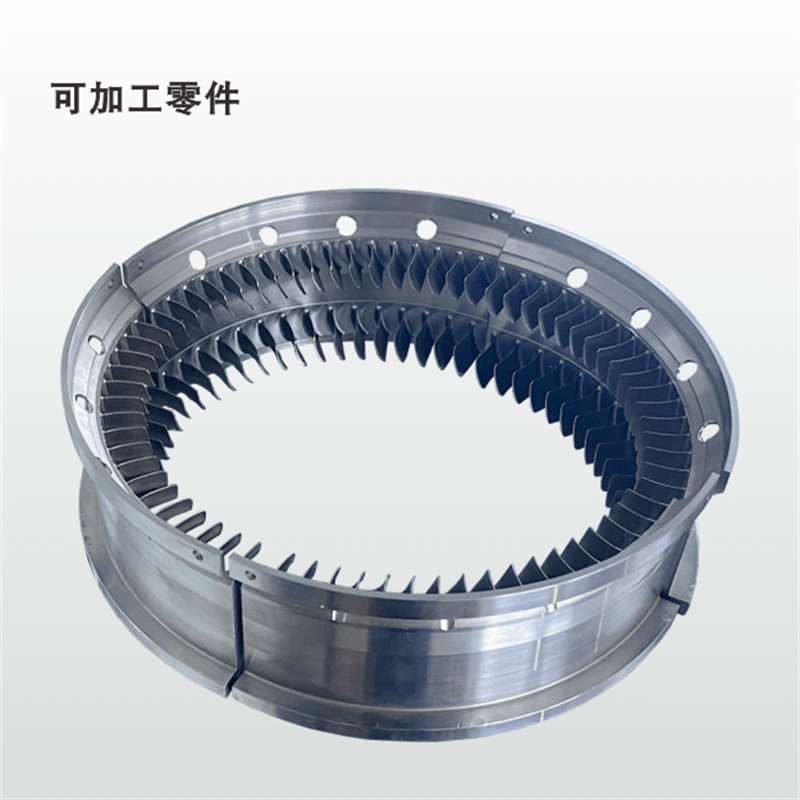

- More ergonomic design
- Linear drive system ensures high-precision
- Splash-proof fully enclosed protective structure

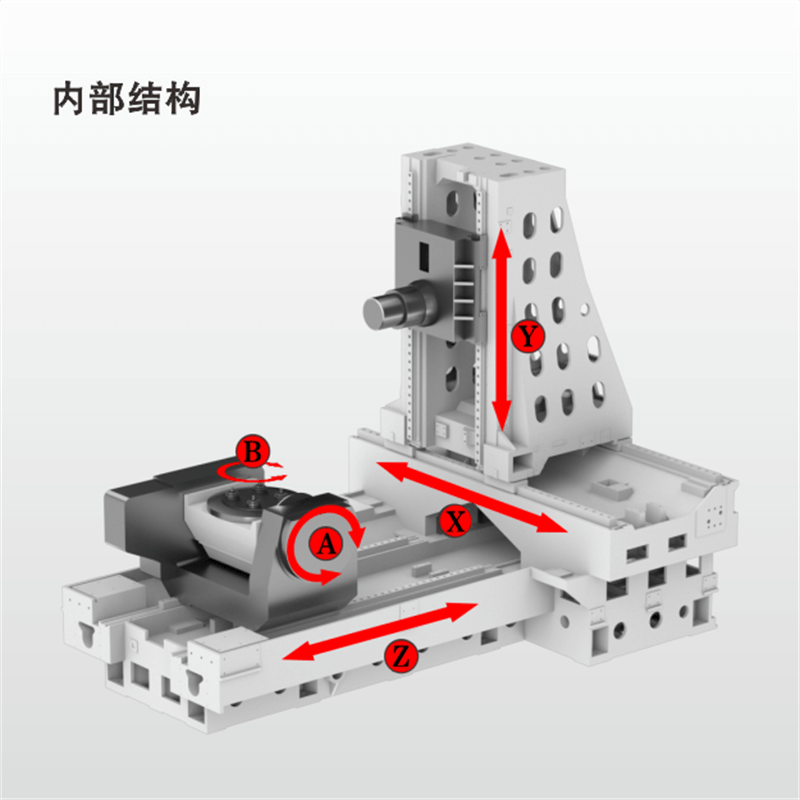

- T-Type integrated frame structure for the column
- Imported multi-row high-precision combination bearings
| Items | Parameters |
| Pallet worktable | |
| Worktable Surface (L*W) | 500*500mm (Optional 500*630) |
| B-axis inde | 1°*360(End tooth pallte)/ 0.001° *360000(Continuous) |
| Worktable rpm | 12 r/min |
| Pallet loading capacity(Dual table) | 800kg |
| Max. dia of workpiece | Φ750mm |
| Number of change pallets | 2 |
| Pallet Change time | 16 |
| Travel | |
| X-axis (Corlumn) | 900mm |
| Y-axis (Headstock) | 700mm |
| Z-axis(Worktable) | 900mm |
| Spindle center to pallet surface | 50~750mm |
| Spindle nose to pallet center | 150~1050mm |
| Spindle | |
| Spindle Taper | No.50 |
| Spindle rpm | 20~6000 r/min（Optional 20~8000r/min） |
| Speed Selection | Programmable in the full range |
| Spindle motor | 18.5/22 kW |
| Max. Spindle torque | 310/525 Nm |
| Tool magazine | |
| Tool pockets | 40 (optional 60, 80, 100, 120) |
| Type of tool shank | BT50 (Optional ISO50, SK50) |
| Max. tool diameter |
Φ125(With tool at adjacent pocket)/ Φ250mm without tool at adjacent pocket) |
| Max. tool length | 450 mm |
| Max. Individual tool weight | 25kg |
| Tool change time (T to T) | 3.5 s |
| Tool selection | Stochastic, bi-directional |
| Driven for controllable axes | |
| Feedrate | 0~20 m/min |
| Rapid travel (X, Y, Z) | 45m/min |
| Servo motor (X, Y, Z) | 4 kW |
| B-axis servo motor | 3 kW |
| Location feedback (X, Y, Z, B axis) | Encoder |
| Min. Increment | 0.001 mm (Option 0.0001) |
| Min. Increment | 0.001 mm (Option 0.0001) |
| Machine Accuracy | |
| Positioning accurac (X, Y, Z) |

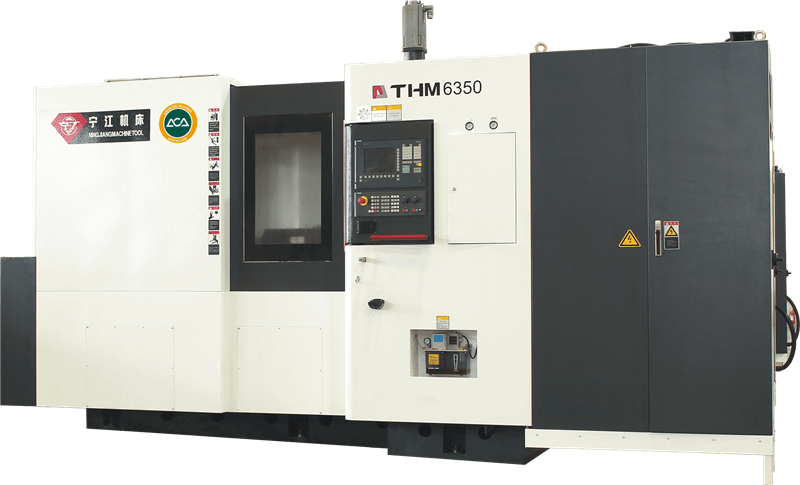

THMC6350: 0.008mm THC6350; 0.015mm |
| Repeatability |
THMC6350: 0.004mm THC6350: 0.008mm |
| B-axis indexing |
THMC6350: 6'' ThC6350: 8'' |
| B-axis indexing repeatability |
THMC6350: 3'' ThC6350: 4'' |
| Geometric accuracy standard |
Precision Level: GB/T 20957.1-2007 Standard Level: GB/T 18400.1-2010 |
| Installation Specification | |
| Machine net weight | 21 T |
| Tool power consurmption | 60 KVA |
| Power supply | 380 V/ 50Hz/Tri-phase |
| Air pressure | 0.6 Mpa |
| Air flow-rate | 350L/mm |
| Standard Accessories | Optional Accessories |
| Main machine | Squirt gun |
| Full closed machine cover | Manual bolwing gun |
| Work lamp | Tool probe |
| Tri-color lamp | Workpiece probe |
| Chip remover | Rotary Windows |
| Tool cooling system | Spindle center cooling |
| Self-diagnosable system | |
| ATC cover | |
| Pallet positioning hole blowing device | |
| Spindle hole blowing device | |
| Manual pulse generator | |
| Self power brake system | |
| Manual tool change device(Tool magazine) | |
| Manual tool change device(Spindle) | |
| Automatic Lubrication system | |
| Pallet cleaning device | |
| Chain-type chip remover and carrier | |
| Coolant degreasing device |
