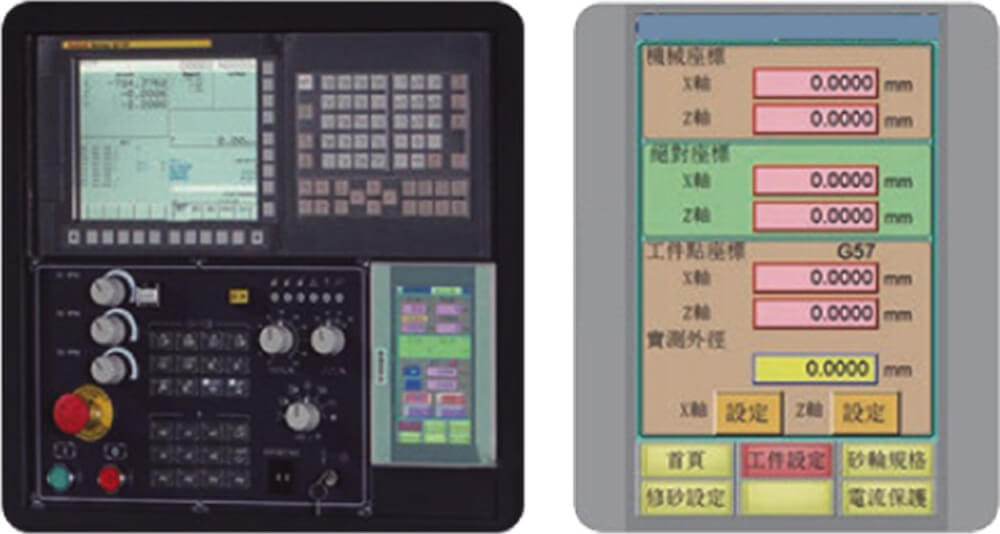

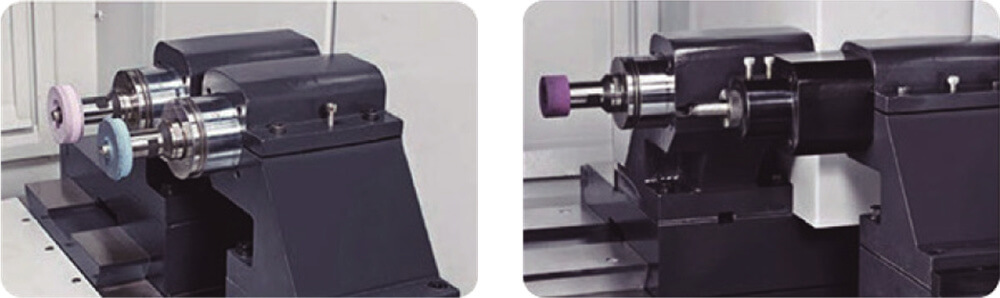

- FANUC Controller & Unique Interface
- Max. Grinding depth of 200mm

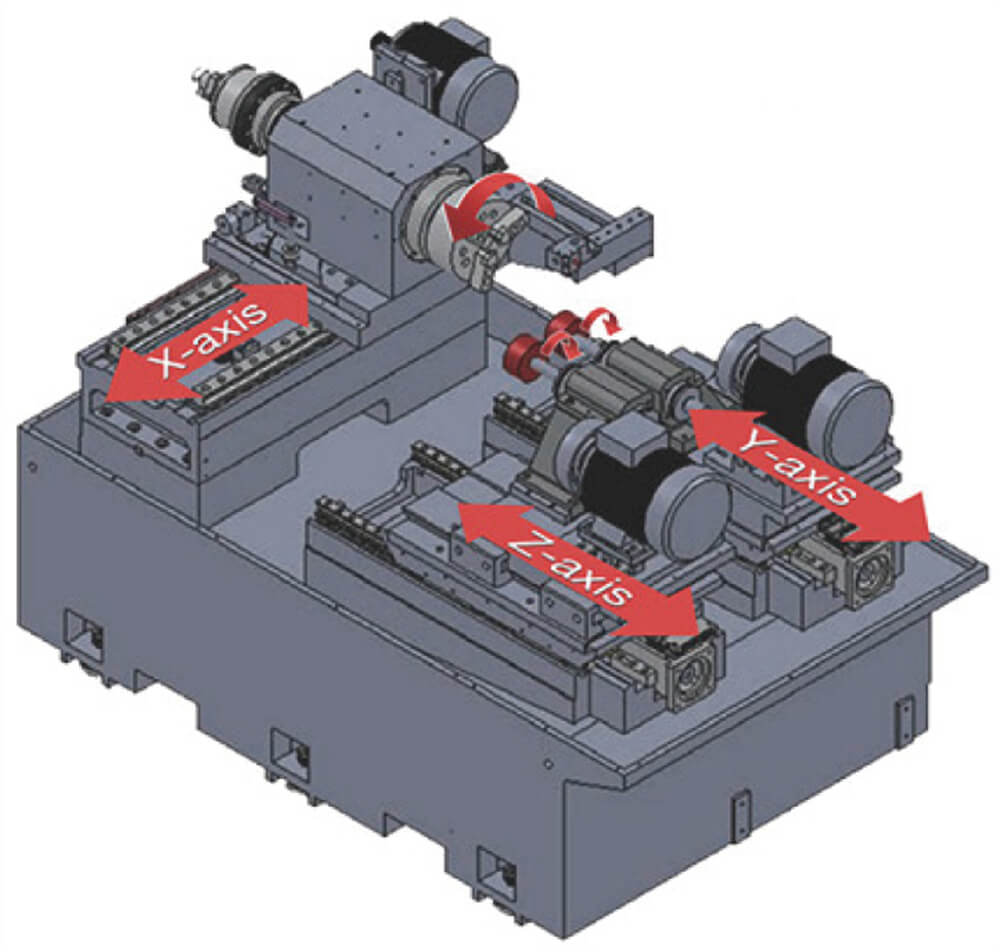

- Linear guide & ball screw
- High-grade cast iron and stable base
- Servo motor drive
| GN-500 | |
| Processing capacity | |
| Range of grinding diameter | 4~320mm |
| Max. Grinding depth | 200mm |
| Max. swing diameter of workpiece | 450mm |
| Inner swing diameter of waterproof cover | 320mm |
| Control System | |
| Controller | FANUC |
| Work Head | |
| Spindle speed | 0~1000rpm |
| X-axis feed rate/ Max. travel | 10M/min/390mm |
| Min. displayed unit of X-axis | 0.0001mm |
| Rotation angle of working head | -5 °~+30° |
| Table | |
| Feed rate of Y and Z axis | 10/10M/min |
| Max. travel of Y and Z axis | 350+200/350+200mm |
| Min. displayed unit of Y and Z-axis | 0.0001/0.0001mm |
| Height of working spindle center from ground | 1100mm |
| Oil pressure system | |
| Oil tank capacity | 30L |
| Cooling System | |
| Cutting fluid tank capacity | 200L |
| Drive motor | |
| Oil pressure motor | 0.75Kw(1HP) |
| Cutting fluid motor | 0.18Kw(1/4 HP) |
| X-, Y- and Z-axis servo motor | 1.6*1.6*1.6 |
| Grinding wheel motor(Kw) |
4.0·2P(5HP) 4.0·2P(5HP) |
| Spindle head motor | 2.2·4P(3HP) |
| Others | |
| Automatic oiling machine | 4L |
| Dimensions(L*W*H) | 3350*2150*1900 mm |
| Weight | 4750kg |
| GN-500 |
| Standard Accessories: |
| 1.1 Full-coverage guard |
| 1.2 Internal circulation cooling system for electrical cabinet |
| 1.3 Automatic lubrication system |
| 1.4 Paper belt + magnetic filter + water tank |
| 1.5 Work light, three-color warning light |
| 1.6 Foundation bolts and machine leveling pads |
| 1.7 Tool box and tools |
| 1.8 Spindle coolant spray |
| 1.9 Universal cleaning spray gun |
| 1.10 Machine, electrical, and operation manuals |
| 1.11 Sandblasting tool (x2) |
| 1.12 2 diamond pens (single-point) |
| 1.13 Transformer + power cable |
| 1.14 Base plate packaging |
| Special Equipment: |
| 2.1 X and Z-axis optical scales (Fagor) |
| 2.2 Roller sandblasting tool (2 sets) |
