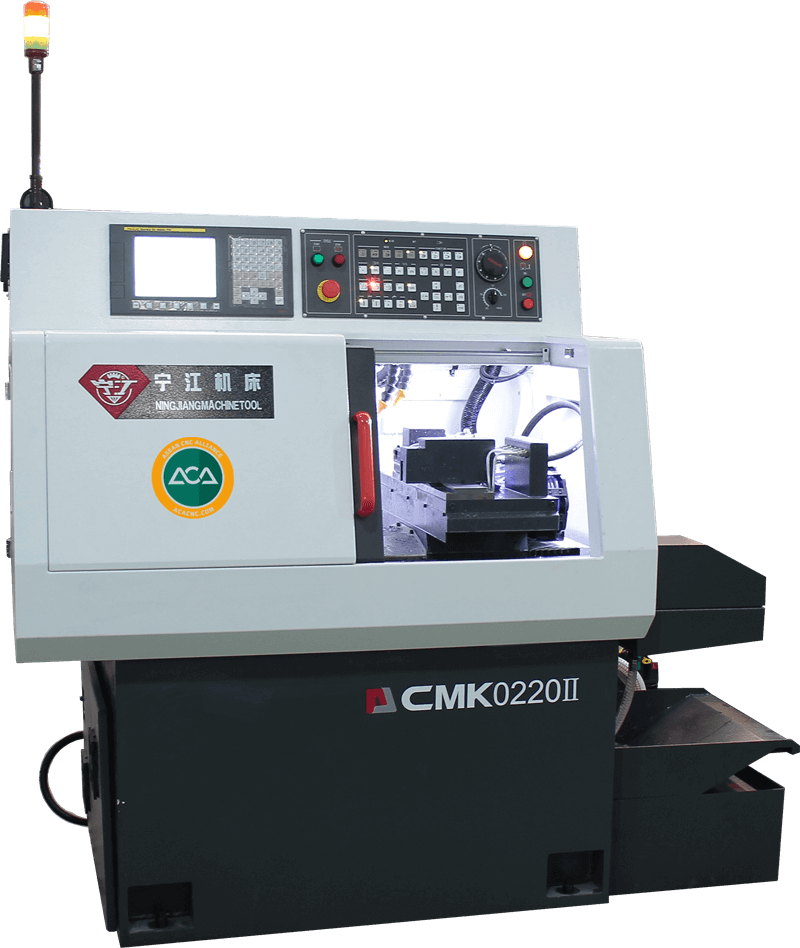

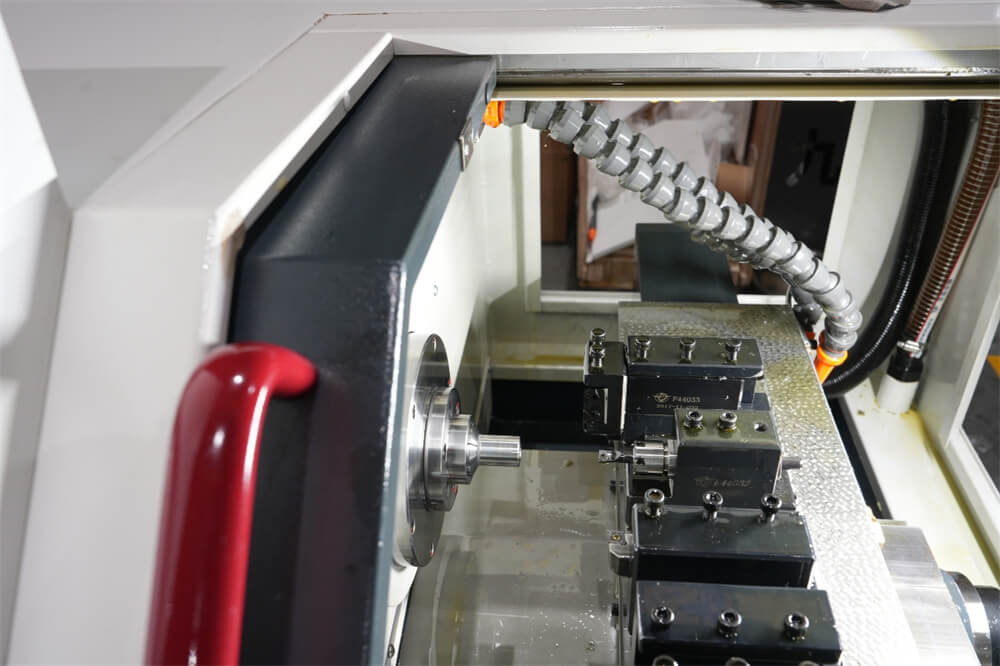

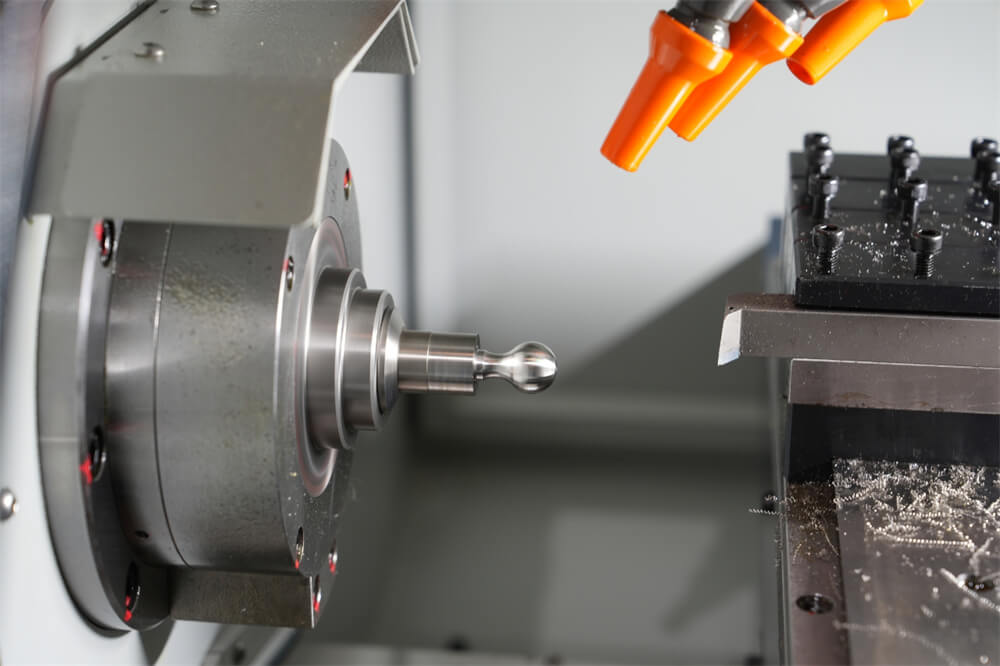

High-Precision CNC Lathe: Equipped with FANUC Series 0i-TF Plus CNC system, ideal for precise machining of short shafts, disc-type, and small parts.
Wide Application: Suitable for various industries including IT, electronics, telecommunications, refrigeration, home appliances, aerospace, automotive, and more.
Compact Design: Space-saving with a compact structure, suitable for diverse work environments.
User-Friendly Operation: Easy to operate with an attractive design, offering a user-friendly experience.

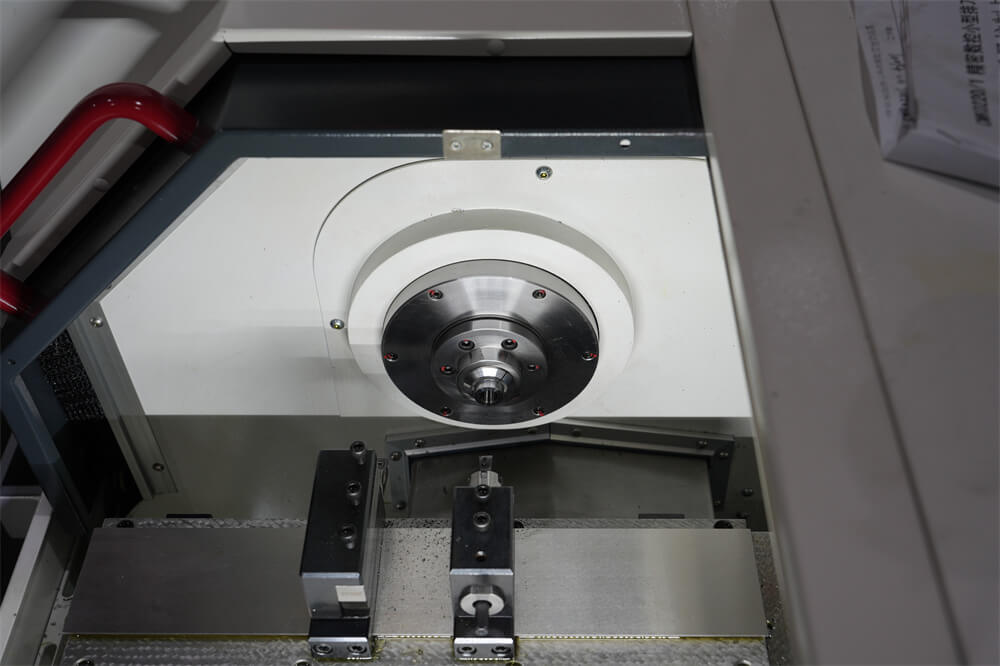

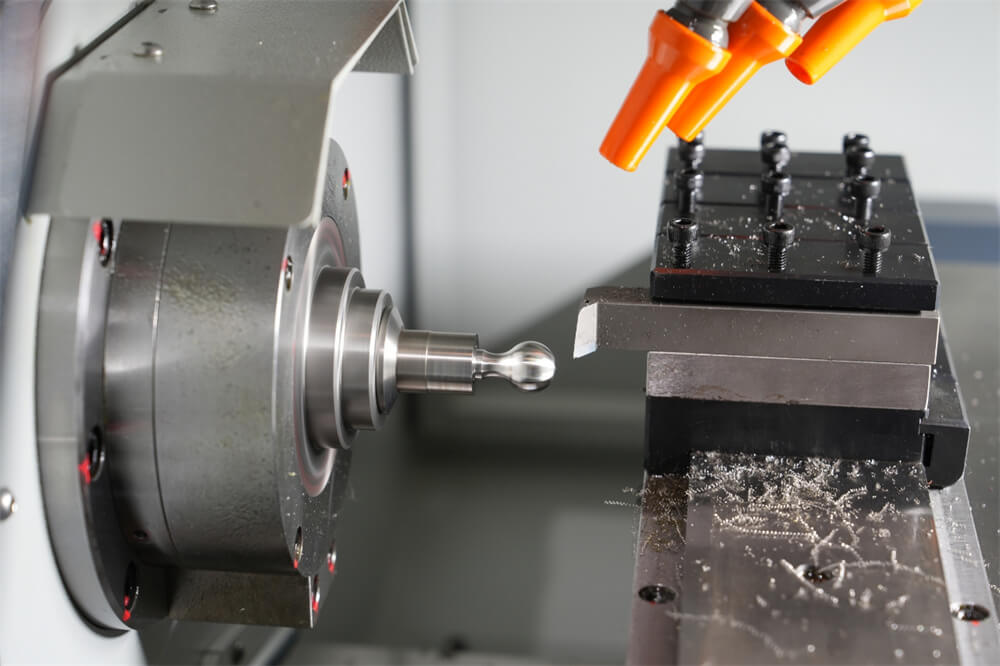

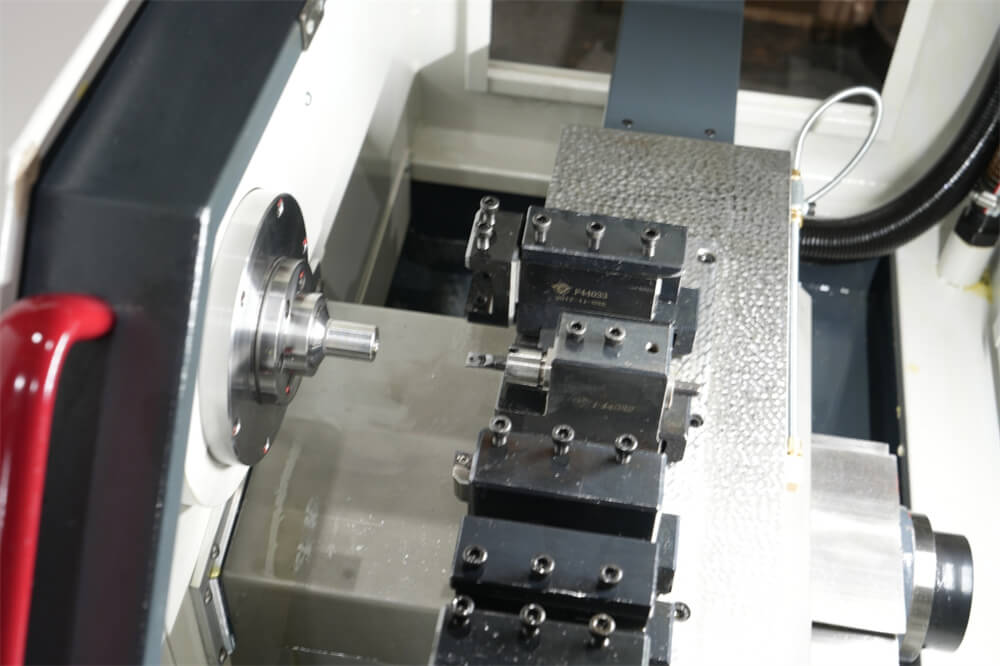

Specification CMK0220II | |
CNC System: Standard | FANUC, Optional: Syntec |
Machining Range: | |
Maximum Bar Diameter: | φ20 mm |
Maximum Machining Diameter: | φ100 mm |
Maximum Workpiece Length: | 100 mm |
Maximum Swing Diameter: | φ300 mm |
Swing Diameter Over Tool Post Base: φ120 mm | φ120 mm |
Spindle: | |
Maximum Spindle Speed: | 8000 rpm |
Spindle Through Hole Diameter: | Φ20 mm |
Spindle Motor Power: | 2.2/3.7 kW |
Radial Runout of Spindle Location Hole: | 0.002 mm |
C-Axis Increment(Servo Spindle): | 0.001° |
Tooling: | |
Tool Holder Size for Turning Tools: | 16×80~100 mm |
Others: | |
X-Axis Travel: | 220 mm / 320 mm (Optional) |
Z-Axis Travel: | 180 mm |
Precision and Performance: | |
Single-Row Repeated Positioning Accuracy: | 0.002 mm |
Rapid Feed Rate: | 24 m/min |
Feed Motor Power: | 0.75 kW |
Minimum Increment for Linear Axes: | 0.0001 mm |
Coolant Pump Motor Power: | 0.37 kW |
Lubrication Pump Motor Power: | 4 W |
Additional Specifications: | |
Coolant Tank Capacity: | 200 L |
Power Input Capacity: | 6 kVA |
Air Source Pressure and Flow Rate: | 0.5 MPa, 300 Nl/min (maximum) |
Machine Weight: | ~1200 kg |
Machine Dimensions (L×W×H): | 1250 × 1030 × 1580 mm |
Standard Accessories | |||
Serial Number | Name | Quantity per Unit | Remarks |
1 | FANUC CNC System | 1 | |
2 | Nameplates | 1 | Various warning labels, machine nameplate |
3 | Transformer | 1 | |
4 | Pneumatic System | 1 | |
5 | Cooling System | 1 | |
6 | Lubrication System | 1 | |
7 | Tool Holder | □16 | Includes 4 sets of external tool holders |
8 | LED Lighting | 1 | |
9 | Machine Three-Color Alarm Light | 1 | |
Optional Accessories | |||
Serial Number | Name | Remarks | |
1 | Automatic Loader | Automatically feeds material; switches to the next bar when one is used up. | |
2 | Radial Power Tools | Various power tools available to meet different processing needs. | |
Axial Power Tools | |||
Vertical Power Tools | |||
3 | Chucks | 1) Solid or hollow pneumatic chucks | |
2) Solid or hollow hydraulic chucks | |||
3) Manual chucks | |||
4 | Ejector | Automatically feeds material | |
5 | Chip Conveyor | Automatically collects chips during processing | |
6 | Flying Cutter Mechanism | Used to process workpieces into quadrilateral or hexagonal shapes | |
7 | High-Pressure Internal Cooling System for Tools | Improves cooling and chip removal efficiency for difficult-to-machine parts. Typically available in 70 Pa, 100 Pa options. | |
8 | Parts Conveyor Belt | ||
9 | Spindle Internal Cooling System | Optional based on different usage environments and requirements. |
