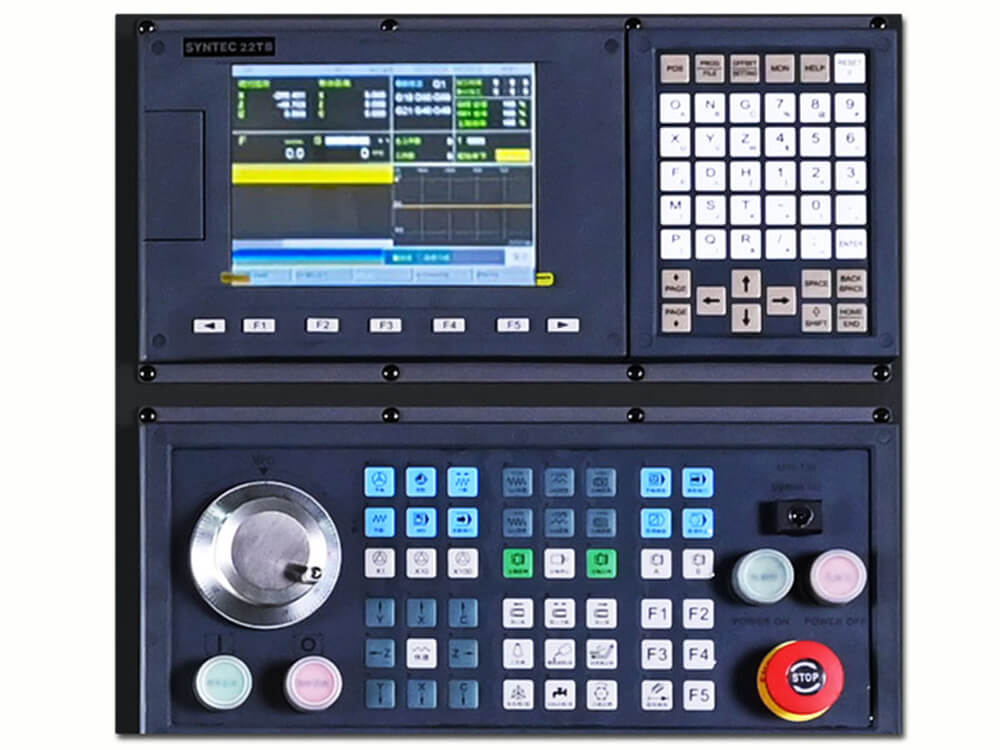

- Max. Turning Length 360mm
- Spindle Bore Dia. 66mm
- Spindle Motor Horizontal Installation
- 45-degree Overall bed
- Saddle, Motor, Flange and Bearing Seat Integrated Structure
| Item | Parameter |
| Processing Range | |
| Maximum Spindle Diameter | 400 mm |
| Maximum Diameter for Axial Parts | 105 mm |
| Minimum Distance from Chuck to Table | 7 mm |
| Maximum Distance from Chuck to Table | 267 mm |
| Table Center Height | 55 mm |
| Table Size | 550 mm × 240 mm |
| T-Slot Distance | 3-65 mm-M10 |
| Spindle | |

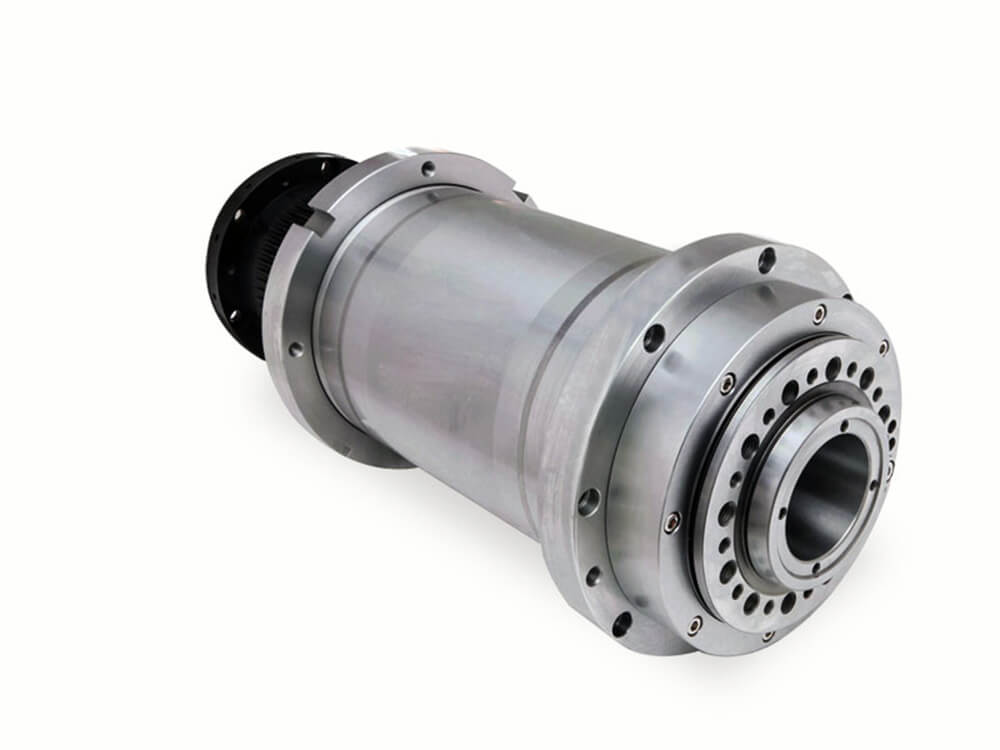

| Spindle Sleeve Outer Diameter | 170 mm |
| Spindle Nose Type | A2-5 |
| Spindle Through Hole | φ56 mm |
| Maximum Spindle Speed | 0-5000 r/min |
| Spindle Pulley Tooth Profile | SPZ/8M/8YU |
| Feed | |

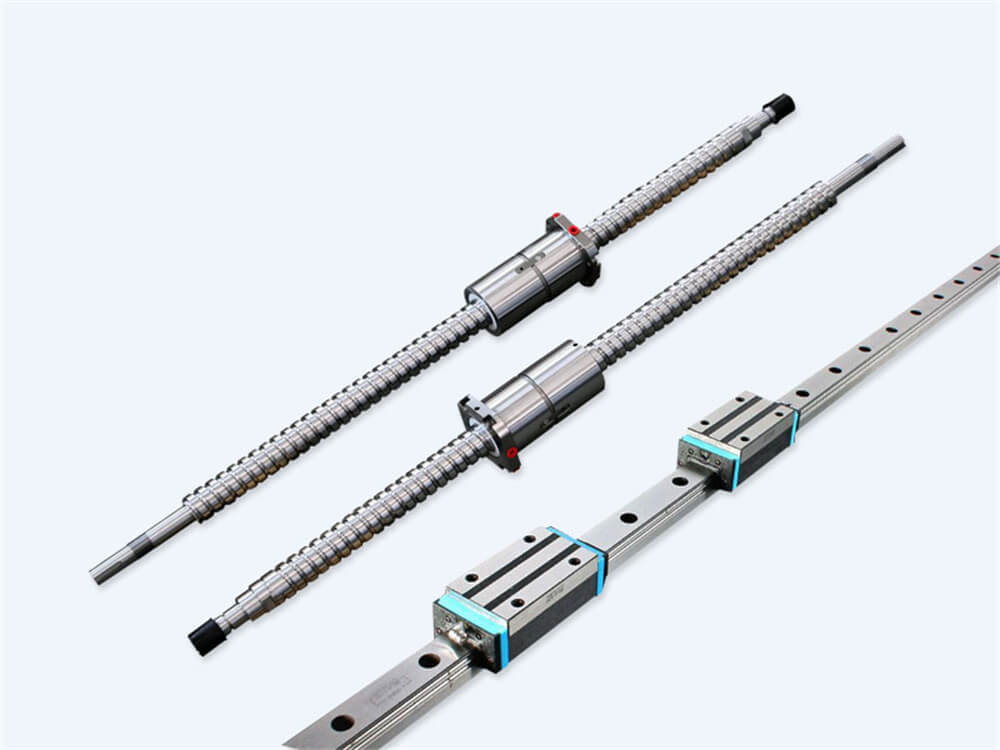

| X-Axis Rail Model | 25 Ball Bearings |
| Z-Axis Rail Model | 30 Ball Bearings |
| X-Axis Screw Model | 3210-C3 |
| Z-Axis Screw Model | 3210-C3 |
| Screw Bearing Model | 2562-P4 |
| Travel | |
| Maximum X-Axis Travel | 800 mm |
| Maximum Z-Axis Travel | 260 mm |
| Rapid Traverse Speed | |
| X-Axis Rapid Positioning | ≤24 m/min |
| Z-Axis Rapid Positioning | ≤24 m/min |
| Precision | |
| X-Axis Repetition Accuracy | ±0.003 mm |
| Z-Axis Repetition Accuracy | ±0.003 mm |
| Standard Accessories | |
| External Protection Sheet Metal | Full enclosure protection |
| Internal Protection Sheet Metal | Stainless steel full protection |
| Water Tank (Capacity) | Rear independent water tank 80L |
| Encoder Bracket | External photoelectric encoder bracket |

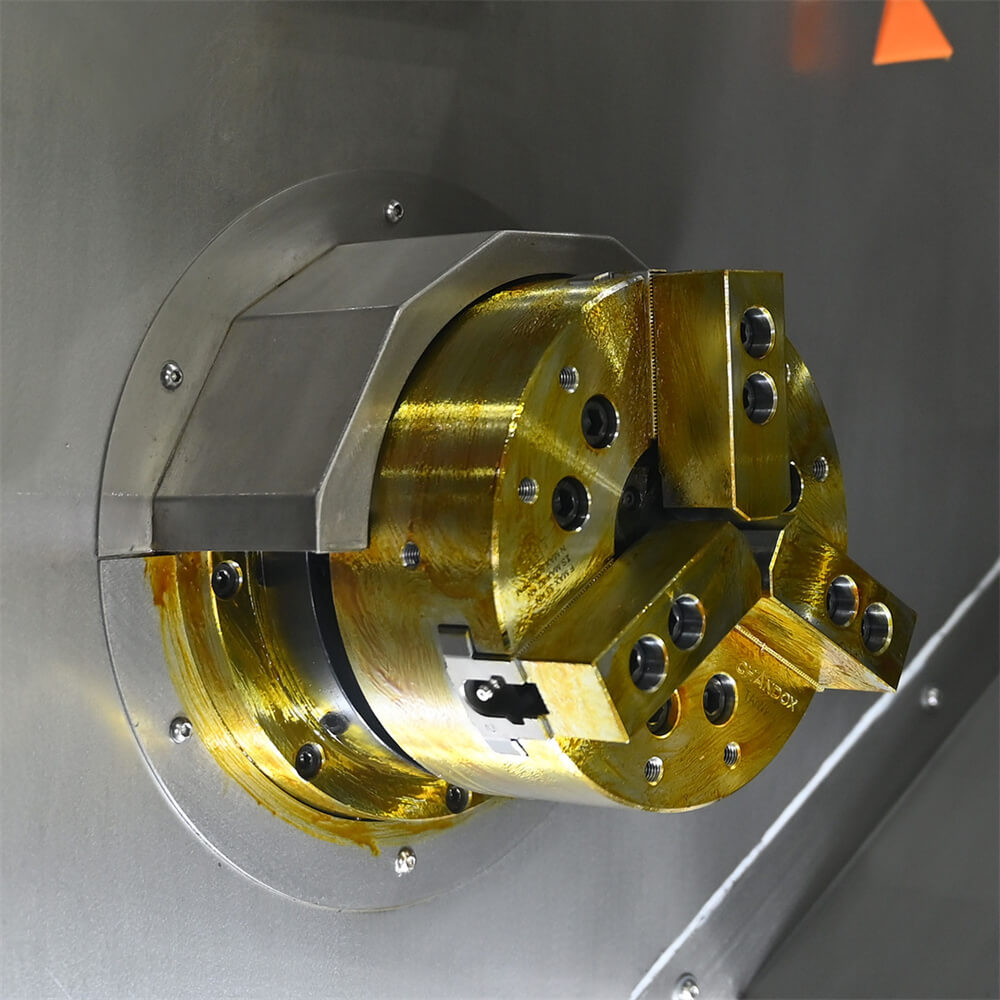

| Rotary Cylinder | 6-inch hollow, 46mm through-hole |
| Collet Body | A2-5 |
| Spindle Drawbar | M55*2-M55*2 through-hole φ46mm |
| X-axis Coupling | Spindle end φ22mm / Total length 80mm |
| Z-axis Coupling | Spindle end φ22mm / Total length 80mm |

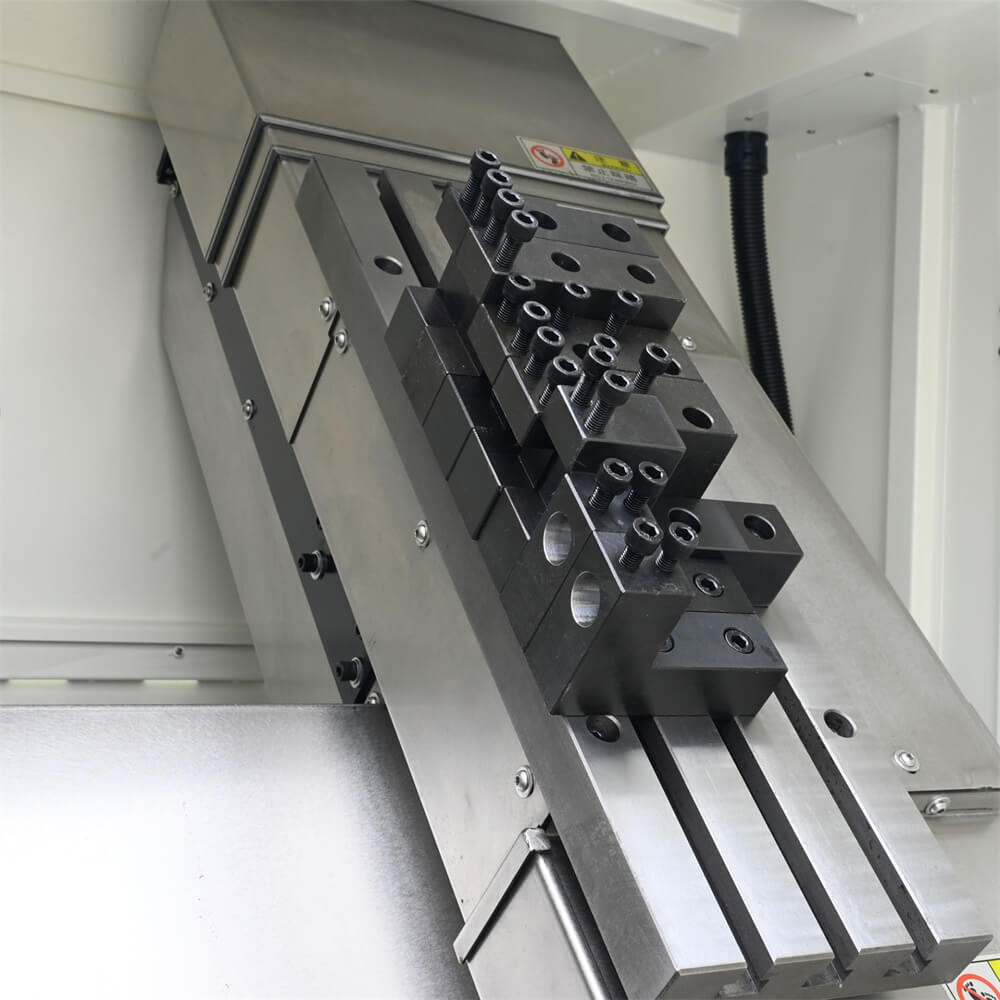

| Boring Tool Holder | 55mm center height, 20mm tool shank |
| Single Tool Holder | 55mm center height, 20mm tool square |
| Double Tool Holder | 55mm center height, 20mm tool square |
| Hydraulic Station | 1HP single route, 40L capacity |
| Thin Oil Electric Lubrication Pump | Single-phase 220V-2L, volumetric detection |
| Water Pump | Three-phase 380V immersion circulation pump |
| Optional Accessories | |
| Chip Conveyor | Side discharge or rear discharge |
| Hydraulic Chuck | A2-5 (6-inch) |
