Presses
C type precision presses
C type precision presses

Service Online:

GET QUOTE　　　>
  • Parameter
C1-200
Machine type              TYPE   V TYPE     H TYPE
Capacity                      Tons  200
Rated tonnage point     mm  6.5        3
Stroke Per Minute  Continuous        S.P.M  20-50   50-70
Intermittent       S.P.M  20
Stroke Length              mm  200        100
Die height(S.D.A.U)    mm  450       500
Slide adjustment          mm 110
Bolster area(LR×FB)    mm 1400×820×170
Slide area(LR×FB)       mm 850×630×90
Shank hole                  mm Ø65
Hole of bolster plate    mm 480×240
Main motor                KW×P 15×4
Slide adjustment        0.75×4
Die Cushion         MODEL SA-14
Capacity      Tons 14
Stroke          mm 100
Pad area       mm 710×480
Air pressure               kg/cm² 5.5
Precision GB(JIS) 1ST CLASS

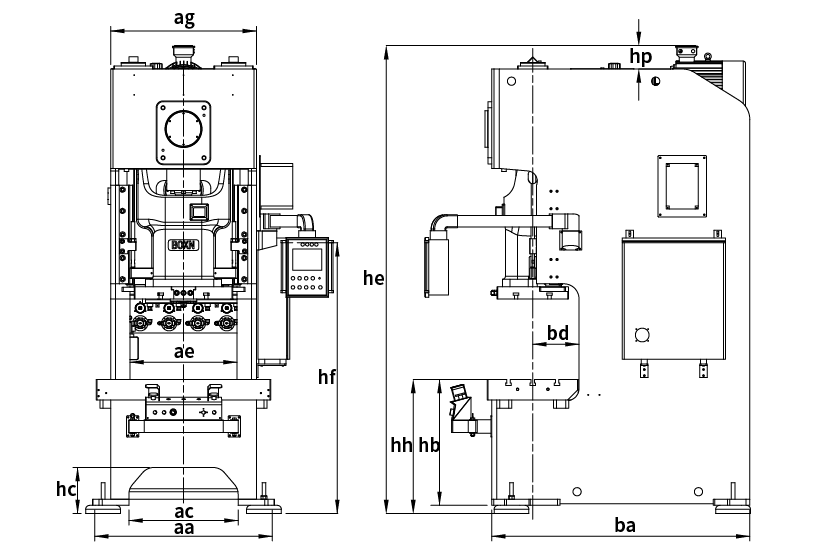

Machine dimension    L×W×H 1410×2150×3930
VIEW MORE

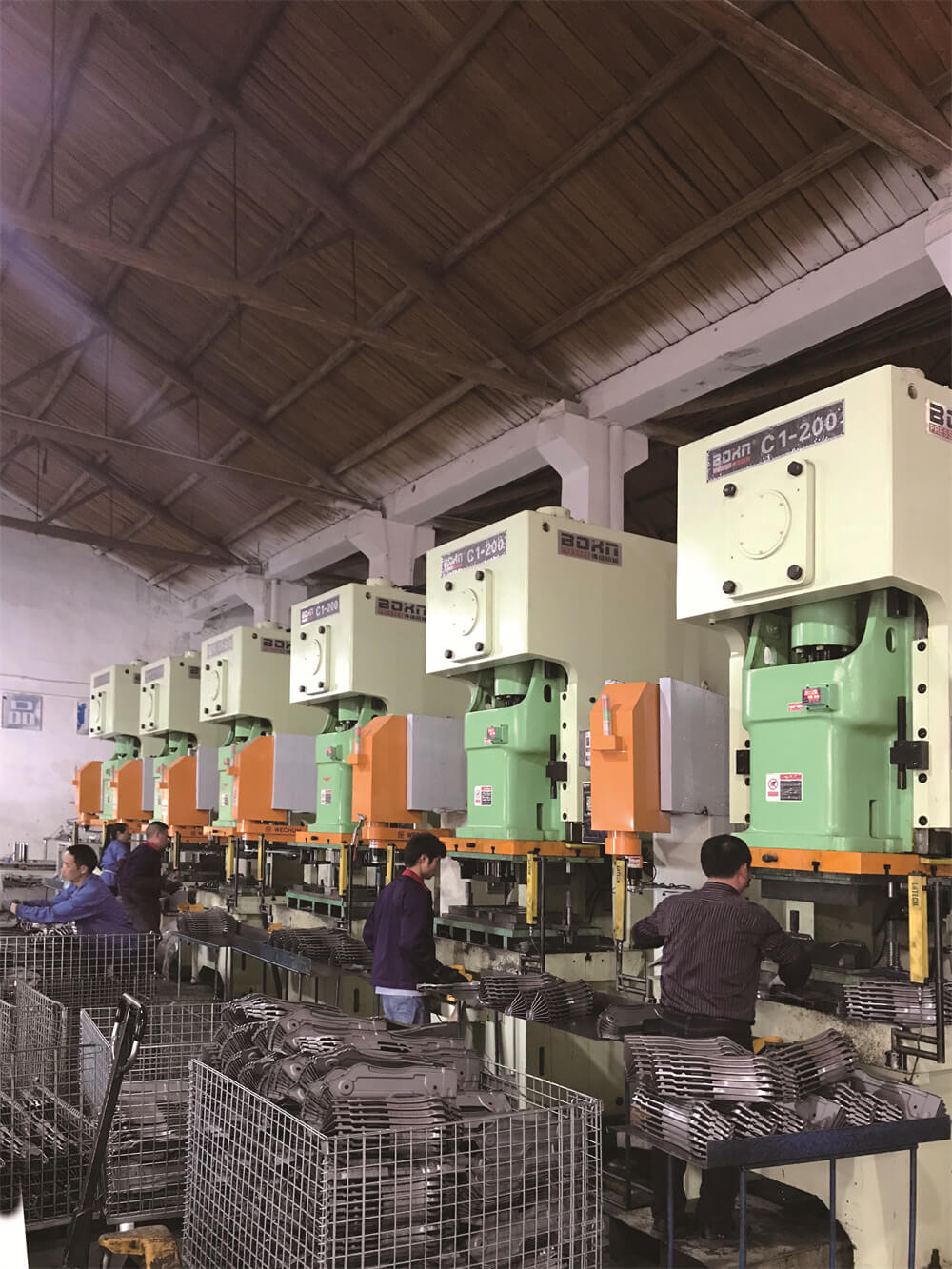

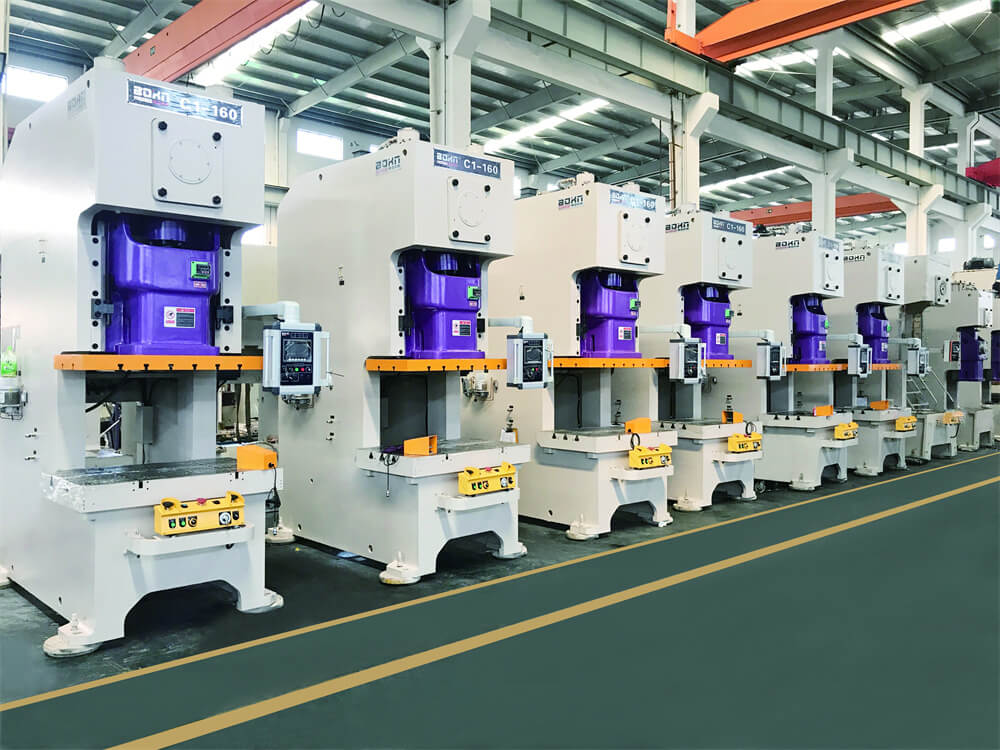

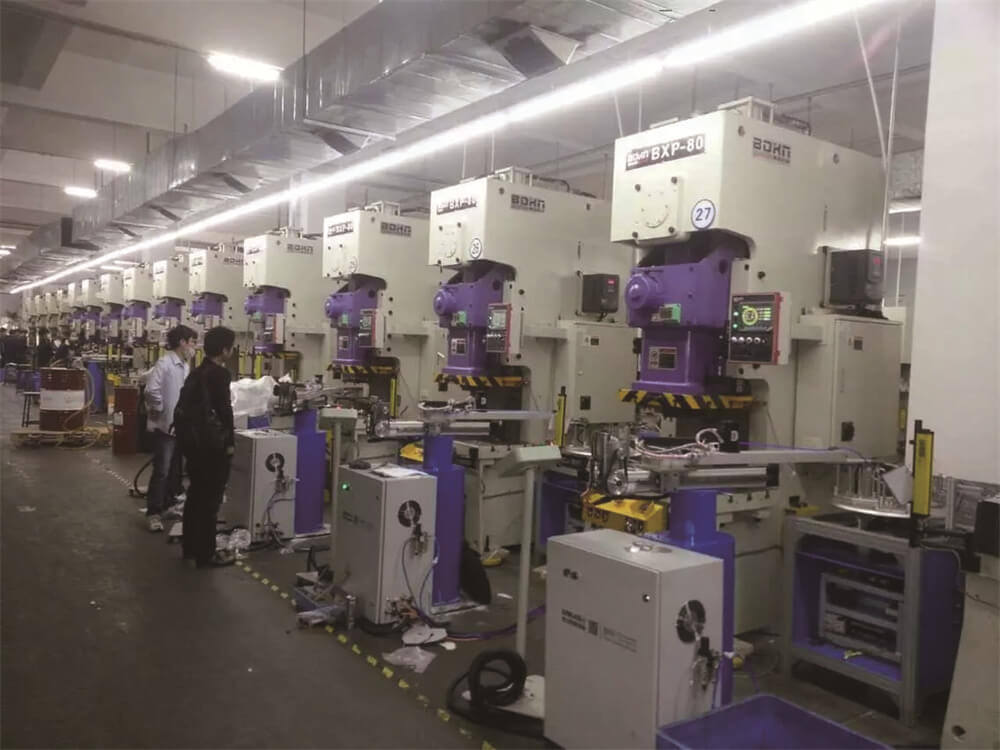

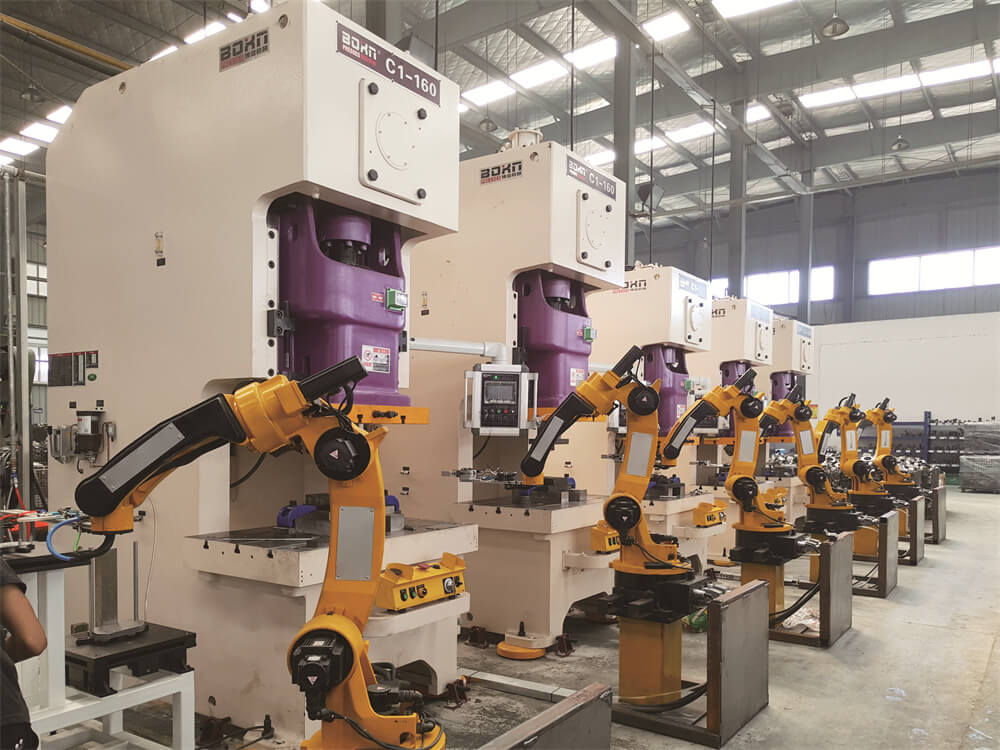

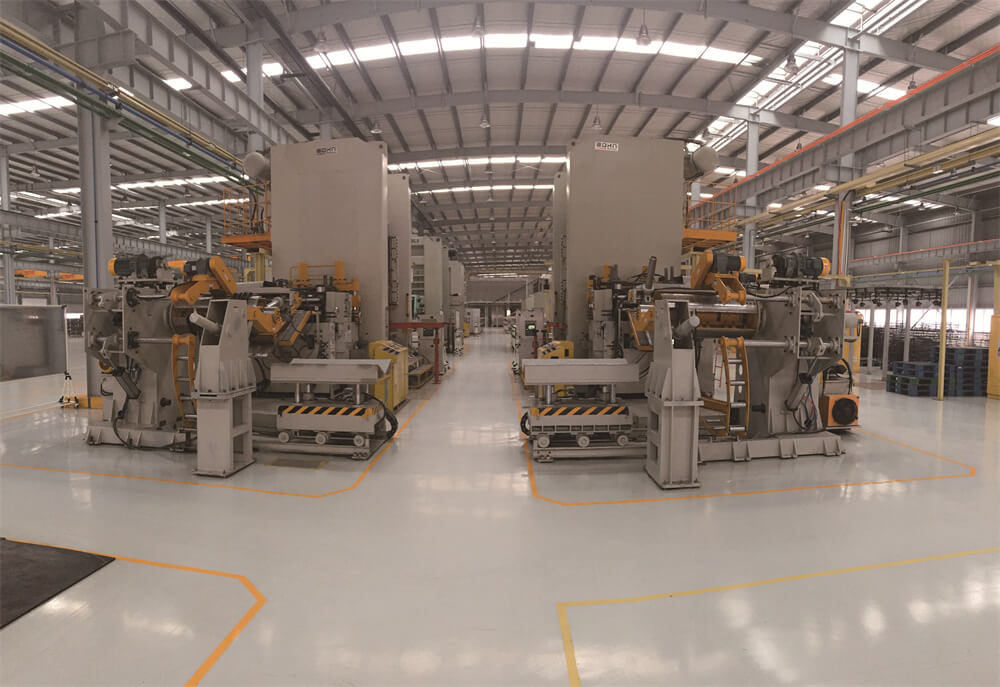

  • Product pictures
  • Configuration
Standard Equipment Optional Equipment
Hydraulic Overload protection Device Die Cushion
Automatic Slide Adjustment Device Automatic Grease Lubrication Pump
Rocker type operation panel Light Curtain
Digital Readout Die Height Knockout
Air Counter Balance Device Die Light
CAM BDC Sensor
Clutch&Brake Performance Monitoring Foot Operation Device
SPM Showing While Slide Not In Motion QDC(Die Lift/Die Arm/Die Clamper)
Maintance Instruction Feeding Line
Air Outlet Device Removable T-stand
Air Ejector Device
Overrun Protection Device
Inverter Motor
Misfeed Device
Main Motor Direction Control Device
Digital Stroke Counter
Pre-cut Counter
Pre-set Counter
Power Outlet
Anti Vibration Mount
Maintenance Toolbox
Operation Manual
VIEW MORE
