CNC Horizontal Gear Hobbing

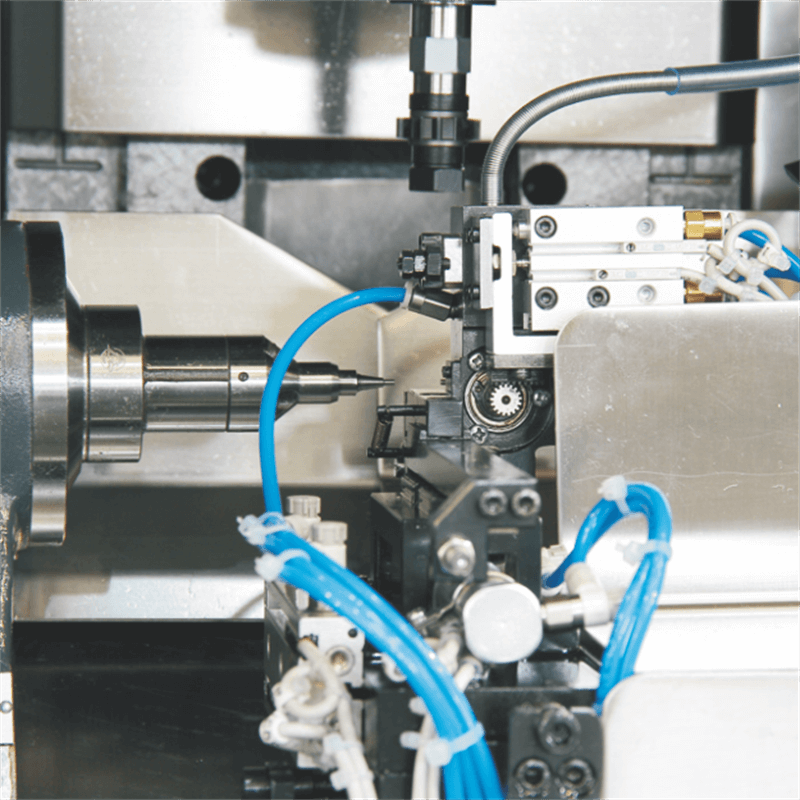

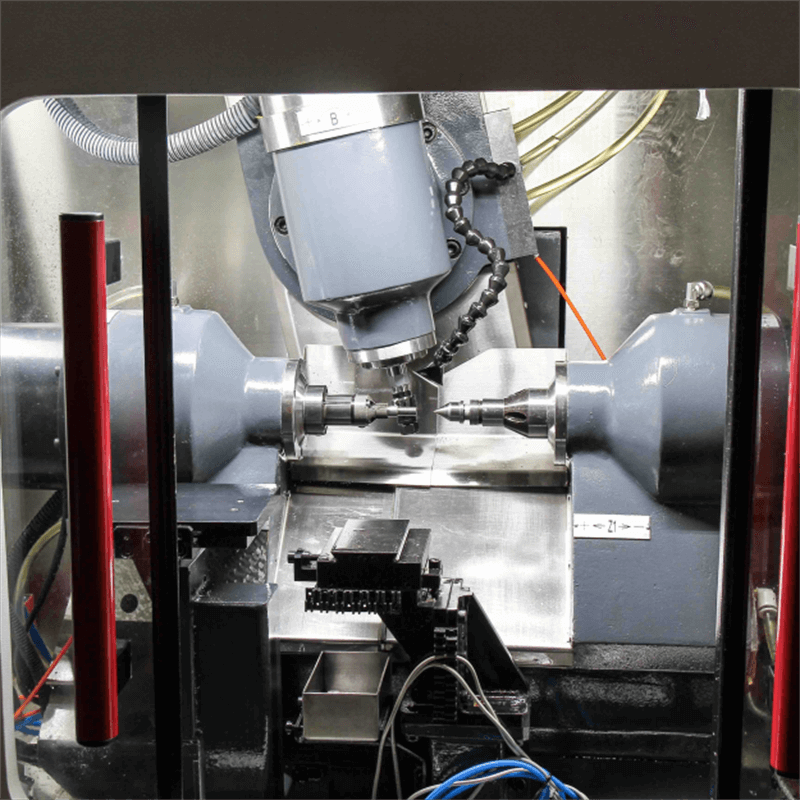

YK3603 Multifunctional Horizontal Gear Hobbing
- Max Helix Angle of ±30°
- GB6 and GB7 Grade Precision
- Compact Structure with High Rigidity
- Hob Spindle Max Speed of 15000r/min
- 8-Axis Control with 4-Axis Simultaneous Motion
Service Online:
|
Specification (Unit)
|
Remarks
|
|
Max. workpiece diameter
|
∅30 mm
|
|
Max. workpiece module
|
0.5 （0.8） mm
|
|
X-axis max. travel
|
75 mm
|
|
Y-axis max. travel
|
90 mm
|
|
Z-axis max. travel
|
75 mm
|
|
Z1-axis max. travel
|
75 mm
|
|
Processing teeth range
|
3–999 teeth
|
|
Rotational angle of hob head
|
±30° (degrees)
|
|
Max. hob diameter
|
∅25 mm
|
|
Hob arbor specification
|
∅3.5, ∅4.5, ∅5, ∅6, ∅8, ∅10 mm
|
|
X, Z axis Rapid speed
|
6 m/min
|
|
Max. machine capacity
|
Power: 6 KVA
|
|
Air supply requirement
|
Pressure: 0.5–0.7 MPa
|
|
|
Flow rate: 200 L/min
|
|
Machine footprint (L×W×H)
|
Standard model: 1650×1200×1915 mm
|
VIEW MORE
|
Standard Accessories
|
|
YK3603 Main Machine
|
|
Cooling System
|
|
Wedge
|
|
Leveling Screw
|
|
Hex Thin Nut
|
|

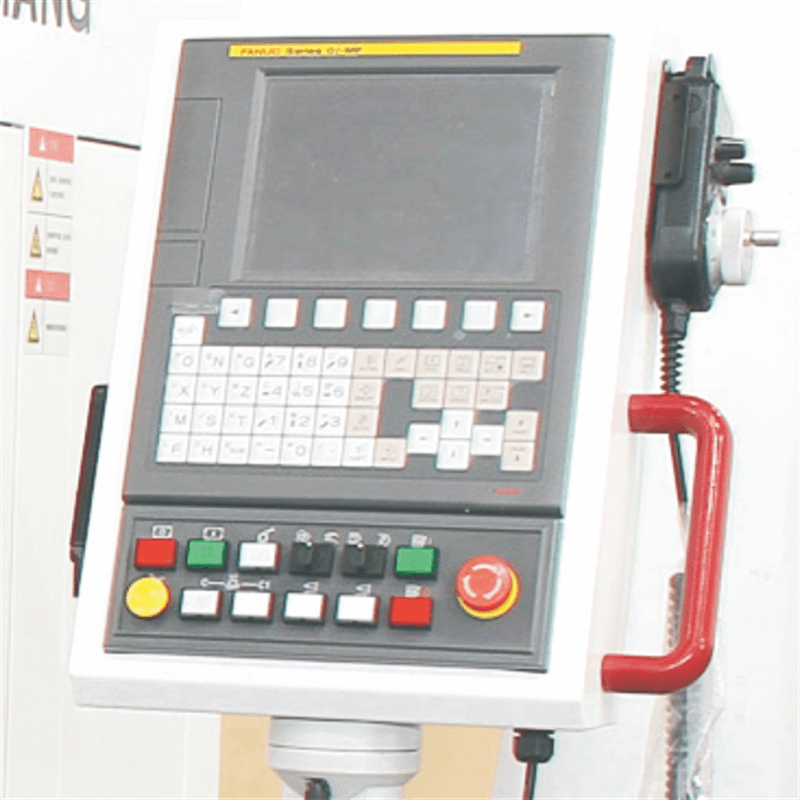

CNC System
|
|
Servo Motor
|
|
Spindle Cooling System
|
|
Lubrication System
|
|
Main Bearing
|
|
Lead Screw
|
|
Hex Key (Allen Wrench)
|
|
Double-Ended Open-End Wrench
|
|
Double-Ended Open-End Wrench (repeated)
|
|
∅8mm Long Hob Arbor
|
|
∅8mm Short Hob Arbor
|
