CNC Horizontal Gear Hobbing

YK3608 Multifunctional Horizontal Gear Hobbing

YK3608 Multifunctional Horizontal Gear Hobbing

- Max Helix Angle of ±40°
- GB6 and GB7 Grade Precision
- Compact Structure with High Rigidity
- Hob Spindle Max Speed of 2000r/min
- 5-Axis Control with 4-Axis Simultaneous Motion

Service Online:

GET QUOTE　　　>

Parameter

Specification (Unit)	Remarks
Max. workpiece diameter	∅80 (∅100) mm
Max. workpiece module	2 mm
X-axis max. travel	65 mm
Y-axis max. travel	60 mm
Z-axis max. travel	150 mm
Processing teeth range	3–999 teeth
Rotational angle of hob head	±40° (degrees)
Hob arbor specification	∅8, ∅10 ∅13, ∅16 mm
Max. hob size (diameter × length)	63×60 mm
Rapid feed speed for X, Z, W axes	6 m/min
Workpiece spindle motor	Rated power: 1.4 Kw
	Rated torque: 10.5 N.m
	Max. speed: 500 r/min
Hob spindle motor	Rated power: 1.4 KW
	Rated torque: 10.5 N.m
	Max. speed: 2000 r/min
X, Y axis servo motors	Rated torque: 3.5 N.m
	Rated power: 0.75 Kw
Z axis servo motors	Rated torque: 7 N.m
	Rated power: 1.2 Kw
Max. machine capacity	Power: 10 KVA
Air supply requirement	Pressure: 0.5–0.7 MPa
	Flow rate: 100 L/min
Machine footprint (L×W×H)	Standard model: 1950×1285×1980 mm
Main machine packing dimensions (L×W×H)	Standard model: 2260×1950×2490 mm
Machine net weight/gross weight	2800/3000 kg

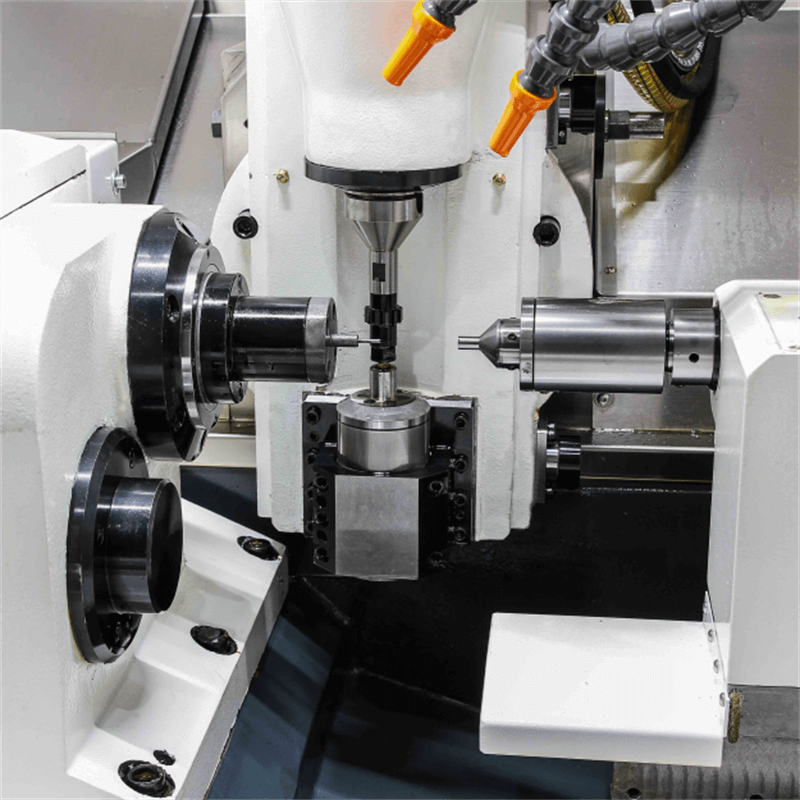

Product pictures

Configuration

Standard Accessories		Optional Accessories
CNC Horizontal Gear Hobbing Machine (Main Unit)		Oil Mist Separator
Fixed Dead Center		Deburring Device
∅13mm Hob Arbor		Secondary Tool Setting Device
Standard Collet Chuck Assembly		Accessory Mounting Guide Rail
Machine Worklight		Fixed Morse Taper Socket
LED Signal Light		Round Shank Rotary Center
Magnetic Roller Chip Conveyor		Magnetic Scraper-Type Chip Conveyor
Hydraulic Station		Automatic Loading/Unloading Interface
Technical Manual		Electrical Cabinet Air Conditioner
		Hob Arbor
		Fixtures
