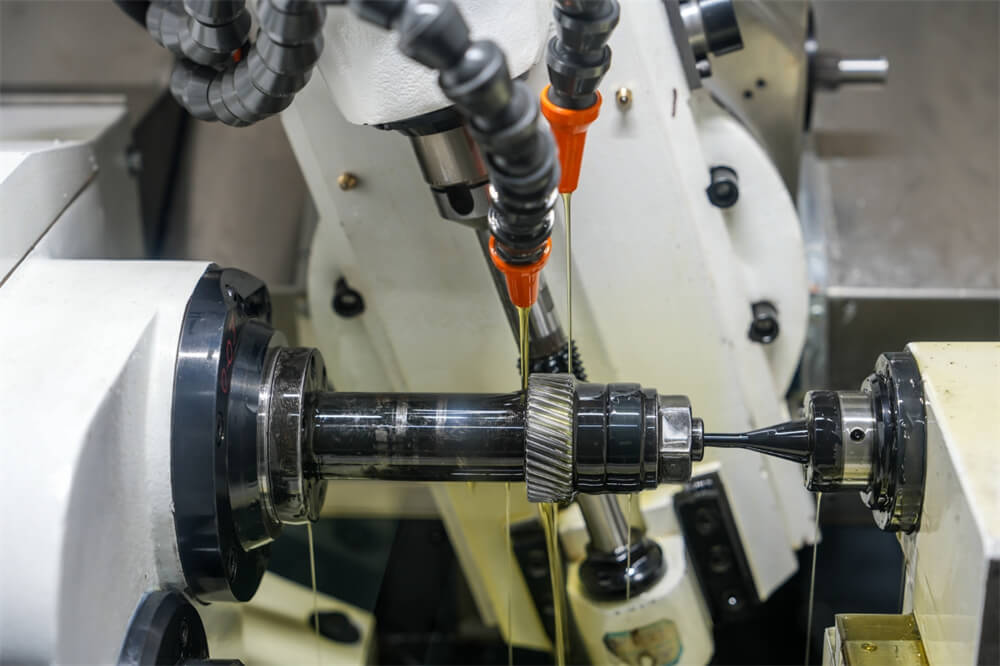

CNC Horizontal Gear Hobbing

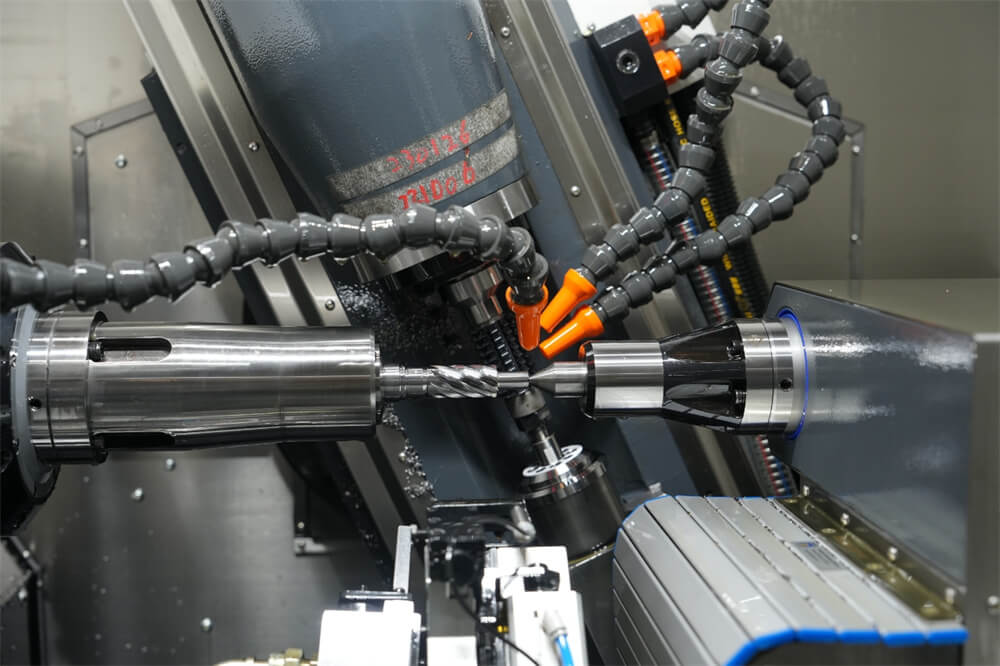

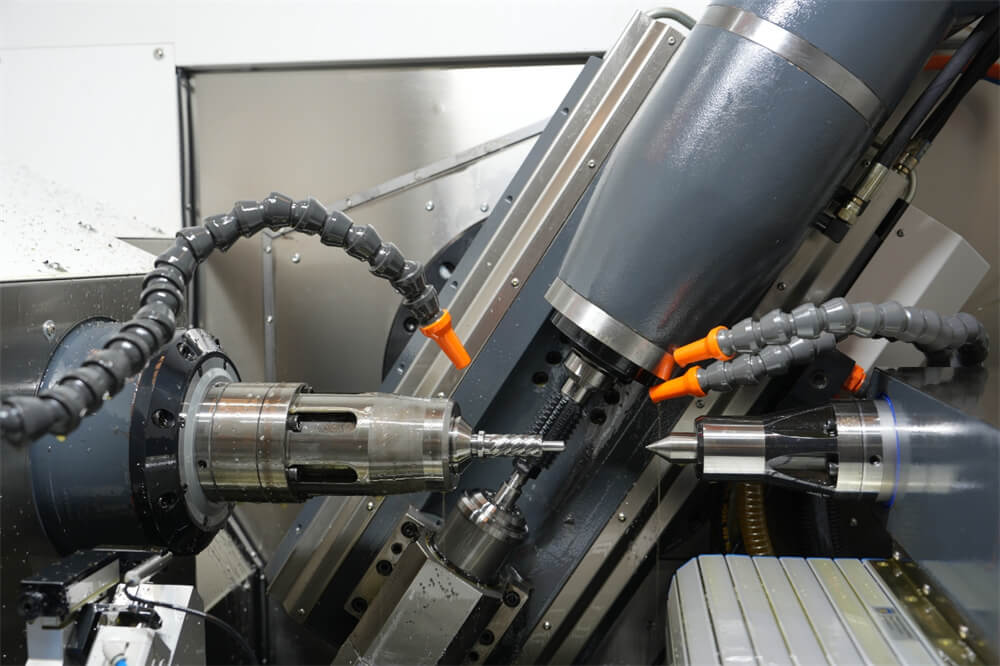

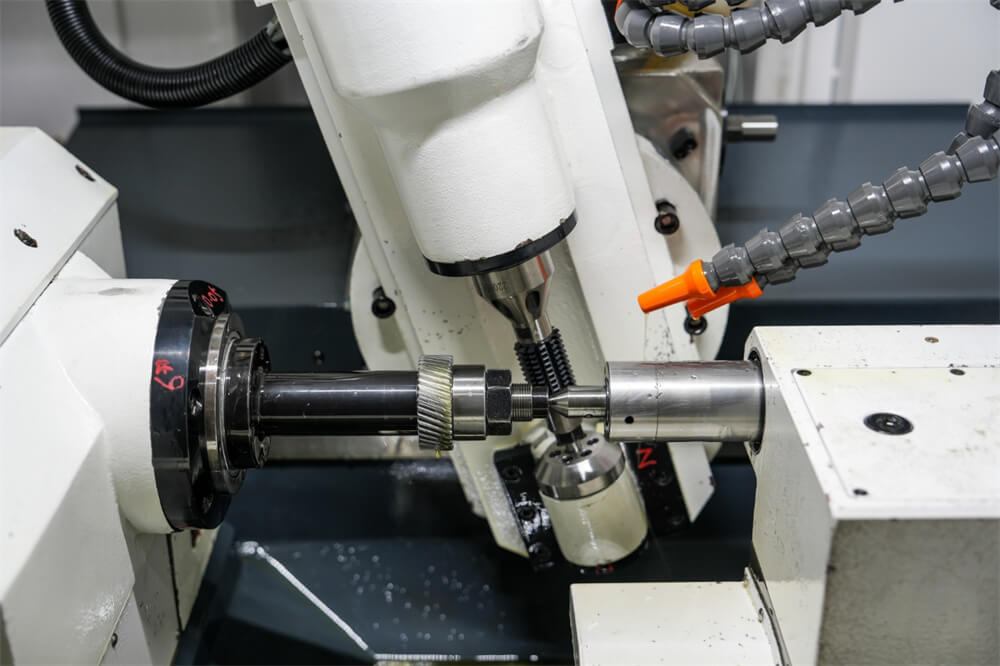

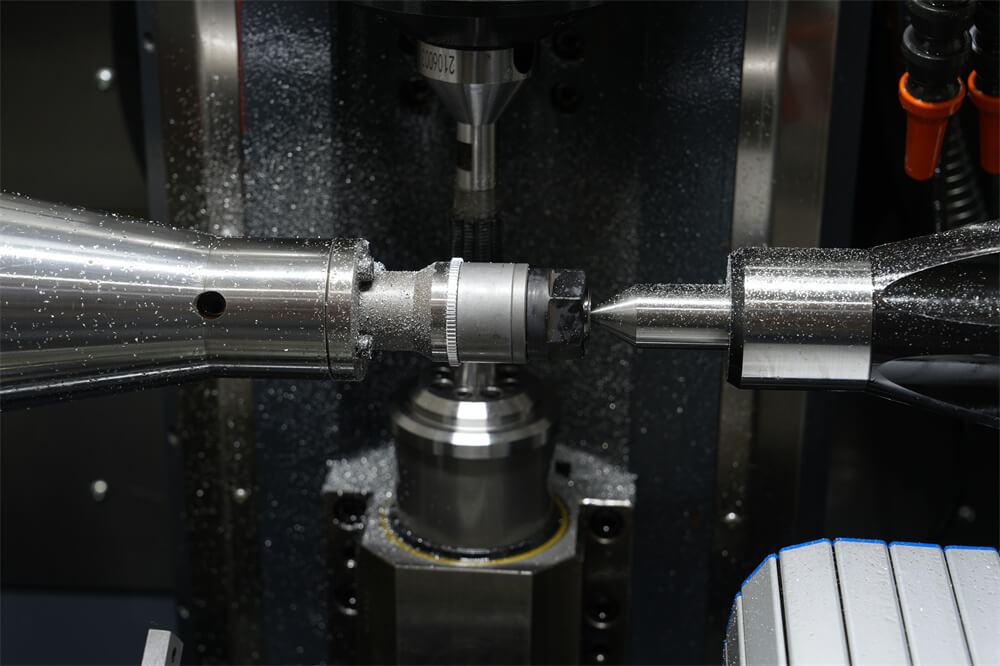

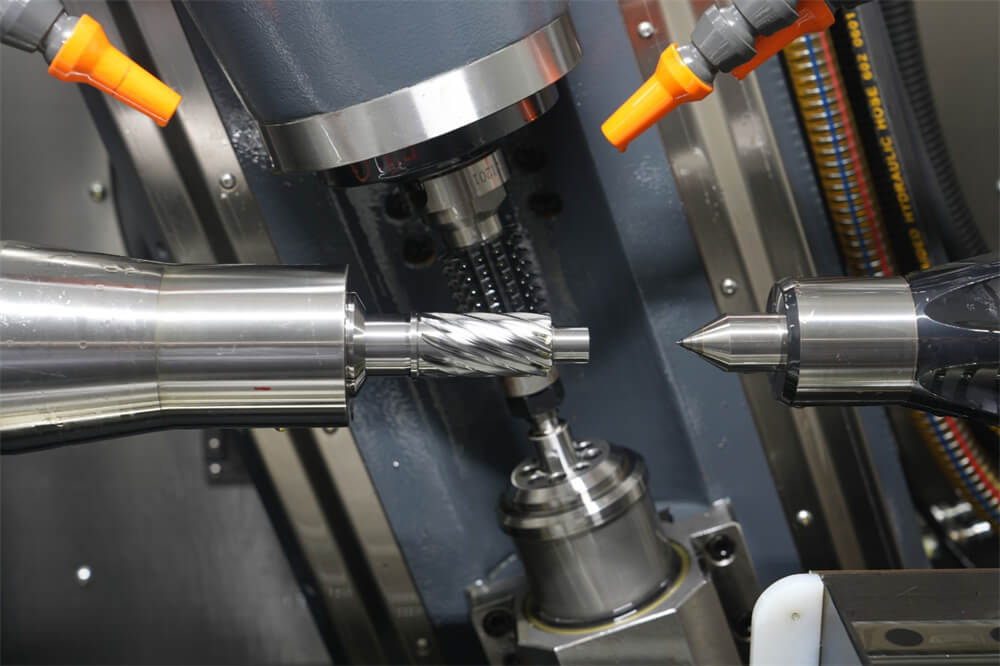

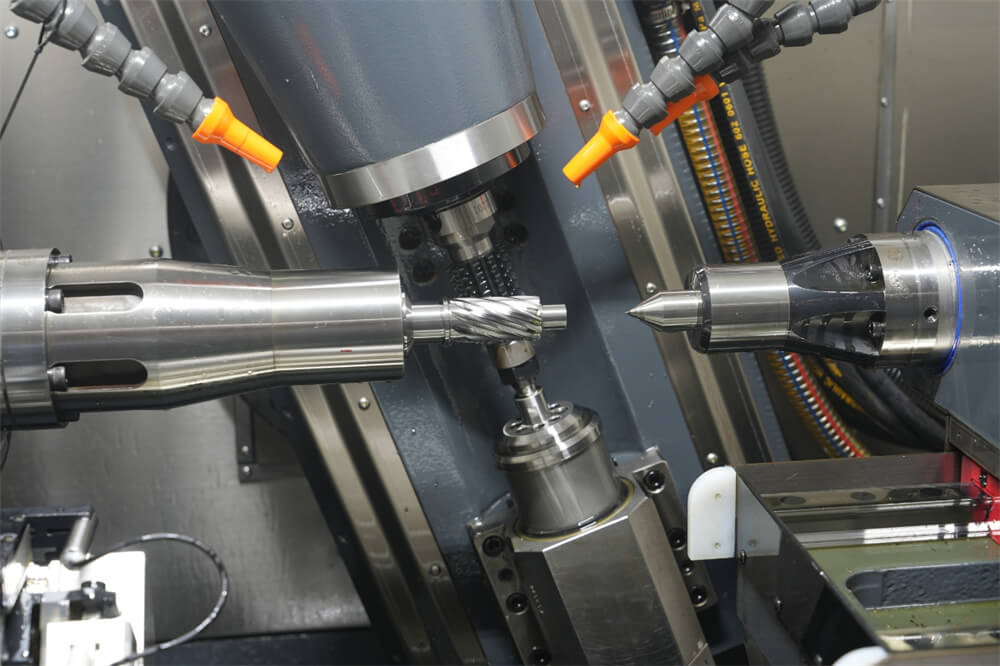

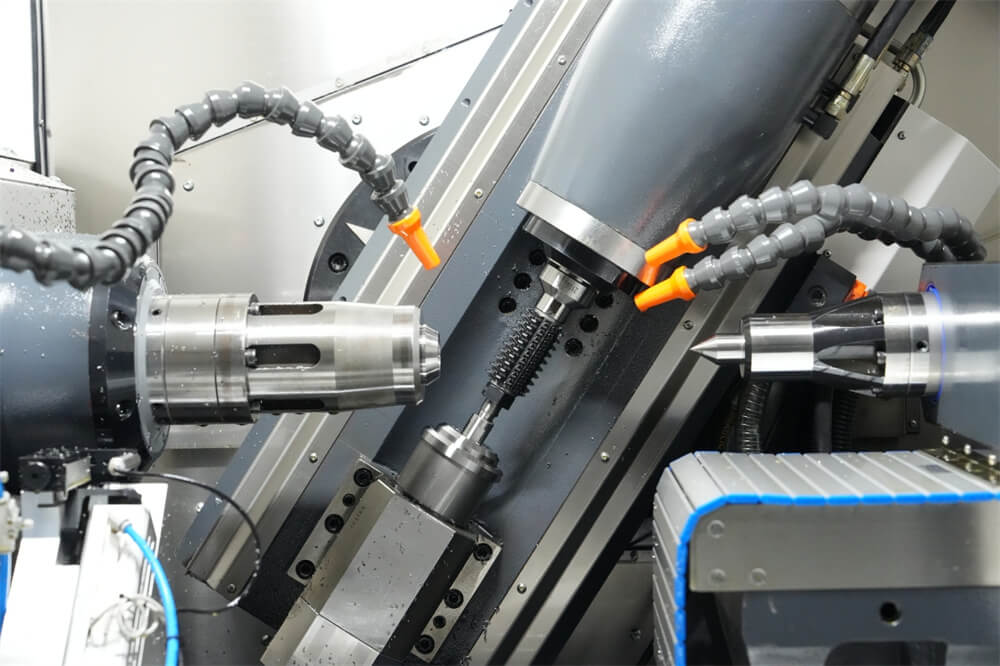

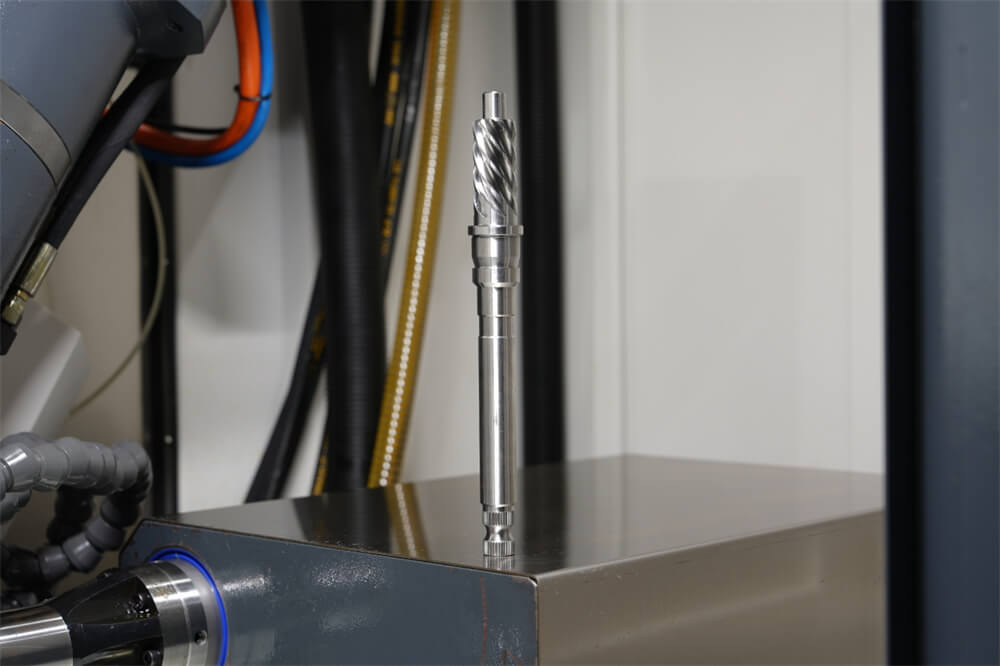

YK3608 I Multifunctional Horizontal Gear Hobbing
- Max Helix Angle of -40~-65°
- GB6 and GB7 Grade Precision
- Compact Structure with High Rigidity
- Hob Spindle Max Speed of 2000r/min
- 5-Axis Control with 4-Axis Simultaneous Motion
Service Online:
|
Specification (Unit)
|
Remarks
|
|
Max. workpiece diameter
|
∅80 (∅100) mm
|
|
Max. workpiece module
|
1.5 mm
|
|
X-axis max. travel
|
65 mm
|
|
Y-axis max. travel
|
60 mm
|
|
Z-axis max. travel
|
150 mm
|
|
Processing teeth range
|
3–750 teeth
|
|

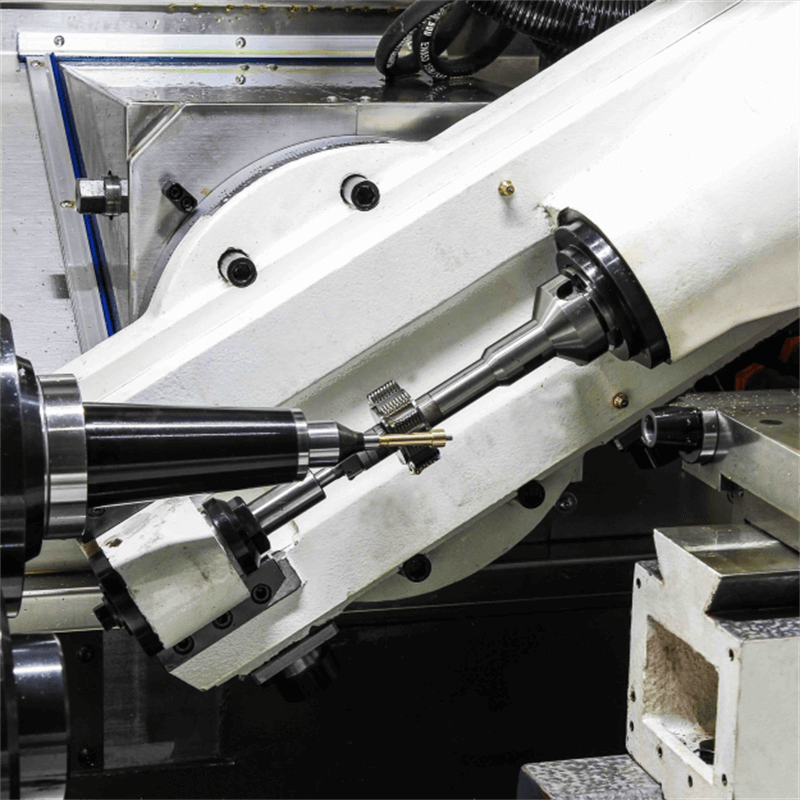

Rotational angle of hob head
|
-40～+65° (degrees)
|
|
Hob arbor specification
|
∅10 ∅13 mm
|
|
Max. hob size (diameter × length)
|
63×60 mm
|
|
Rapid feed speed for X, Z, W axes
|
6 m/min
|
|
Workpiece spindle motor
|
Rated power: 1.4 Kw
|
|
|
Rated torque: 10.5 N.m
|
|
|
Max. speed: 500 r/min
|
|
Hob spindle motor
|
Rated power: 1.4 KW
|
|
|
Rated torque: 10.5 N.m
|
|
|
Max. speed: 2000 r/min
|
|
X, Y axis servo motors
|
Rated torque: 3.5 N.m
|
|
|
Rated power: 0.75 Kw
|
|
Z axis servo motors
|
Rated torque: 7 N.m
|
|
|
Rated power: 1.2 Kw
|
|
Max. machine capacity
|
Power: 10 KVA
|
|
Air supply requirement
|
Pressure: >0.5 MPa
|
|
|
Flow rate: 100 L/min
|
|
Machine footprint (L×W×H)
|
Standard model: 1950×1285×1980 mm
|
|
Main machine packing dimensions (L×W×H)
|
Standard model: 2260×1950×2490 mm
|
|
Machine net weight/gross weight
|
2800/3000 kg
|
VIEW MORE
|
Standard Accessories
|
Optional Accessories
|
|
CNC Horizontal Gear Hobbing Machine (Main Unit)
|
Oil Mist Separator
|
|
Fixed Dead Center
|
Automatic Loading/Unloading Interface
|
|
∅13mm Hob Arbor
|
Electrical Cabinet Air Conditioner
|
|
Machine Worklight
|
Hob Arbor
|
|
LED Signal Light
|
Fixtures
|
|
Magnetic Roller Chip Conveyor
|
|
|
Hydraulic Station
|
|
|
Technical Manual
|
|
