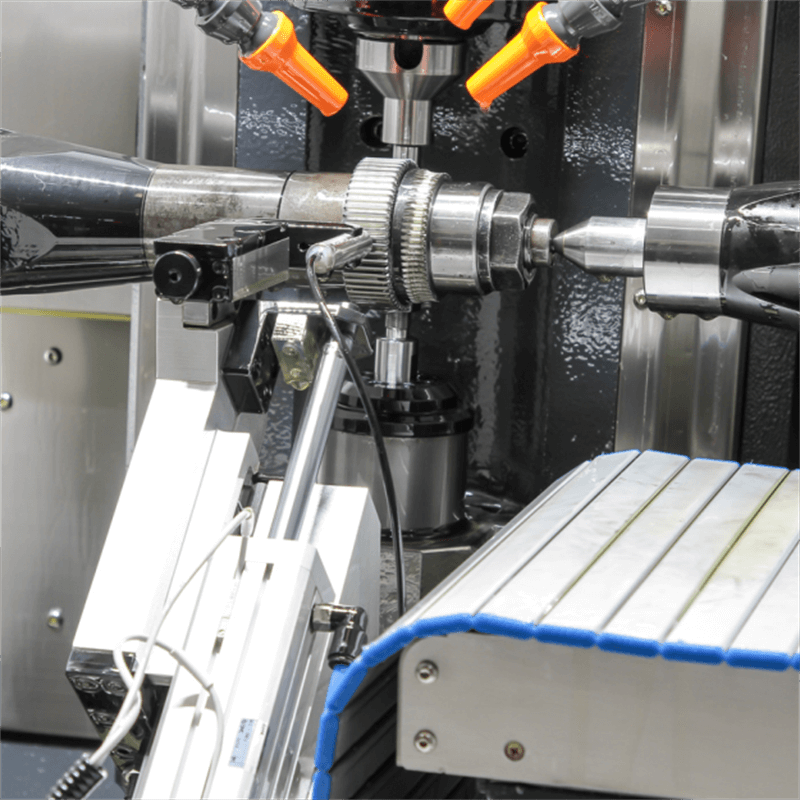

CNC Horizontal Gear Hobbing
YK3610IV Multifunctional Horizontal Gear Hobbing
- Max Helix Angle of ±45°
- GB6 and GB7 Grade Precision
- Compact Structure with High Rigidity
- Hob Spindle Max Speed of 4000r/min
- 7-Axis Control with 4-Axis Simultaneous Motion
Service Online:
|
Specification (Unit)
|
Remarks
|
|
Max. workpiece diameter
|
∅100 (∅120) mm
|
|
Max. workpiece module
|
3 mm
|
|
X-axis max. travel
|
85 mm
|
|
Y-axis max. travel
|
100 mm
|
|
Z-axis max. travel
|
280 mm
|
|
W-axis max. travel
|
225 mm
|
|
Processing teeth range
|
3–999 teeth
|
|
Rotational angle of hob head
|
±45° (degrees)
|
|
Hob arbor specification
|
∅10, ∅13, ∅16, ∅22, ∅27 mm
|
|
Max. hob size (diameter × length)
|
80×110 mm
|
|
Rapid feed speed for X, Z, W axes
|
8 m/min
|
|
Workpiece spindle motor
|
Rated torque: 70 N.m
|
|
|
Max. speed: 600 r/min
|
|
Hob spindle motor
|
Rated power: 5.5 KW
|
|
|
Rated torque: 35.8 N.m
|
|
|
Max. speed: 4000 r/min
|
|
X, Z, A axis servo motors
|
Rated torque: 10.5 N.m
|
|
A-axis transmission ratio
|
7//1
|
|
W, Y axis servo motors
|
Rated torque: 3.5 N.m
|
|
Y-axis transmission ratio
|
8//1
|
|
Max. machine capacity
|
Current: 75 A
|
|
|
Power: 25 KVA
|
|
Air supply requirement
|
Pressure: 0.5–0.7 MPa
|
|
|
Flow rate: 200 L/min
|
|
Machine footprint (L×W×H)
|
Standard model (see layout) mm
|
|
|
Automated loading/unloading (optional)
|
|
Main machine packing dimensions (L×W×H)
|
Standard model: 2460×2540×2610 mm
|
|
|
Automated loading/unloading (optional): 3800×2750×2800 mm
|
|
Machine net weight/gross weight
|
6000/6500 kg
|
VIEW MORE
|
Standard Accessories
|
Optional Accessories
|
|
YK3610IV Main Machine
|
Deburring Device
|
|
Fixed Dead Center
|
Secondary Tool Setting Device
|
|
Fixed Half Center
|
Accessory Mounting Guide Rail
|
|
0314-180 Chuck Holder Assembly
|
Bracket Attachment
|
|
∅13mm Hob Arbor
|
Rotary Tailstock Device
|
|
Machine Worklight
|
Flexible Rotary Tailstock
|
|
Signal Light
|
Oil Mist Separator
|
|
Magnetic Roller-Type Chip Conveyor
|
Electrical Cabinet Air Conditioner
|
|
Oil Cooler
|
Magnetic Scraper-Type Chip Conveyor
|
|
Tools and Toolbox
|
Power Failure Protection Device
|
|
|
Tangential Tool Holder
|
|
|
Tool Air Cooling Device
|
|
|
External Tool Calibration Device
|
|
|
Series of Reverse-Pull Fixtures,
|
|
|
Hob Arbor
|
|
|
Fixtures
|
