- Max. Turning Length 400mm
- Spindle Bore Dia. 66mm

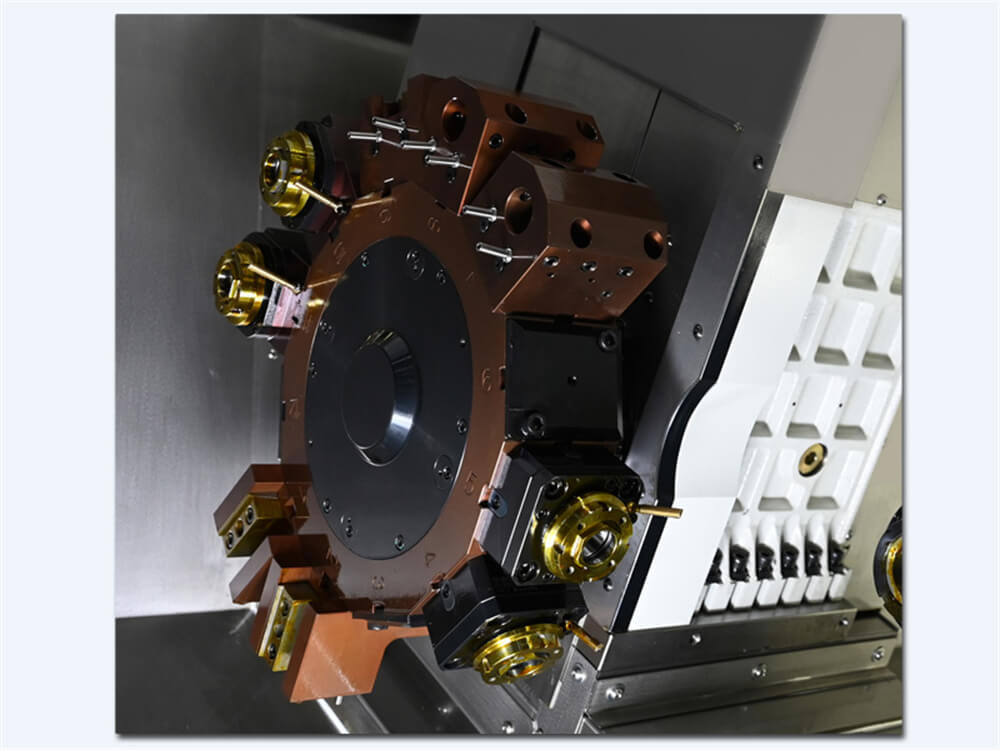

- Equipped with a hardened Y-axis power turret

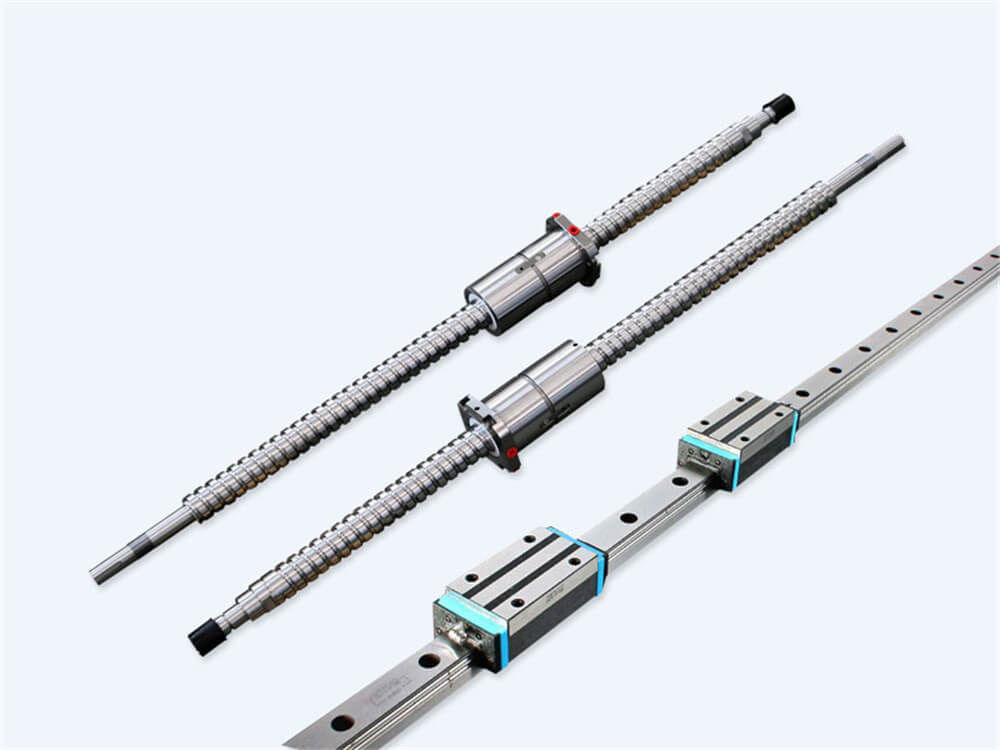

- Equipped with reinforced P3-class ball screws
- Z-axis adopts a configuration with six sliders
| Name | Parameter |
| Maximum Turning Diameter (Bed) | Φ520 mm |
| Maximum Processing Diameter (Disc) | Φ300 mm |
| Maximum Processing Diameter (Shaft) | Φ300 mm |
| Maximum Workpiece Length | 240mm |
| Maximum Bar Through-hole Diameter | Φ45 mm |
| X-axis Effective Travel | 220mm |
| Z-axis Effective Travel | 325mm |
| Y-axis Effective Travel | 100mm |
| X, Z-axis Rapid Traverse | 30 (M/Min) |
| X,Y, Z-axis Servo Motor | 15/8/15NM |
| Drive Servo Motor | 17.5NM/4000rpm |
| Spindle Nose Type | A2-5 |
| Spindle Through-hole Diameter | Φ56 mm |
| Maximum Spindle Speed | 6000 rpm |
| Spindle Motor Power | 7.5 Kw |
| Chuck and Rotary Cylinder Spec | 6 inches |
| X, Z-axis Positioning Accuracy | ±0.004mm |
| X, Z-axis Re-positioning Accuracy | ±0.002mm |
| Tool Holder Specification | □25*25 |
| Power Tool Turret Specifications | MBT55 |
| Tool Holder Opposite Side Dimension | 330 |
| Boring Bar Specification | Φ32 |
| Turret | 12 Positions |
| Bed Structure Type | 30°Integral Slant Bed |
| Dimensions (L×W×H) | 2130*1750*1900 mm |
| Weight | 2500kg |
| Standard Accessory | Remarks | Optional Accessories |

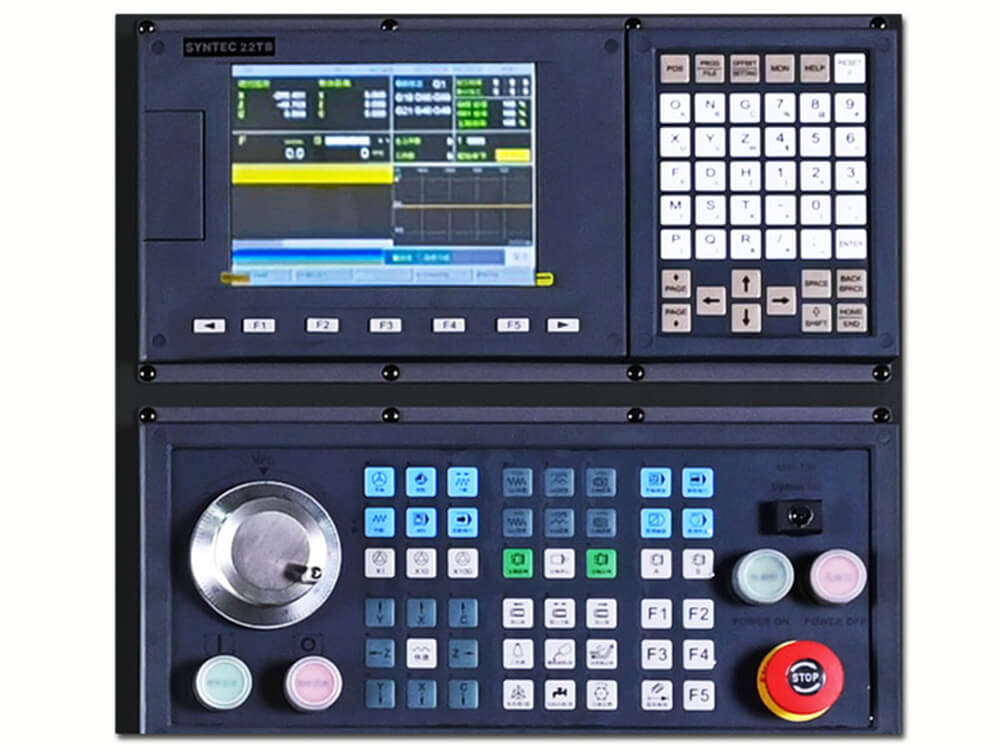

| CNC System | SYNTEC 22TB | Control & Drive/Electrical |
| Servo Main Motor | SYNTEC | Hydraulic System/Spindle/Tool Post |
| X, Z-axis Servo Motors | SYNTEC | Automatic Chip Conveyor |

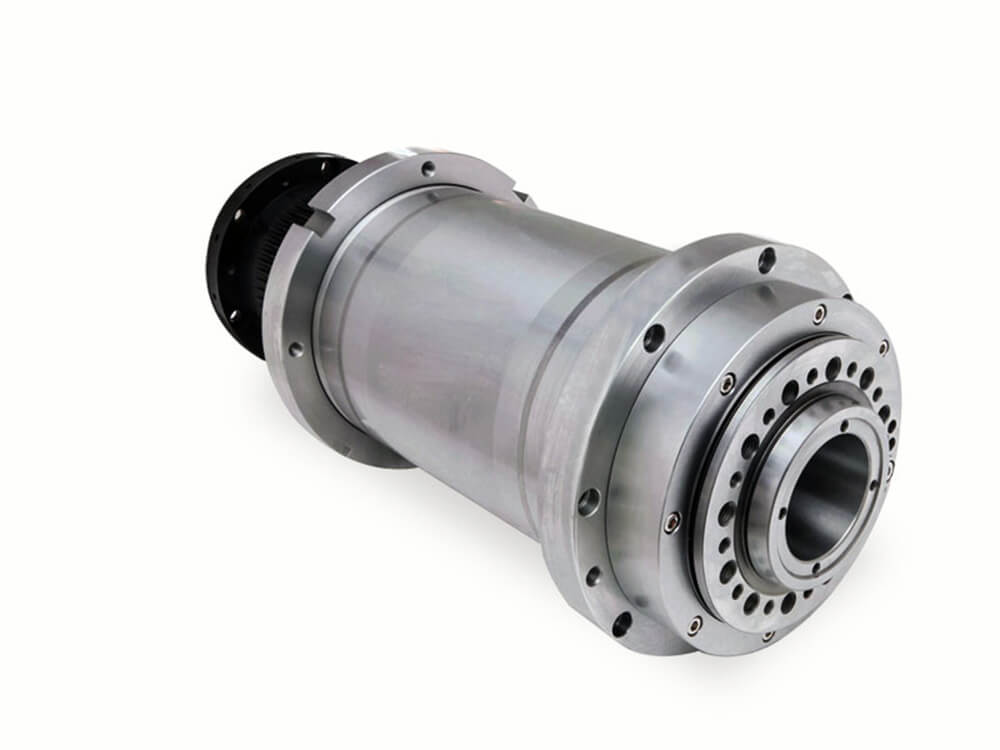

| Spindle | Oil Bath Automatic Feeder | |
| Spindle Bearings | YOKO | Automatic Receiver |
| Ball Screw Bearings | NACHI | Single-Part Automatic Feeder |
| Linear Guides |
X Axis: 35 Roller Z Axis: 35 Roller |
Robotic Arm |
| Ball Screws |
X Axis:3210 Z Axis: 3210 |
Tool Post |
| Rotary Cylinder | Power System | |

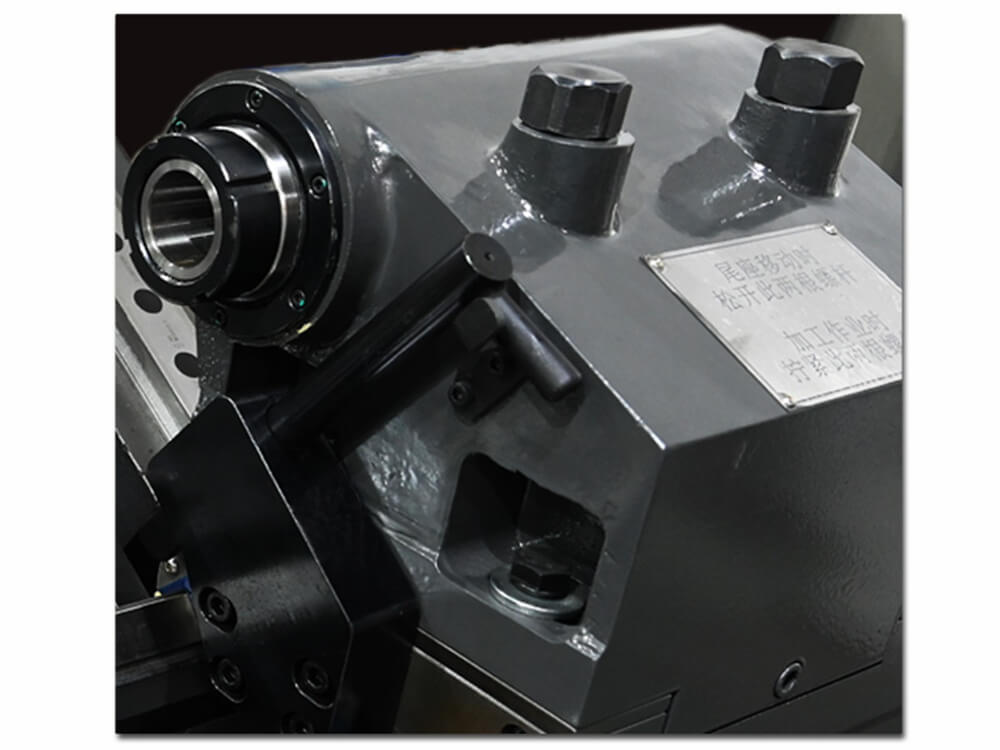

| Hydraulic Chuck | Manual HYdraulic Tailstock | |
| Vertical Y-Axis Power Turret | ||
| Automatic Lubrication System | ||
| Cooling System | ||
| Heat Exchanger | ||
| Alarm Light | ||
| Electrical Components | ||
| Technical Manual |
