- Max. Turning Length 1020mm
- Spindle Bore Dia. 86mm
- 30-degree slant bed saddle structure
- Equipped with reinforced P3-class ball screws
- Z-axis adopts a configuration with six sliders

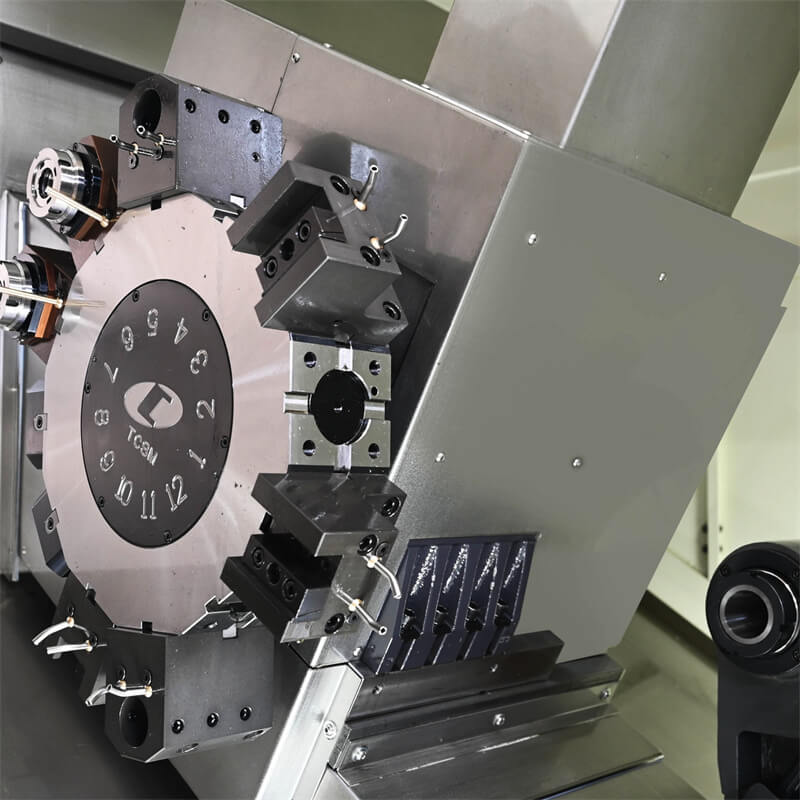

- Equipped with a hardened Y-axis power turret
| Project | Name | Parameter |
| Processing Range | Maximum Turning Diameter (Bed) | Φ580 mm |
| Maximum Processing Diameter (Disc) | Φ450 mm | |
| Maximum Workpiece Length | 1020mm | |
| Maximum Bar Through-hole Diameter | Φ75 mm | |
| The Distance Between Centers | 1050mm | |
| Travel and Fastest Feed | X-axis Effective Travel | 300mm |
| Z-axis Effective Travel | 1100mm | |
| Y-axis Effective Travel | 100mm | |
| X, Z-axis Rapid Traverse | 20 (M/Min) | |
| X,Y, Z-axis Servo Motor | 18/8/18NM | |
| Drive Servo Motor | 17.5NM/6000rpm | |
| Spindle | Spindle Nose Type | A2-8 |
| Spindle Through-hole Diameter | Φ86 mm | |
| Maximum Spindle Speed | 3000 rpm | |
| Spindle Motor Power | 18.5 Kw | |
| Chuck and Rotary Cylinder Spec | 10 inches | |
| Processing Accuracy | X, Z-axis Positioning Accuracy | ±0.004mm |
| X, Z-axis Re-positioning Accuracy | ±0.002mm | |
| Hydraulic Tailstock | Tailstock Sleeve Specification | MT-6 |
| Tailstock Sleeve Travel | 120mm | |
| Tailstock Movement | Saddle Driven, Hydraulic Lock | |
| Servo Turret | Tool Holder Specification | □25*25 |
| Power Tool Turret Specifications | MBT55 | |
| Tool Holder Opposite Side Dimension | 350 | |
| Boring Bar Specification | Φ40 | |
| Turret | 12 Positions | |
| Others | Bed Structure Type | 30°Integral Slant Bed |
| Dimensions (L×W×H) | 3220*1910*2120 mm | |
| Weight | 6600kg |
| Standard Accessory | Remarks | Optional Accessories |
| CNC System | GSK | Control & Drive/Electrical |
| Servo Main Motor | GSK | Hydraulic System/Spindle/Tool Post |
| X, Z-axis Servo Motors | GSK18Nm | Automatic Chip Conveyor |
| Y-axis Movable and Drive Servo Motor | GSK | |
| Spindle | Oil Bath Automatic Feeder | |
| Spindle Bearings | Automatic Receiver | |
| Ball Screw Bearings | NACHI | Single-Part Automatic Feeder |
| Linear Guides |
X Axis: 45 Roller Z Axis: 45 Roller |
Robotic Arm |
| Ball Screws |
X Axis: 4010 Z Axis: 4010 |
Tool Post |
| Hollow Rotary Cylinder | Power System | |
| Hollow Hydraulic Chuck | Manual HYdraulic Tailstock | |
| Vertical Y-Axis Power Turret | Y80H-12T |
2 power tool holders at 0° and 2 at 90°, 2 boring tool holders, 2 radial tool holders, and 1 axial tool holder. |
| Automatic Lubrication System | ||
| Cooling System | ||
| Heat Exchanger | ||
| Alarm Light | ||
| Electrical Components | ||
| Technical Manual |
