Premium Model
TX500LY Power Turret with Tailstock Turn-Mill Machining Center (With Y-Axis)
TX500LY Power Turret with Tailstock Turn-Mill Machining Center (With Y-Axis)

- Max. Turning Length 360mm

- Spindle Bore Dia. 66mm

- 30-degree slant bed saddle structure

- Equipped with reinforced P3-class ball screws

- Z-axis adopts a configuration with six sliders

- Equipped with a hardened Y-axis power turret

Service Online:

  • Parameter
Name Parameter
Maximum Turning Diameter (Bed)  Φ520 mm
Maximum Processing Diameter (Disc)  Φ260 mm
Maximum Workpiece Length  360mm
Maximum Bar Through-hole Diameter  Φ52 mm
The Distance Between Centers 500mm
X-axis Effective Travel  210mm
Z-axis Effective Travel  420mm
Y-axis Effective Travel  100mm
X, Z-axis Rapid Traverse  20 (M/Min)
X,Y, Z-axis Servo Motor  15/8/15NM
Drive Servo Motor 17.5NM/6000rpm
Spindle Nose Type A2-6
Spindle Through-hole Diameter  Φ66 mm
Maximum Spindle Speed  4500 rpm
Spindle Motor Power  11 Kw
Chuck and Rotary Cylinder Spec  8 inches
X, Z-axis Positioning Accuracy  ±0.004mm
X, Z-axis Re-positioning Accuracy  ±0.002mm
Tailstock Sleeve Specification MT-5
Tailstock Sleeve Travel  100mm
Tailstock Movement Saddle Driven, Hydraulic Lock
Tool Holder Specification □25*25
Power Tool Turret Specifications MBT55
Tool Holder Opposite Side Dimension 330
Boring Bar Specification  Φ32
Turret  12 Positions
Bed Structure Type 30°Integral Slant Bed
Dimensions (L×W×H)  2560*1700*2050 mm
Weight  4600kg
VIEW MORE
  • Product pictures
  • Configuration
Standard Accessory Remarks Optional Accessories
CNC System GSK Control & Drive/Electrical
Servo Main Motor GSK11Kw Hydraulic System/Spindle/Tool Post
X, Z-axis Servo Motors GSK15Nm Automatic Chip Conveyor
Y-axis Movable and Drive Servo Motor GSK
Spindle Oil Bath Automatic Feeder
Spindle Bearings Automatic Receiver
Ball Screw Bearings NACHI Single-Part Automatic Feeder
Linear Guides X Axis: 35 Roller
Z Axis: 35 Roller
Robotic Arm
Ball Screws X Axis:3210
Z Axis: 3210
Tool Post
Hollow Rotary Cylinder Power System
Hollow Hydraulic Chuck Manual HYdraulic Tailstock

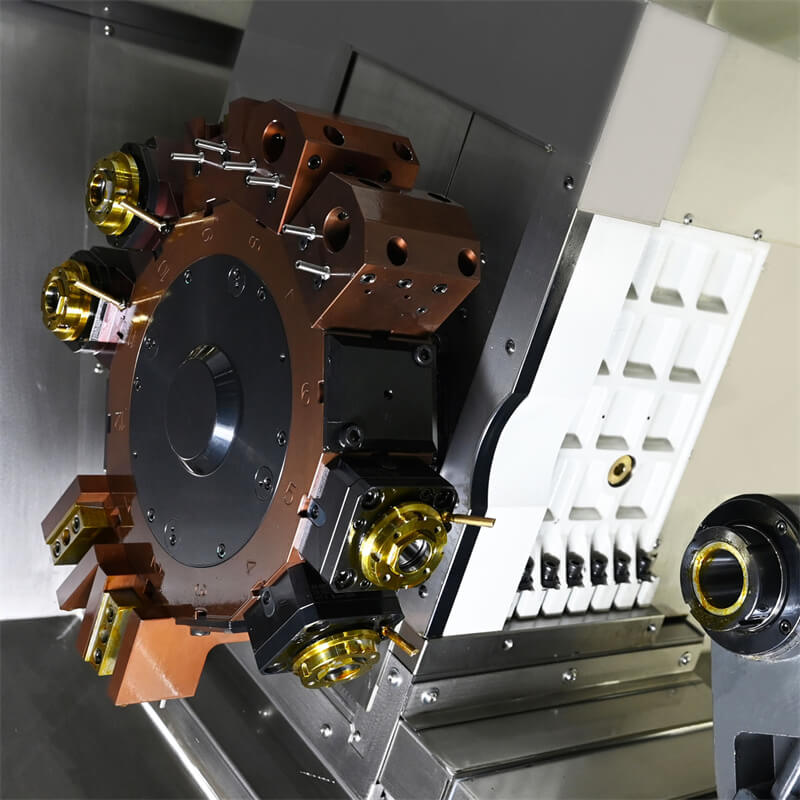

Vertical Y-Axis Power Turret Y80-12T 2 power tool holders at 0° and 2 at 90°,
2 boring tool holders,
2 radial tool holders, and
1 axial tool holder.
Automatic Lubrication System
Cooling System
Heat Exchanger
Alarm Light
Electrical Components
Technical Manual
