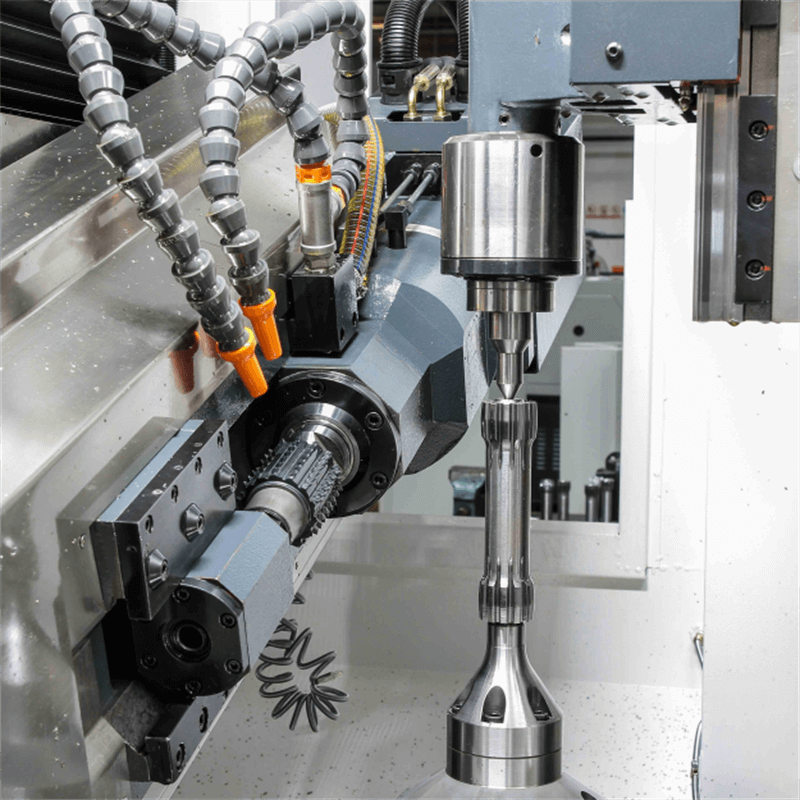

CNC Vertical Gear Hobbing
G150A Vertical Gear Hobbing
- Max Processing Module of 3mm
- Tool Spindle Max Speed of 2000r/min
- 7-Axis Control with 4-Axis Simultaneous Motion
- Temperature-Controlled Cooling System (Oil Cooler)
- Precision Ball Screws and High-Rigidity Linear Roller Guides
Service Online:
|
Item
|
Specification (Unit)
|
|
Maximum Workpiece Diameter
|
∅150 (∅200) mm
|
|
Maximum Workpiece Modulus
|
3 mm
|
|
Maximum Stroke of X Axis
|
155 mm
|
|
Maximum Stroke of Y Axis
|
100 mm
|
|
Maximum Stroke of Z Axis
|
250 mm
|
|
Range of Teeth Processed
|
3～750 teeth
|
|
Wheel Holder Rotational Angle
|
±45 degrees
|
|
Wheel Shaft Specifications
|
∅10, ∅13, ∅16, ∅22, ∅27 mm
|
|
Maximum Wheel Specifications
|
∅100×100 mm
|
|
Wheel Spindle Taper Type
|
BT30
|
|
Rapid Movement Speed of X, Z Axes
|
10 m/min
|
|
Workpiece Spindle (Gear Ratio 5:1)
|
Rated Torque: 55 N.m
|
|
|
Max Speed: 400 r/min
|
|
Wheel Spindle Motor
|
Rated Torque: 27 N.m
|
|
|
Max Speed: 2000 r/min
|
|
Total Power Capacity of Machine
|
14 KVA
|
|
Air Source Requirements
|
Pressure: 0.5～0.7 MPa
|
|
|
Flow Rate: 200 L/min
|
|
Main Unit Packaging Dimensions
|
2740×2300×2750 mm
|
|
Machine Net/Gross Weight
|
6000/6500 kg
|
VIEW MORE
%2
|
Standard Accessories
|
Optional Accessories
|
|
CNC Gear Hobbing Machine (Main Unit)
|
Morse Tool Holder
|
|
Magnetic Roller Chip Conveyor
|
Secondary Tool Setting Device
|
|
Hydraulic Station
|
Secondary Tool Setting Device Control System
|
|
Wedge
|
Tool Air Cooling Device
|
|
Leveling Screw
|
Deburring Device
|
|
Hex Thin Nut
|
Elastic Tailstock
|
|
Technical manual
|
Rotary Tailstock
|
|
|
Hydraulic Fixture Drive Device
|
|
|
External Tool Calibration Device
|
