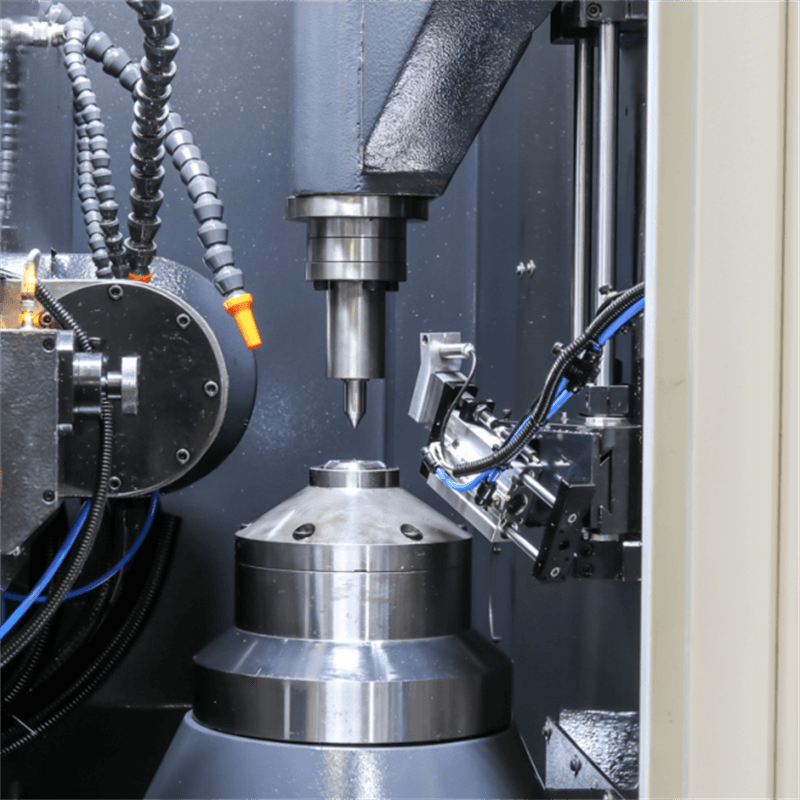

CNC Vertical Gear Hobbing
G200 Vertical Gear Hobbing
- Max Processing Module of 4mm
- Tool Spindle Max Speed of 3500r/min
- 7-Axis Control with 4-Axis Simultaneous Motion
- Temperature-Controlled Cooling System (Oil Cooler)
- Precision Ball Screws and High-Rigidity Linear Roller Guides
Service Online:
|
Item
|
Specification (Unit)
|
|
Maximum Workpiece Diameter
|
∅200 mm
|
|
Maximum Workpiece Modulus
|
4 mm
|
|
Maximum Stroke of X Axis
|
150 mm
|
|
Maximum Stroke of Y Axis
|
220 mm
|
|
Maximum Stroke of Z Axis
|
350 mm
|
|
Range of Teeth Processed
|
3～750 teeth
|
|
Wheel Holder Rotational Angle
|
±45 degrees
|
|
Wheel Shaft Specifications
|
∅13, ∅16, ∅22, ∅27,∅32 mm
|
|
Maximum Wheel Specifications
|
∅110×220 mm
|
|
Type of Hobbing Spindle Taper Bore
|
∅40（1:10）
|
|
Rapid Movement Speed of X, Z Axes
|
10 m/min
|
|
Workpiece Spindle
|
Rated Torque: 191 N.m
|
|
|
Max Speed: 500 r/min
|
|
Wheel Spindle Motor
|
Rated Torque: 125 N.m
|
|
|
Max Speed: 3500 r/min
|
|
Total Power Capacity of Machine
|
40 KVA
|
|
Air Source Requirements
|
Pressure: 0.5～0.7 MPa
|
|
|
Flow Rate: 200 L/min
|
|
Main Unit Packaging Dimensions
|
2700×3745×3100 mm
|
|
Machine Net/Gross Weight
|
10T
|
VIEW MORE
|
Standard Accessories
|
Optional Accessories
|
|
CNC Gear Hobbing Machine (Main Unit)
|
Secondary Tool Setting Device
|
|
Magnetic Chip Conveyor
|
Oil Mist Separator
|
|
Hydraulic Station
|
Workpiece Hydraulic Clamping Device
|
|
Leveling Pads
|
Movable Rotary Center Assembly
|
|
Oil Cooler
|
Half-Missing Rotary Center
|
|
Pneumatic System
|
Elastic Rotary Center
|
|
Lubrication System
|
Elastic Movable Center
|
|
|
Automatic Loading and Unloading Assembly
|
|
|
Integral Hob Cutter
|
|
|
Electrical Cabinet Air Conditioner
|
|
|
Vacuum Cleaner
|
|
|
Fixture
|
|
|
Rolling Cutter Shaft
|
