CNC Vertical Gear Hobbing

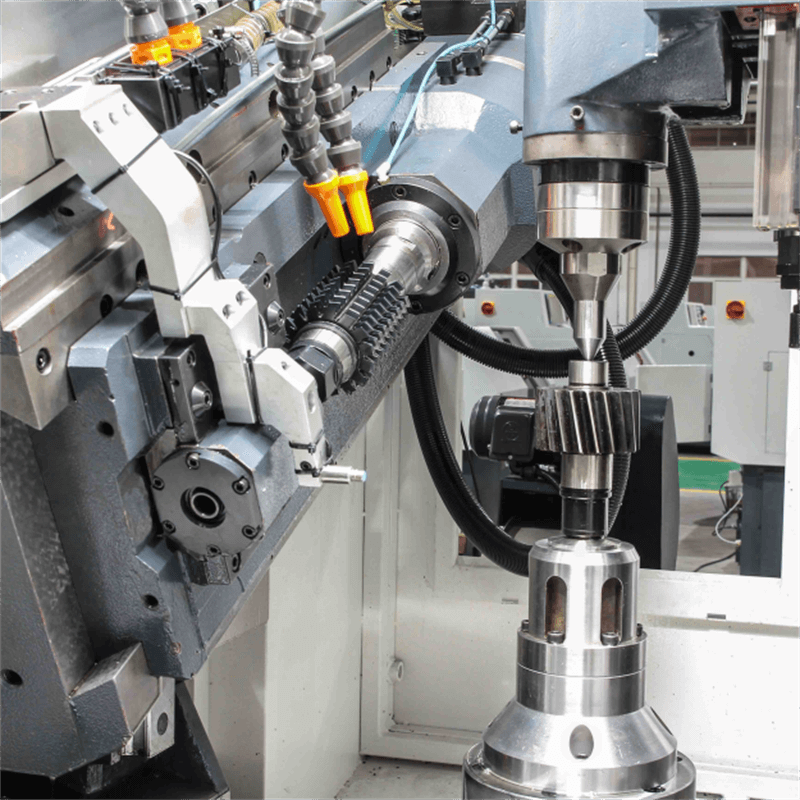

G180 Vertical Gear Hobbing
- Max Processing Module of 4mm
- Tool Spindle Max Speed of 2200r/min
- 7-Axis Control with 4-Axis Simultaneous Motion
- Temperature-Controlled Cooling System (Oil Cooler)
- Precision Ball Screws and High-Rigidity Linear Roller Guides
Service Online:
|
Item
|
Specification (Unit)
|
|
Maximum Workpiece Diameter
|
∅180 (∅250) mm
|
|
Maximum Workpiece Modulus
|
4 mm
|
|
Maximum Stroke of X Axis
|
185 mm
|
|
Maximum Stroke of Y Axis
|
150 mm
|
|
Maximum Stroke of Z Axis
|
300 mm
|
|
Range of Teeth Processed
|
3～750 teeth
|
|
Wheel Holder Rotational Angle
|
±45 degrees
|
|
Wheel Shaft Specifications
|
∅13, ∅16, ∅22, ∅27,∅32 mm
|
|
Maximum Wheel Specifications
|
∅110×160 mm
|
|
Type of Hobbing Spindle Taper Bore
|
7:24
|
|
Rapid Movement Speed of X, Z Axes
|
8 m/min
|
|
Workpiece Spindle
|
Rated Torque: 80 N.m
|
|
|
Max Speed: 600 r/min
|
|
Wheel Spindle Motor
|
Rated power: 16.8 KW
|
|
|
Rated Torque: 100 N.m
|
|
|
Max Speed: 2200 r/min
|
|
Total Power Capacity of Machine
|
30 KVA
|
|
Air Source Requirements
|
Pressure: 0.5～0.7 MPa
|
|
|
Flow Rate: 200 L/min
|
|
Main Unit Packaging Dimensions
|
2300×2600×2800 mm
|
|
Machine Net/Gross Weight
|
7000/7500 kg
|
VIEW MORE
|
Standard Accessories
|
Optional Accessories
|
|
G180 Main Machine
|
Morse Taper Tool Holder
|
|
Magnetic Scraper Chip Conveyor
|
Secondary Tool Setting Device
|
|
Pneumatic System
|
Tool Air Cooling Device
|
|
Hydraulic Station
|
Deburring Device
|
|
Oil Cooler
|
Tool Shank Pre-Setting Attachment
|
|
Rotary Tailstock Assembly
|
Power Failure Protection Device
|
|
Leveling Pads
|
Electrical Cabinet Air Conditioner
|
|
Leveling Screws
|
Automatic Loading/Unloading Device
|
|
Hexagon Thin Nuts
|
Cooling Temperature Control Device
|
|
Tools and Tool Box
|
Oil Mist Separator
|
|
|
Fixture
|
|
|
Rolling Cutter Shaft
|
