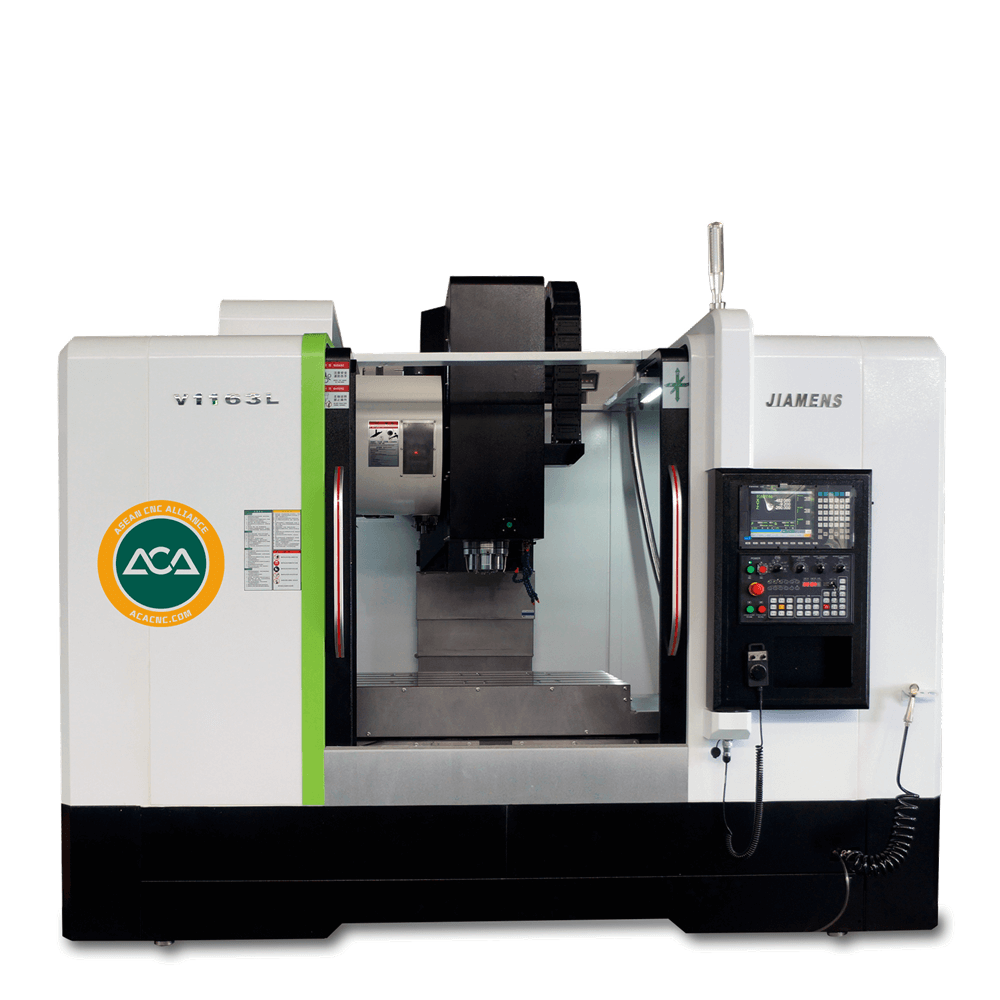

Item
|
Specification
|
|
Travel
|
|
|
X Axis (Left-Right Travel)
|
1100mm
|
|
Y Axis (Front-Back Travel)
|
650mm
|
|
Z Axis (Up-Down Travel)
|
650mm
|
|
Distance from Spindle Center to Column Guide Rail
|
680mm
|
|
Distance from Spindle Face to Worktable Surface
|
120-720mm
|
|
Worktable
|
|
|
Worktable Size
|
1200×650mm
|
|
T-Slot (Number × Size × Pitch)
|
5×18×100
|
|
Max Worktable Load
|
1000kg
|
|
Spindle
|
|
|
Spindle Taper (Model/Installation Size)
|
BT40/Φ150
|
|
Spindle Speed
|
8000 Belt rpm
|
|
Motor
|
|
|
Spindle Motor
|
β12/10000 (11-15 Kw)
|
|
X Axis Motor
|
β22/3000 (3 Kw / 20 Nm)
|
|
Y Axis Motor
|
β22/3000 (3 Kw / 20 Nm)
|
|
Z Axis Motor
|
β30/3000 (3 Kw / 27 Nm)
|
|
Automatic Tool Change System
|
|
|
Tool Magazine Type
|
Disk-Type Tool Magazine
|
|
Tool Magazine Capacity
|
24 positions
|
|
Max Tool Diameter (Full / Adjacent Empty)
|
80/150mm
|
|
Max Tool Length
|
300mm
|
|
Max Tool Weight
|
8kg
|
|
Tool Holder Drawbar Specification
|
45°
|
|
Feed Rate
|
|
|
Max Cutting Feed Rate (Three Axes)
|
10m/min
|
|
Rapid Movement (Three Axes)
|
36/36/24m/min
|
|
Accuracy
|
|
|
Positioning Accuracy
|
±0.005mm
|
|
Repositioning Accuracy
|
±0.003mm
|
|
Others
|
|
|
Machine Weight
|
6000kg
|
|
Machine Dimensions (L/W/H)
|
3.2 / 2.6 / 3m
|
|
Power Capacity
|
30Kw
|
