Premium Model
CK117 CNC Precision Swiss-Type Lathe
CK117 CNC Precision Swiss-Type Lathe
- Widely applicable across various industries
- Suitable for mass production
- Capable of threading operations
- Quick product changeover
- Perform turning cylindrical, conical, and curved surfaces features

- High transmission efficiency

Service Online:

  • Parameter
Specification CK117
Maximum Workpiece Diameter Φ7mm
Maximum Workpiece Length 66mm
Maximum Spindle Speed 9000 r/min
Maximum Drilling Diameter for Attachments Copper material Φ4mm / Steel material Φ3mm
Spindle Power 1 kW
CNC System Dedicated CNC system
Tool Quantity
- Balance Tool ×2: NO1, NO2
- Vertical Tool ×3: NO3, NO4, NO5
- End Face Drilling Fixture ×2 (depending on attachment type)
Maximum Tool Holder Feed Speed 16 m/min
Z-Axis Rapid Movement 15 m/min
Repeat Positioning Accuracy 0.007 mm
Feed Motor Rated Power 400 W
Tailstock Motor Rated Power 400 W
Cooling Motor Rated Power 180 W
Weight ≤660 kg
Total Electrical Power 5 KVA
Dimensions (L × W × H) 1555 × 1256 × 1600 mm
VIEW MORE

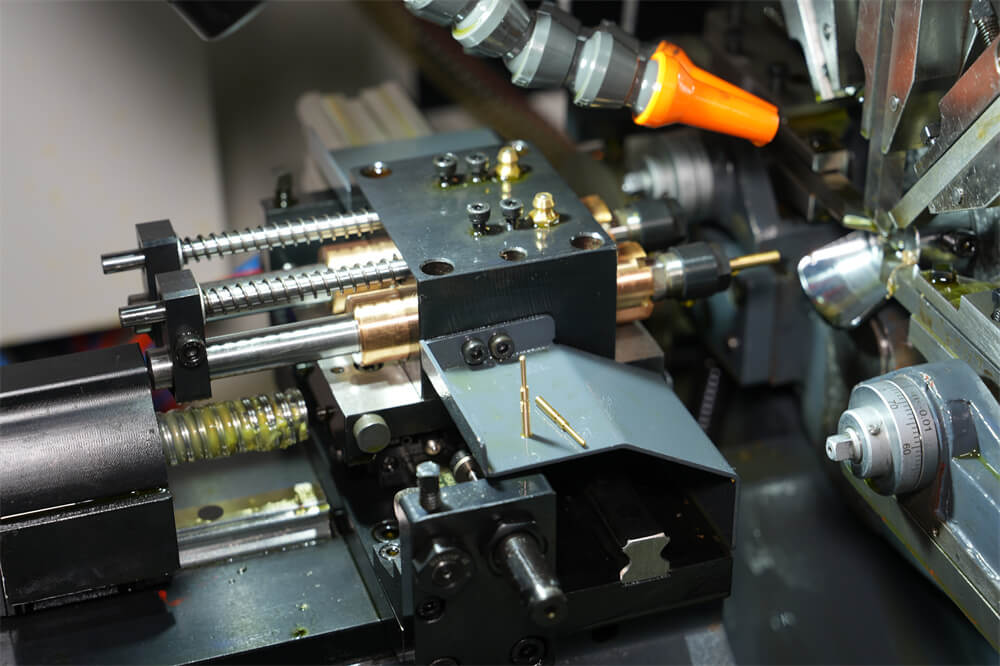

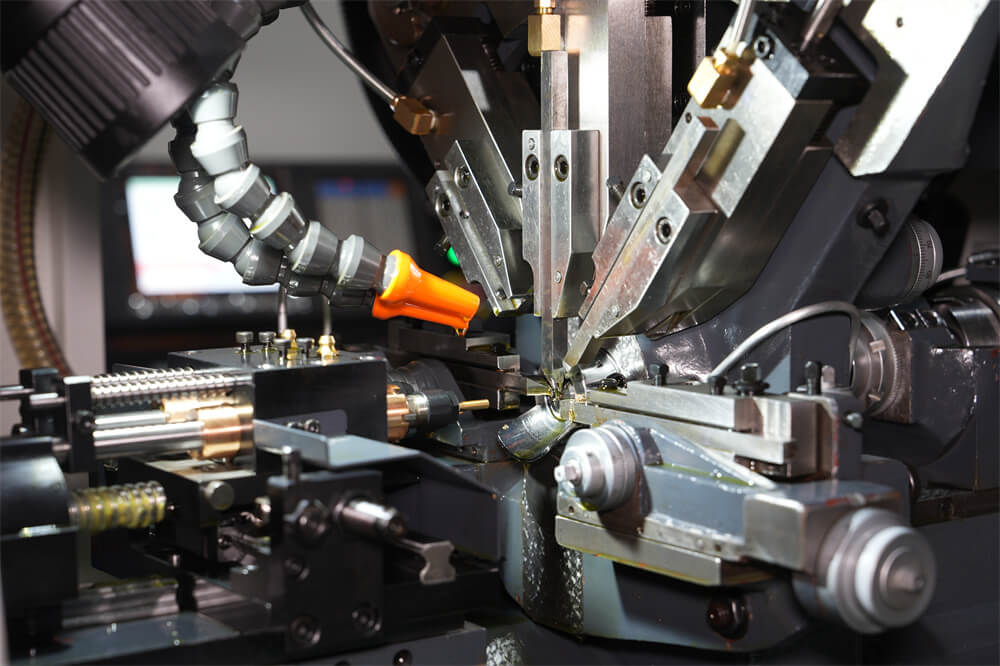

  • Product pictures
  • Configuration
Standard Accessories
Special Tools
Nameplate
Pneumatic System
Cooling System
Lubrication System
Machine Lighting
Machine Three-Color Alarm Light
Optional Accessories
Two-Axis Drilling Attachment Performs end-face drilling, reaming, and tapping.
Three-Axis Drilling Attachment Performs end-face drilling, reaming, and tapping.
Part Receiving Attachment Enables automatic part receiving.
Power Tool Enables radial drilling and reaming.
