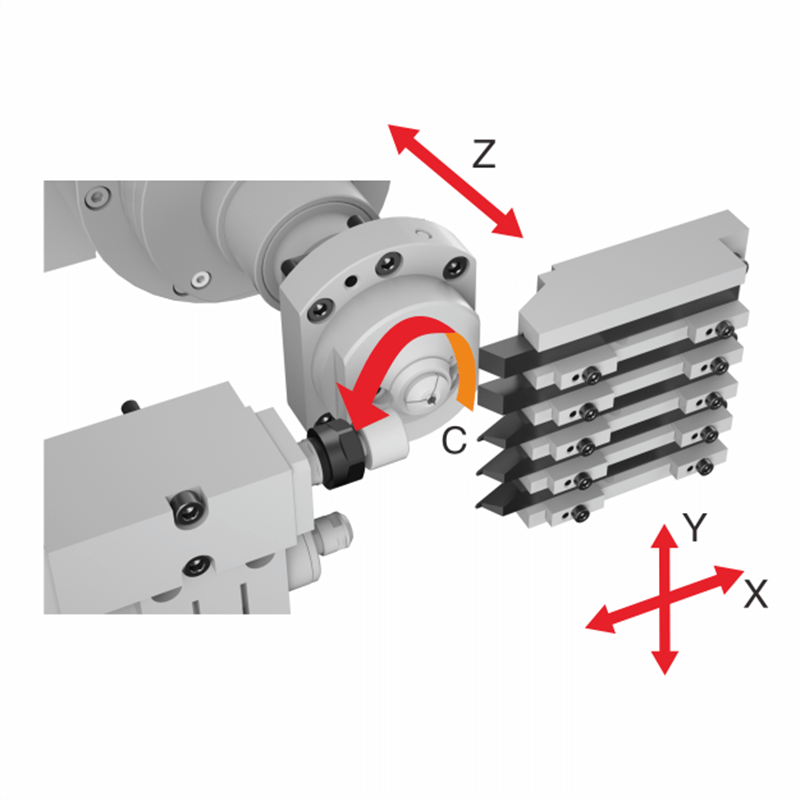

- Equipped with 3 linear movement axes
- 2 independent tool systems
- Ergonomic design
- High-precision built-in motorized spindle design| Item | Specification |
| Maximum Machining Bar Diameter | Φ1mm |
| Maximum Machining Part Length | 30mm |
| Maximum Spindle Speed | 16000 r/min |
| Spindle Through-Hole Diameter | Φ10mm |
| Spindle Center Height | 1130mm |
| Spindle Motor Power | 0.5/0.75kW （Built-in spindle motor） |
| External Machining Tools (Turning Tools) | 5 pcs |
| Radial Power Tools | 2 pcs |
| Turning Tool Holder Size | □8×100~120mm |
| Mechanical Power Tool Max Speed | 8000 r/min |
| High-Speed Power Tool Max Speed | 60000 r/min |
| Control Mode | Semi-closed loop |
| Detection Element | Servo motor with built-in encoder |
| Minimum Linear Axis Setting Unit | 0.0001mm |
| Linear Axis Rapid Movement Speed | 20 m/min |
| Linear Axis Servo Motor Power | 0.5kW |
| Linear Axis Repeatability Accuracy | 0.002mm |
| Radial Runout of Spindle Locating Hole for Push Sleeve | 0.002mm |
| Cooling Motor Power | 0.15kW |
| Power Input Capacity | 6kVA |
| Air Source Pressure and Flow | 0.5MPa, 300 N/min (max) |
| Machine Weight | ~1000kg |
| Machine Dimensions | 1880×950×1750mm |
| Standard Accessories | |
| Specialized Tools | |
| Nameplate | |
| Pneumatic System | |
| Cooling System | |
| Spindle Internal Cooling | |
| Lubrication System | |
| Spindle C-axis Function | |
| Spindle Front Loading Device | |
| Fixed Centering Frame | |
| Power Tool Drive System | |
| Power Tools | |
| Transformer | |
| Leakage Protection | |
| LED Lighting | |
| Machine Three-color Alarm Lights | |
| Optional Accessories | |
| Material Feed Machine | Automatically feeds material; can switch to the next rod when one is used up. |
| High-Frequency Power Tools | Optional 60,000 r/min high-speed power tools to meet the high-efficiency processing requirements of parts. |
| Front Drilling Fixture | Capable of performing front drilling, tapping, and boring operations. |
