- FANUC 0i-TF Controller System
- Adopts 32m/min rapid traverse speed.
- Spindle Bore Dia.15mm
- Full-travel rotating center support.
- Equipped with a rotatable control panel for better operability.

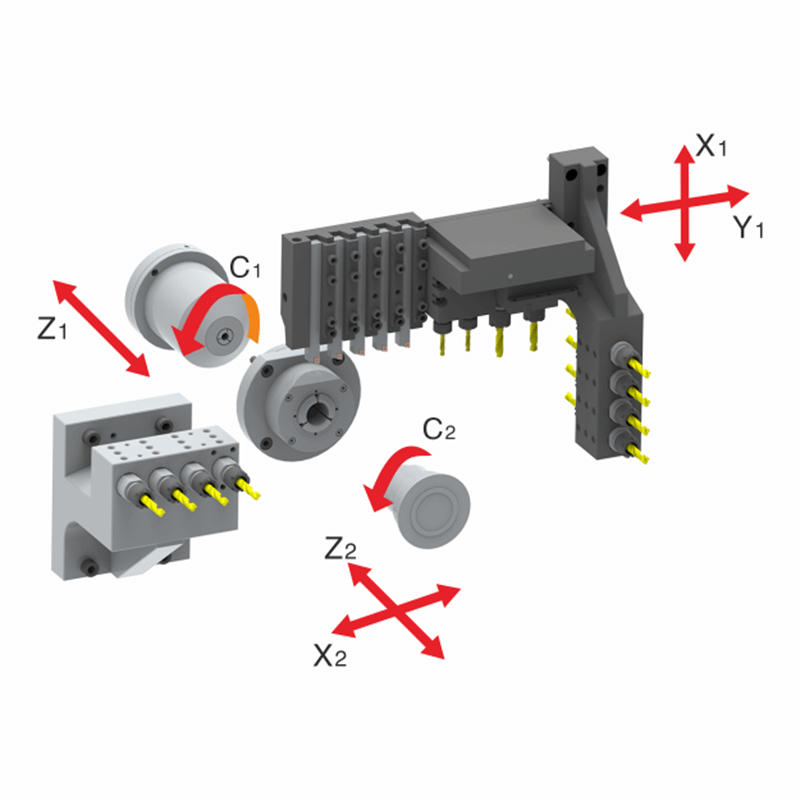

- Spindle&Sub-Spindle comes standard with C-axis functionality.
| Item | CKC1112 V |
| CNC System | Standard: FANUC, Optional: SYNTEC,GSK，HNC |
| Machining Range | |
| Maximum Machining Diameter | Φ12mm |
| Maximum Machining Part Length | 200mm/clamp |
| Bar diameter | 2.5mm/clamp (without steady rest) |
| Maximum Front Sub-Spindle Feed Length | 80mm |
| Spindle | |
| Spindle Power | 2.2/3.7kW (Built-in spindle motor) |
| Sub-Spindle Power | 2.2/3.7kW (Built-in spindle motor) |
| Maximum Spindle Through-Hole Diameter | Φ15mm |
| C1/C2 Axis Indexing | 0.001° |
| Maximum Spindle Speed | 10000r/min |
| Maximum Sub-Spindle Speed | 10000r/min |
| Maximum Clamp Dia of Sub-Spindle | Φ12mm |
| Maximum Through Hole Diameter of Sub-Spindle | Φ15mm |
| Maximum Spindle Travel | |
| With Guide Bushing | 200mm/clamp |
| Without Guide Bushing | 30mm/clamp (Bar Dia. 2.5 mm/clamp) |
| Tooling | |
| Maximum Tooling Capacity | 21 tools |
| Spindle-End Tools | |
| Turning Tools (Quantity × Size) | 5×□10mm |
| Side Milling Tools | 2×ER11 and 2×ER16 |
| Maximum Drilling Diameter | Φ7mm |
| Maximum Tapping Size | M6 |
| Live Tool Speed | ER11: 6000r/min, ER16: 4000r/min |
| Live Tool Power | 0.75kW |
| End Face Fixed Tools | |
| Quantity × Size | 4×ER11 |
| Maximum Drilling Diameter | Φ7mm |
| Maximum Tapping Size | M6 |
| Sub-Spindle End Tools | |
| Shared Tools | |
| Quantity × Specification | 4×ER11 |
| Maximum Drilling Diameter | Φ7mm |
| Maximum Thread Tapping | M6 |
| Independent Tools | |
| Quantity × Specification | 4×ER11 |
| Maximum Drilling Diameter | Φ7mm |
| Maximum Thread Tapping | M6 |
| Others | |
| Rapid Feed Speed | 32m/min |
| Feed Motor Power | 0.75kW |
| Minimum Linear Axis Setting Unit | 0.001mm |
| Cutting Oil Pump Motor Power | 0.35kW |
| Lubrication Oil Pump Motor Power | 4W |
| Cutting Oil Tank Volume | 200L |
| Power Input Capacity | 12 kVA |
| Air Source Pressure & Flow | 0.5MPa, 300Nl/min (max) |
| Machine Weight | ~2600kg |
| Machine Dimensions (L×W×H) | 2540×1320×1830mm |
| Standard Accessories | |
| FANUC CNC System | |
| Nameplate | |
| Transformer | |
| Spindle and Sub-Spindle Air Seal | |
| Pneumatic System | |
| Cooling System | |
| Lubrication System | |
| Sub-Spindle Material Feeding Device | |
| Rotary Steady Rest Drive Device | |
| Rotary Steady Rest | |
| Live Tool Drive Device | |
| Spindle and Sub-Spindle C-Axis Function | |
| Leakage Protection | |
| LED Lighting | |
| Machine Tool Three-Color Alarm Light | |
| Parts Transfer Device | |
| Optional Accessories | |
| Name | Remarks |
| Material Feeder | Enables automatic feeding; when one bar is finished, it automatically switches to the next. |
| Flow Detection Device | Used to check if the coolant oil flow is normal. |
| Chip Conveyor | Automatically collects waste chips during the machining process. |
| Rear-Powered Tool Drive Device | Enables milling on the backside of the workpiece. |
| Medium-High Pressure Cooling System | Used for machining difficult parts, improving cooling and chip removal efficiency. Typically offers 70 or 100 bar pressure options. |
| Oil Mist Purification Device | Removes oil mist generated in the machining area, usually used with high-pressure systems. |
| Internal Cooling System for Spindle and Sub-Spindle | Selected based on different operating environments and requirements. |
| Cut-Off Tool Breakage Detection | Primarily monitors the status of the cut-off tool to prevent damage to other tools and the machine. |
| Sub-Spindle Rear End Unloading Device |
Primarily used for collecting long parts, capable of collecting parts with lengths ranging from 80 to 1000 mm (customized according to the user's part specifications). |
