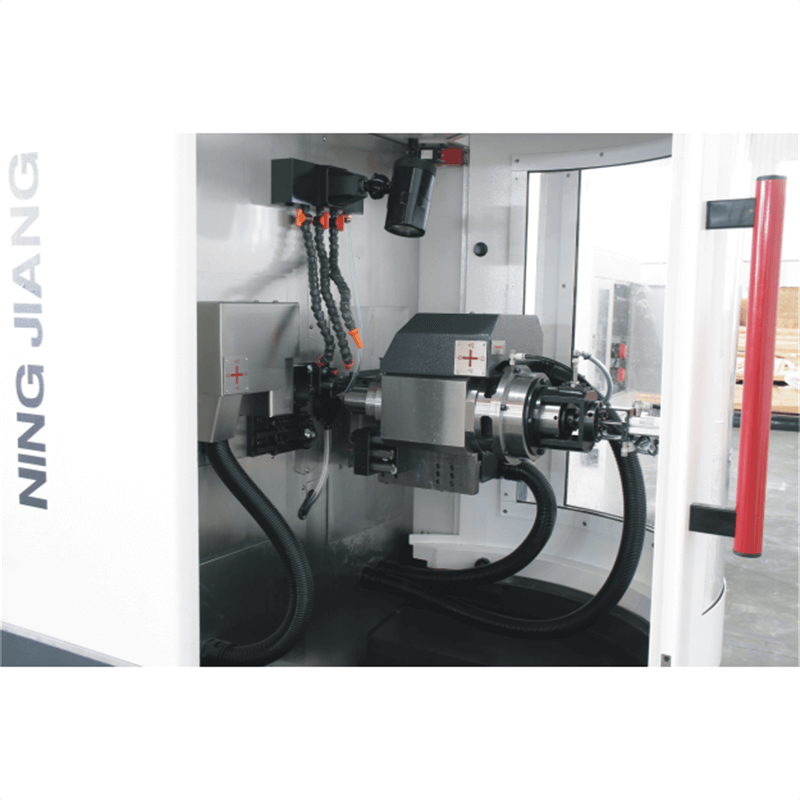

- FANUC built-in spindle motor
- 6 linear movement axes
- 2 independent tool systems
- maximum spindle speed of 16,000 rpm| Standard Accessories | |
| Nameplates | |
| Pneumatic System | |
| Cooling System | |
| Spindle Internal Cooling | |
| Lubrication System | |
| Fixed Centering Support | |
| Main/Secondary Spindle C-Axis Function | |
| Powered Tool Drive Unit | |
| Powered Tools | |
| Transformer | |
| Leakage Protection | |
| LED Lighting | |
| Machine Tool Three-Color Alarm Light | |
| Optional Accessories | |
| Material Feed Machine | Automatically feeds material; can switch to the next rod when one is used up. |
| High-Frequency Power Tools | Optional 60,000 r/min high-speed power tools to meet the high-efficiency processing requirements of parts. |
| Polygon Milling Attachment | Enables polygonal turning operations. |
| Gear Hobbing Attachment | Facilitates one-pass machining of very small module gears. |
| Item | Specification |
| Maximum Machining Bar Diameter | Φ4mm |
| Maximum Machining Part Length | 30mm |
| Maximum Spindle Speed | 16000 r/min |
| Spindle Through-Hole Diameter | Φ10mm |
| Spindle Center Height | 1150mm |
| Spindle Motor Power | 0.75/1.1 kW （Built-in spindle motor） |
| External Cylindrical Machining Tools (Turning Tools) | 4 pcs |
| Radial Power Tools | 2 pcs |
| Front Hole Machining Tools | 3 pcs |
| Back Machining Tools: 2 pieces | 2 pcs |
| Turning Tool Holder Size | □8×100~120mm |
| Maximum Spindle Speed of Sub-Spindle | 16000 r/min |
| Sub-Spindle Motor Power | 0.75/1.1 Kw (Servo motor with built-in encoder) |
| All Axis Rapid Movement Speed | 20 m/min |
| X1.Z1,Z2-Axis Servo Motor Power | 0.4kW |
| X2.Y1,Y2-Axis Servo Motor Power | 0.5kW |
| All Axis Repeatability Accuracy | 0.002mm |
| Radial Runout of Spindle Sleeve Mounting Hole | 0.004mm |
| Cooling Motor Power | 0.15kW |
| Power Input Capacity | 5kVA |
| Air Source Pressure and Flow | 0.6MPa, 300 N/min (max) |
| Machine Weight | ~1000kg |
| Machine Dimensions | 1875×800×1710mm |
